later reference, however there is no way of entering them into the EMS so it is not
required.
 Repeat this procedure for the other fuel tank.
CAUTION
There is often a degree of friction within the gauge sender. Tap gently with a finger after adding
fuel to maximise accuracy of reading.
WARNING
Before removing clamps on the fuel line make sure all fuel lines are connected.
On removal of clamps check that the fuel lines are not damaged and return to their original shape

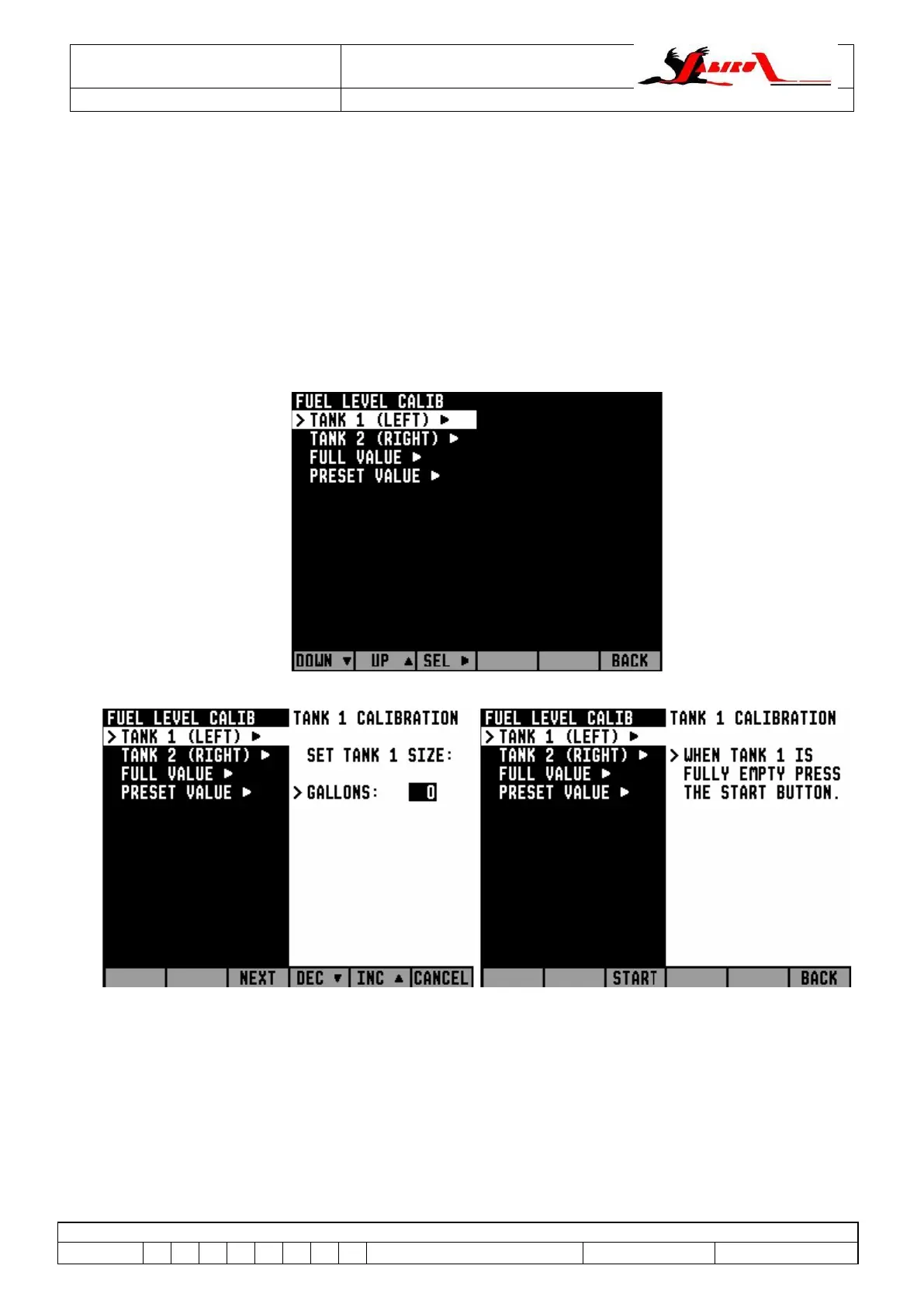

Figure 32 – EMS Calibration Screen #1 (all J-Series, n/a J120)
Figure 33 – EMS Calibration Screens #2 and #3 (all J-Series, n/a J120)
