Aircraft Technical Manual

Jabiru Aircraft Pty Ltd

JTM001-5

J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants

This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.

ISSUE

Dated: 29th October 2014

Issued By: AS

Page: 244 of 298

WARNING

When removing fascia it is common for some wires connecting to switches on the bottom of

the panel to be dislodged. Ensure all wires are securely re-connected before fitting fascia.

Take care not to strain, bend or damage any wires or lines.

While working within the instrument panel ensure that the starter motor system or main

battery is disconnected so that the motor cannot be started accidentally via a short or similar.

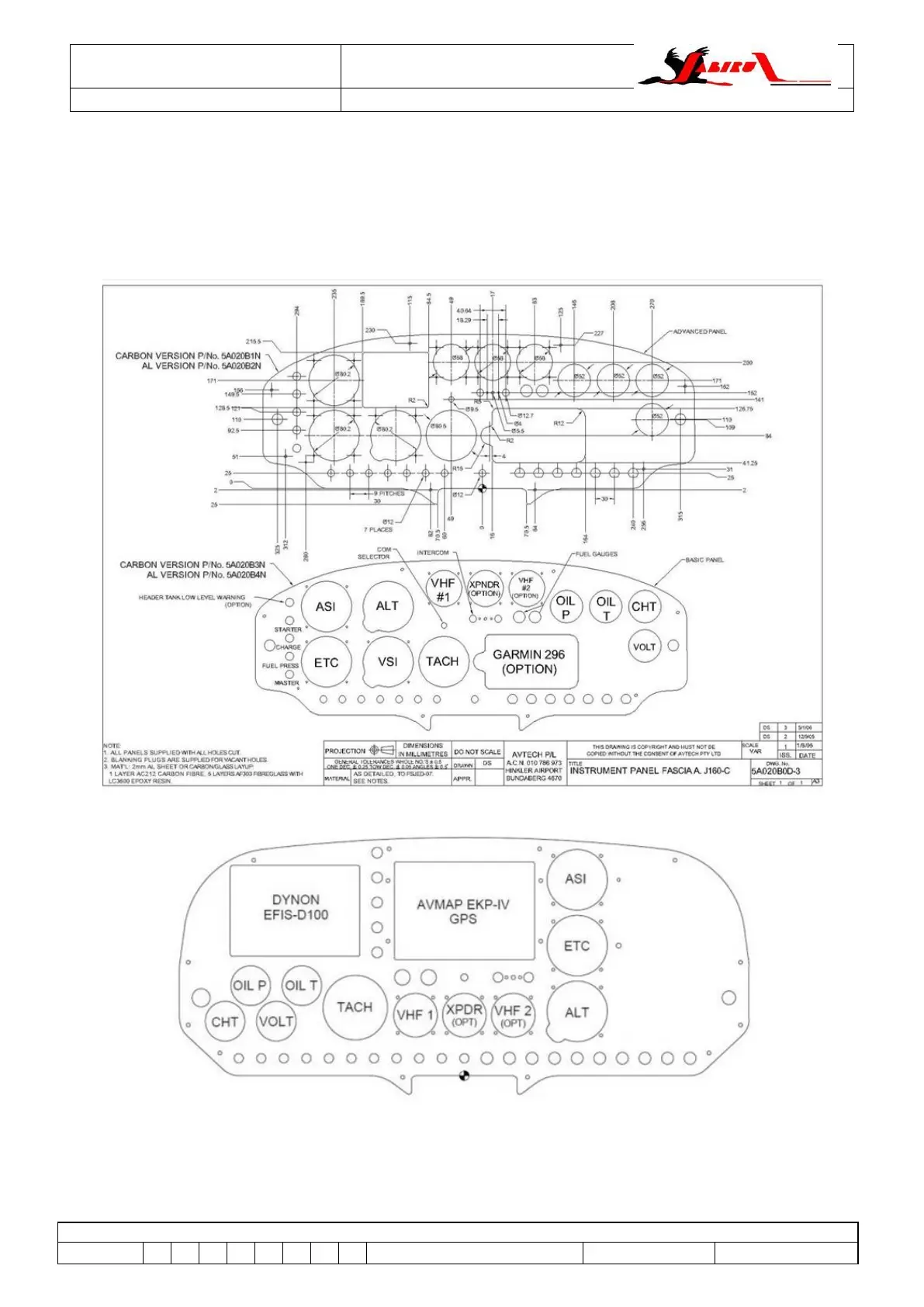

Figure 182 – Instrument Panel Layout Type 1 (all J-Series)

Figure 183 – Instrument Panel Layout Type 2 (all J-Series)
