Jabiru j430 - Placards General

Aircraft Technical Manual
Jabiru Aircraft Pty Ltd
JTM001-5
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE
1
2
3
4
5
Dated: 29th October 2014
Issued By: AS
Page: 277 of 298

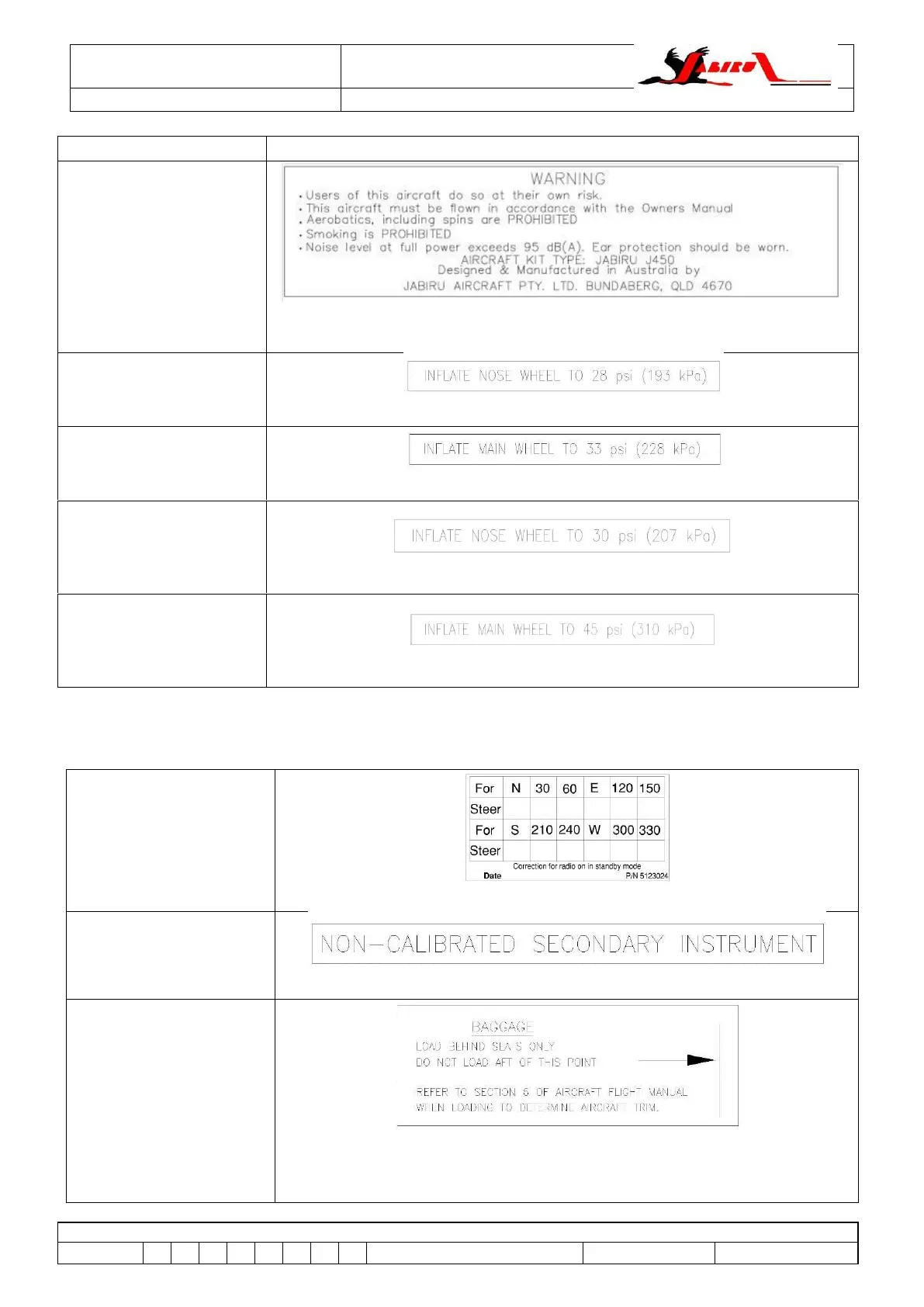

Decal Detail
Preview
Warning Placard
J450
P/No. 5A002A0D
Fitted above windscreen in front of wing carry through beam across to the
left side.
Nose Wheel Inflation.
J160-C, J160-D, J120-C
P/No. 5A017A0D
Attach to left side of nose wheel spat.
Main Wheel Inflation.
J160-C, J160-D, J120-C
P/No. 5A018A0D
Attach to outsides of main wheel spats
Nose Wheel Inflation.
J170-C, J170-D, J230-C,
J230-D.
P/No. 5A062A0D
Attach to left side of nose wheel spat.
Main Wheel Inflation.
J170-C, J170-D, J230-C,
J230-D.
P/No. 5A061A0D
Attach to outsides of main wheel spats
16.2 Placards General (all J-Series)
Table 16-2 – General Decals
Compass Card
P/No. 5123024
Fit in compass card holder attached to compass.
EFIS Warning
P/No. 5A042A0D
1 OFF
Fit to upper frame of DYNON EFIS if installed
Baggage
P/No. 5111154
J120 / J16 families: fit to inside of fuselage on right side just below rear
quarter window. Locate vertical line in line with rear of baggage shelf.
J200 Families: Position as noted in Flight Manual.
