Aircraft Technical Manual

Jabiru Aircraft Pty Ltd

JTM001-5

J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants

This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.

ISSUE

Dated: 29th October 2014

Issued By: AS

Page: 67 of 298

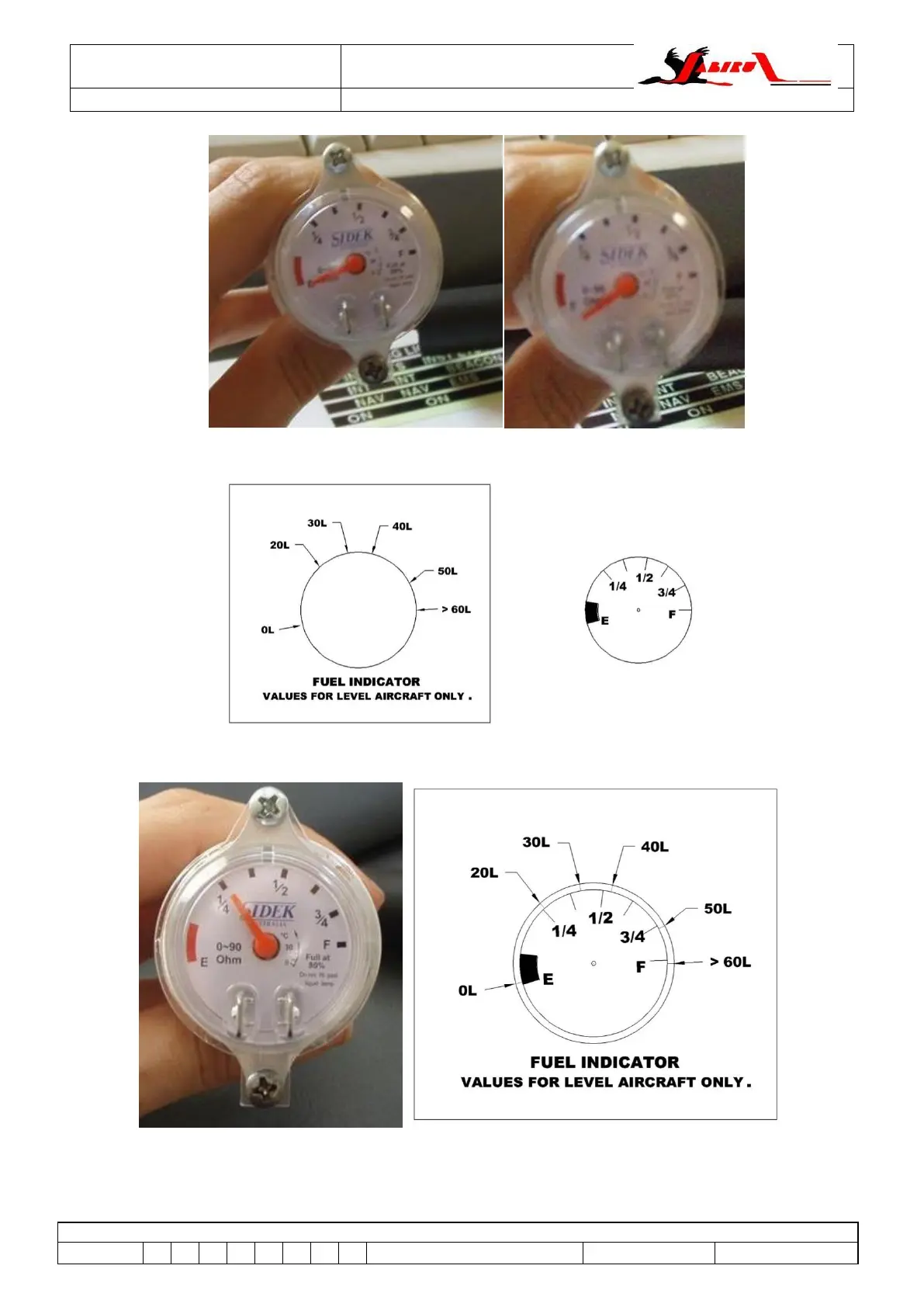

Figure 27 – Max Empty (Left) and Acceptable Empty (Right) Indications (all J-Series, n/a J120)

Figure 28 - Fuel Gauge Calibration Decal Parts (all J-Series, n/a J120)

Figure 29 – 20L Indication on Sender & Decal to Match (all J-Series, n/a J120)
