Jabiru j430 - Hydraulic Brake Lines; Wheel Brakes

Aircraft Technical Manual
Jabiru Aircraft Pty Ltd
JTM001-5
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE
1
2
3
4
5
Dated: 29th October 2014
Issued By: AS
Page: 134 of 298

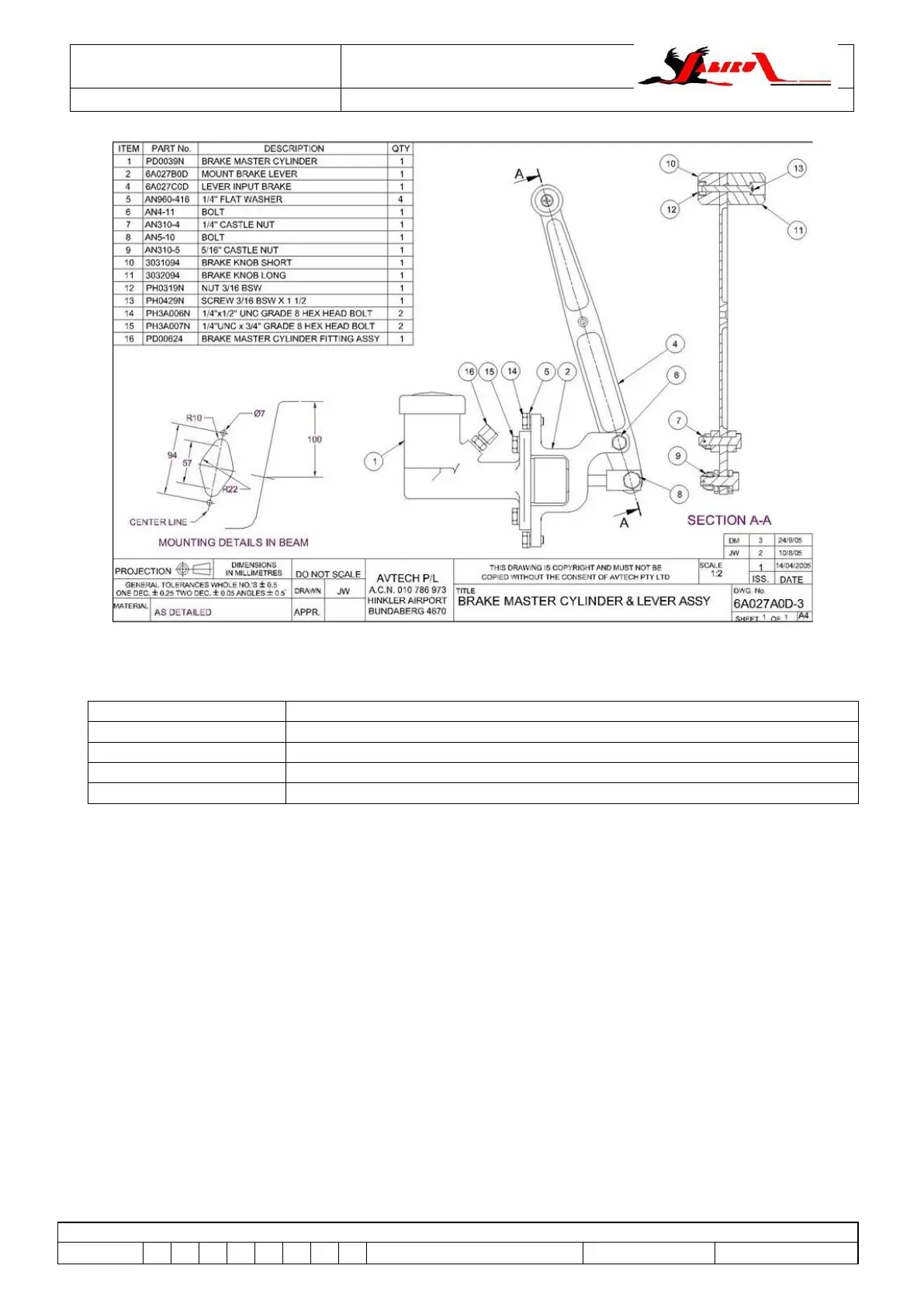

Figure 83 – Brake Master Cylinder & Lever Assy (Type 2)
6.42 Hydraulic Brake Lines
Required Tools:
Screwdrivers
Parts and Material:
Replacement brake hoses (if required)
Type of Maintenance:
Line Maintenance
Level of Certification:
L2 or LAME (A&P or LSA Repairman / Maintenance)
Return to Service:
L2 or LAME (A&P or LSA Repairman / Maintenance)
6.42.1 Description
 Jabiru Aircraft use flexible black nylon brake hoses. On most models they are connected to the
master cylinder via a tee-piece – typically located in the main undercarriage channel under the belly
of the aircraft.
6.42.2 Removal Repair & Installation
 Repair is limited to replacement.
6.43 Wheel Brakes (all J-Series)
6.43.1 Description
 The Wheel Brake Assemblies consist of a disc which is attached to the main wheel hub with through-
bolts and a floating brake caliper assembly.
 Depending on model there may be 1 or 2 calipers fitted to each wheel.
 Older aircraft use a slightly different caliper as shown in Figure 86. Maintenance, inspection & repair
of this system is the same as for later variants.
