6D Aileron Control System
6.50 Aileron Control System (all J-Series)
6.50.1 Description
 The general arrangement of the aileron system used in Jabiru Aircraft is shown in drawings below:
Figure 87 and Figure 88.
 The aileron control system is comprised of a control column and two enclosed push-pull cables fitted
with spherical bearings.
 Due to space constraints not all different variations are shown herein. When ordering spare parts
provide as must detail as possible – part description, aircraft model, serial number etc to Jabiru to
ensure accurate part identification.
WARNING
All spherical bearings must be fitted with a large washer on the outside of the through-bolt to
prevent the bearing case and cable releasing in the event of a bearing failure.

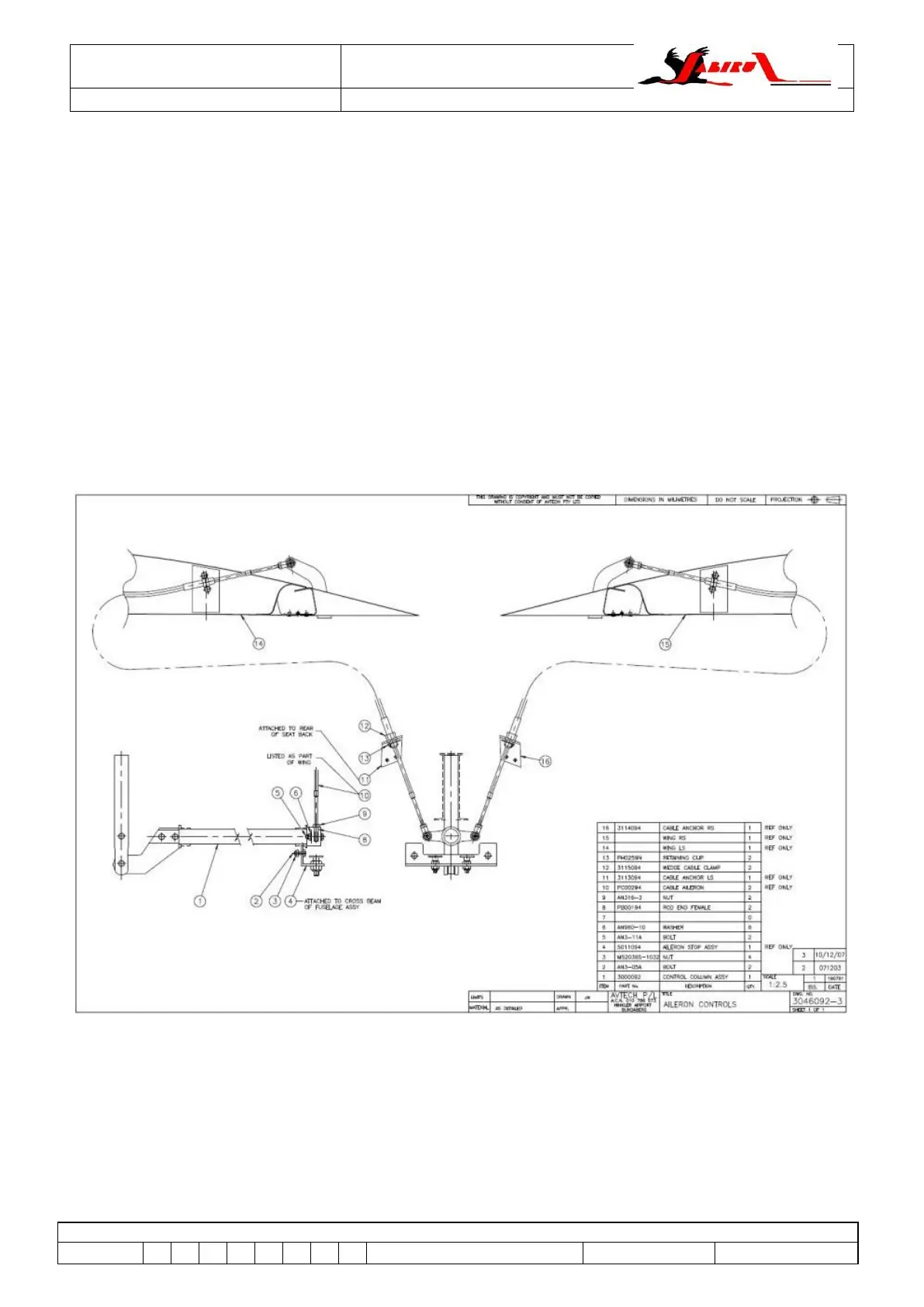

Figure 87 – Aileron Controls – Type 1
