8.2.4 Installation
Required Tools:
Screwdrivers
Parts and Material:
Fuel line springs, clips, Zip ties (if required)
Type of Maintenance:
Line Maintenance
Level of Certification:
L2 or LAME (A&P or LSA Repairman / Maintenance)
Return to Service:
L2 or LAME (A&P or LSA Repairman / Maintenance)
 Care must be taken when re-routing lines to avoid bending the hose around too sharp a corner – the
flexible hose used can crimp itself off if bent too sharply. If a sharp bend is unavoidable a spring may
be threaded over the line to prevent it crimping. Springs must be a snug fit on the hose & are
available from Jabiru Aircraft if required. Figure 169 refers.
 Note that in some cases it may be necessary to shorten or lengthen lines to prevent “U’s” or tight
bends.
 For installation, reverse removal procedure given above.

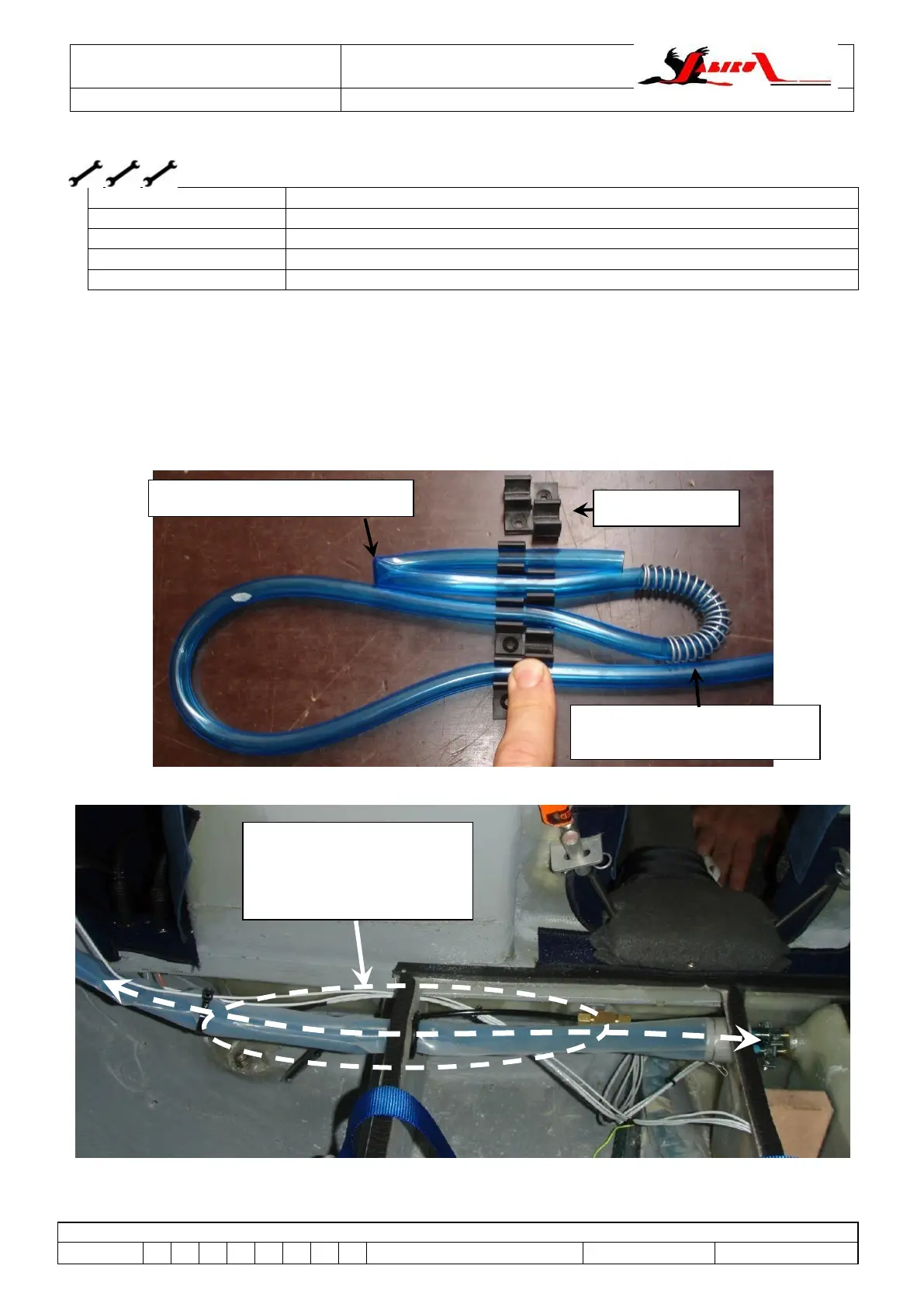

Figure 169 – Sample Fuel Line Details (all J-Series)
Figure 170 – Fuel Lines Showing Typical “U” Requiring Correction (all J-Series)
Lines dip slightly as they
exit the header tank and
pass through the side of
the baggage shelf.
Fuel line clips
Line crimped – bend too tight
Spring preventing line from
crimping on a tight bend
