Jabiru j430 - Figure 22 - Scratches on Rudder

To Next Page

To Previous Page

Aircraft Technical Manual

Jabiru Aircraft Pty Ltd

JTM001-5

J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants

This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.

ISSUE

Dated: 29th October 2014

Issued By: AS

Page: 62 of 298

- Move the control through its normal travel range while pushing against each hinge in the direction

that would close the control clearance with a force of approximately 5-7kg (11 – 15lb).

- Note if there is any travel restriction caused by the control rubbing against the aircraft.

- Rectification work is necessary whenever any of the following criteria are met:

- There is travel restriction caused by the control rubbing against the aircraft.

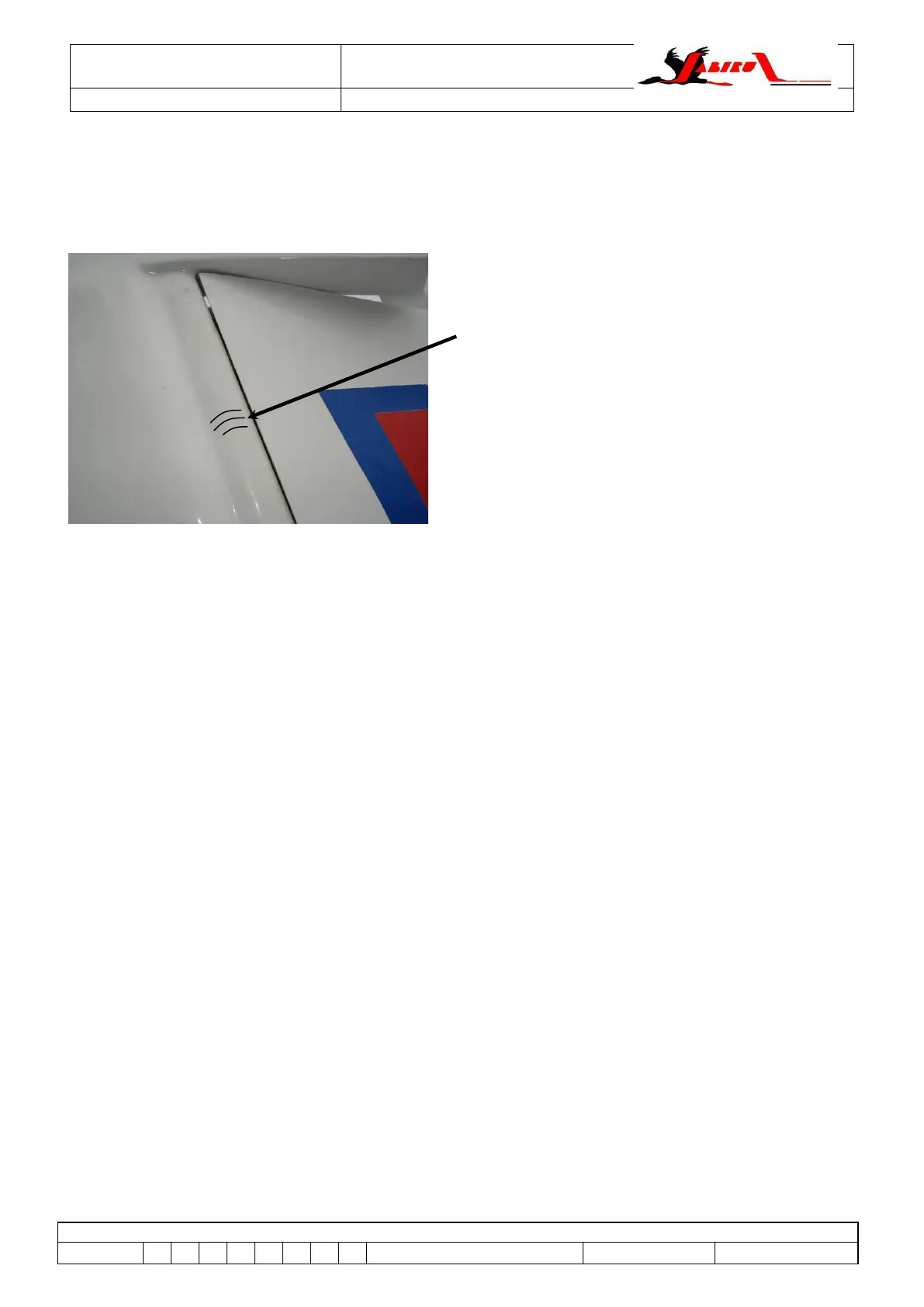

Figure 22 – Scratches on Rudder (all J-Series)

Scratches here indicate the

control has rubbed against the

fin (illustration)
