5. Remove the bolts holding the input arm to the flap cross shaft. If fitted, it will be necessary to
remove any upholstery and paint from the shaft to allow it to be drawn out through the
bearings on the sides of the fuselage.
6. Draw the tube out of the fuselage.
6.58.3 Flap Cross Shaft Inspection & Repair
Required Tools:
N/A
Parts and Material:
Replacement parts as needed
Type of Maintenance:
Line Maintenance
Level of Certification:
L2 or LAME (A&P or LSA Repairman / Maintenance)
Return to Service:
L2 or LAME (A&P or LSA Repairman / Maintenance)
 Repair is limited to replacing worn parts.
 Inspect for corrosion or damage to any parts.
6.58.4 Flap Cross Shaft Installation
 Installation procedure is the reverse of assembly.
 After installing carry out a test run while watching the external flap drive arms. Ensure the arms do
not rub against the fuselage or wing mounts.
WARNING
All spherical rod end bearings must be fitted with a large washer on the outside of the through-
bolt to prevent the bearing case and cable releasing in the event of a bearing failure.

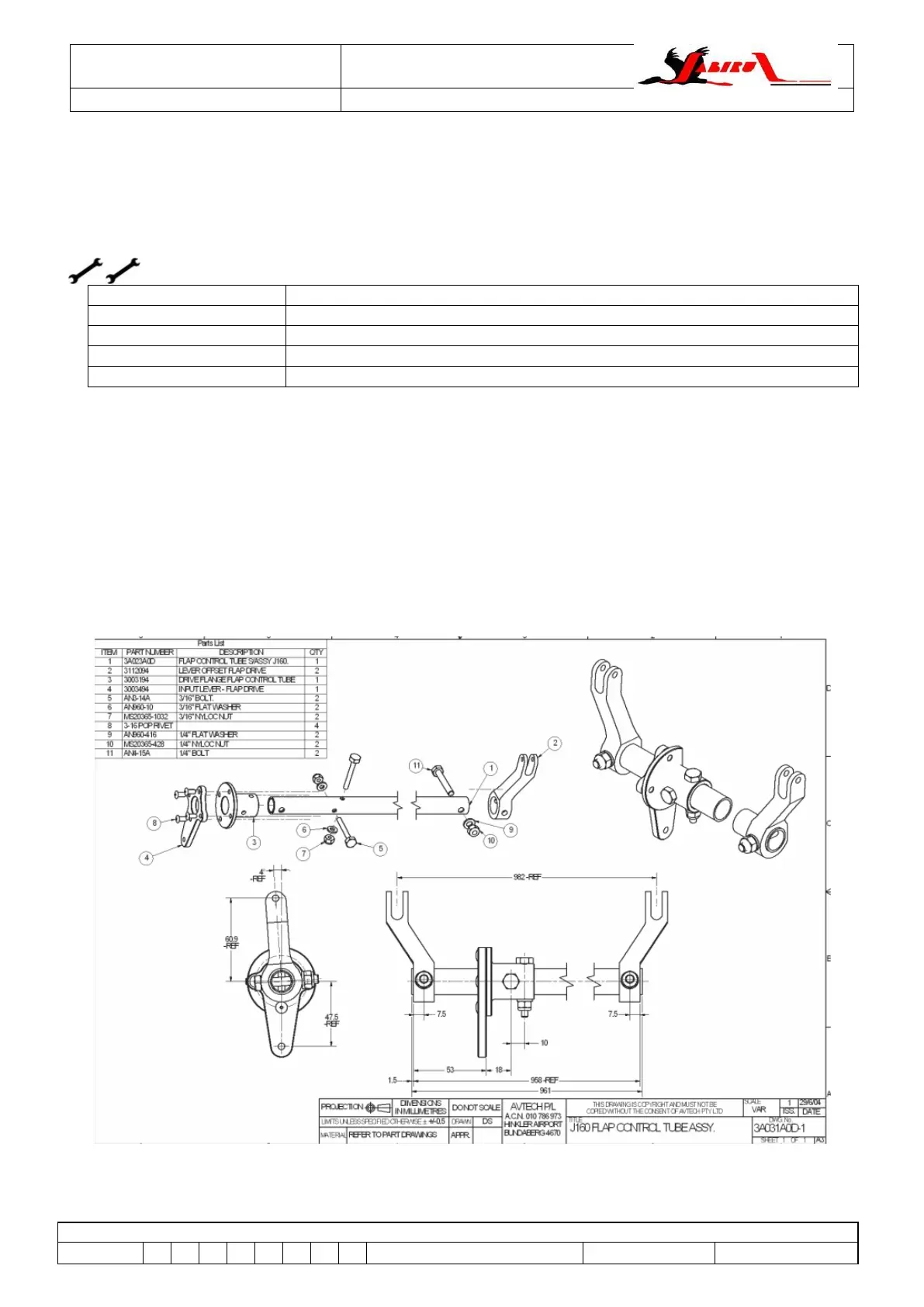

Figure 114 – Flap Cross Tube Assy J160 Family (J160)
