Aircraft Technical Manual
Jabiru Aircraft Pty Ltd
JTM001-5
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE
1
2
3
4
5
Dated: 29th October 2014
Issued By: AS
Page: 23 of 298
Table 2-3 – J160 Specifications
Model
J160-C
J160-D
Other J160
Variants
Aircraft Maximum Weight
540kg
(1190lb)
540kg
(1190lb)
544kg
(1190lb)
Fuel Capacity
135 litres
135 litres
135 litres
Oil Capacity
2.3 litres
2.3 litres
2.3 litres
Engine Model
Jabiru 2200C
Jabiru 2200B
Jabiru 2200B
Jabiru 2200A
Propeller Pitch
Jabiru 42” pitch
(1067mm)
Jabiru 42” pitch (1067mm)
Sensenich 43” pitch (1092mm) or
Sensenich 46” pitch (1168mm)
Jabiru Scimitar 38” pitch (965mm)
Jabiru 44” pitch
(1117mm)
Wheel Sizes Standard
500 x 6” rim
500 x 6” rim
500 x 6” rim
Tyres Standard
6” wide, 6 Ply
6” wide, 6 Ply
6” wide, 6 Ply
Tyre Pressures Standard
- Mains
228 kPa (33 psi)
228 kPa (33 psi)
228 kPa (33 psi)
Tyre Pressures Standard
- Nose
193 kPa (28 psi)
193 kPa (28 psi)
193 kPa (28 psi)

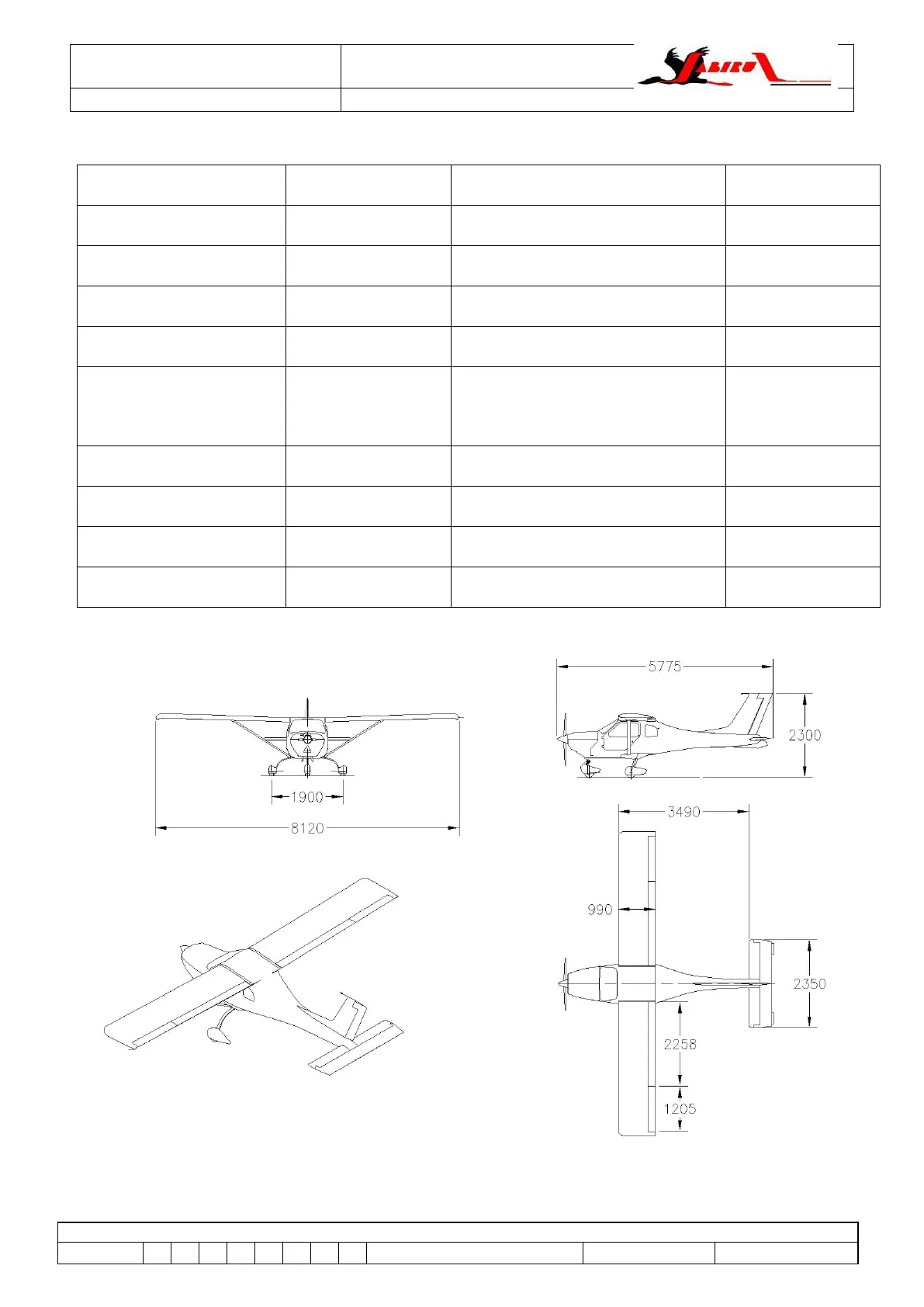

Figure 2 – J160 General Arrangement
