6.23 Wing Inspection Window (all J-Series)
6.23.1 Description
 All Jabiru Aircraft have a small acrylic window in the underside of the wing to allow inspection of the
outboard aileron clamp.
 In some models this window is a simple rectangular piece of clear acrylic screwed to the wing using
machine screws and anchor nuts. Later variants use a machined acrylic sheet with threaded inserts.
6.23.2 Removal, Inspection & Installation
Required Tools:
Screwdrivers
Parts and Material:
N/A
Type of Maintenance:
Line Maintenance
Level of Certification:
L1, L2 or LAME (Owner, A&P or LSA Repairman / Maintenance)
Return to Service:
L1, L2 or LAME (Owner, A&P or LSA Repairman / Maintenance)
 Remove the screws holding the window to the wing and remove.
 Installation is the reverse.
 Also refer to wing assembly drawings shown above.

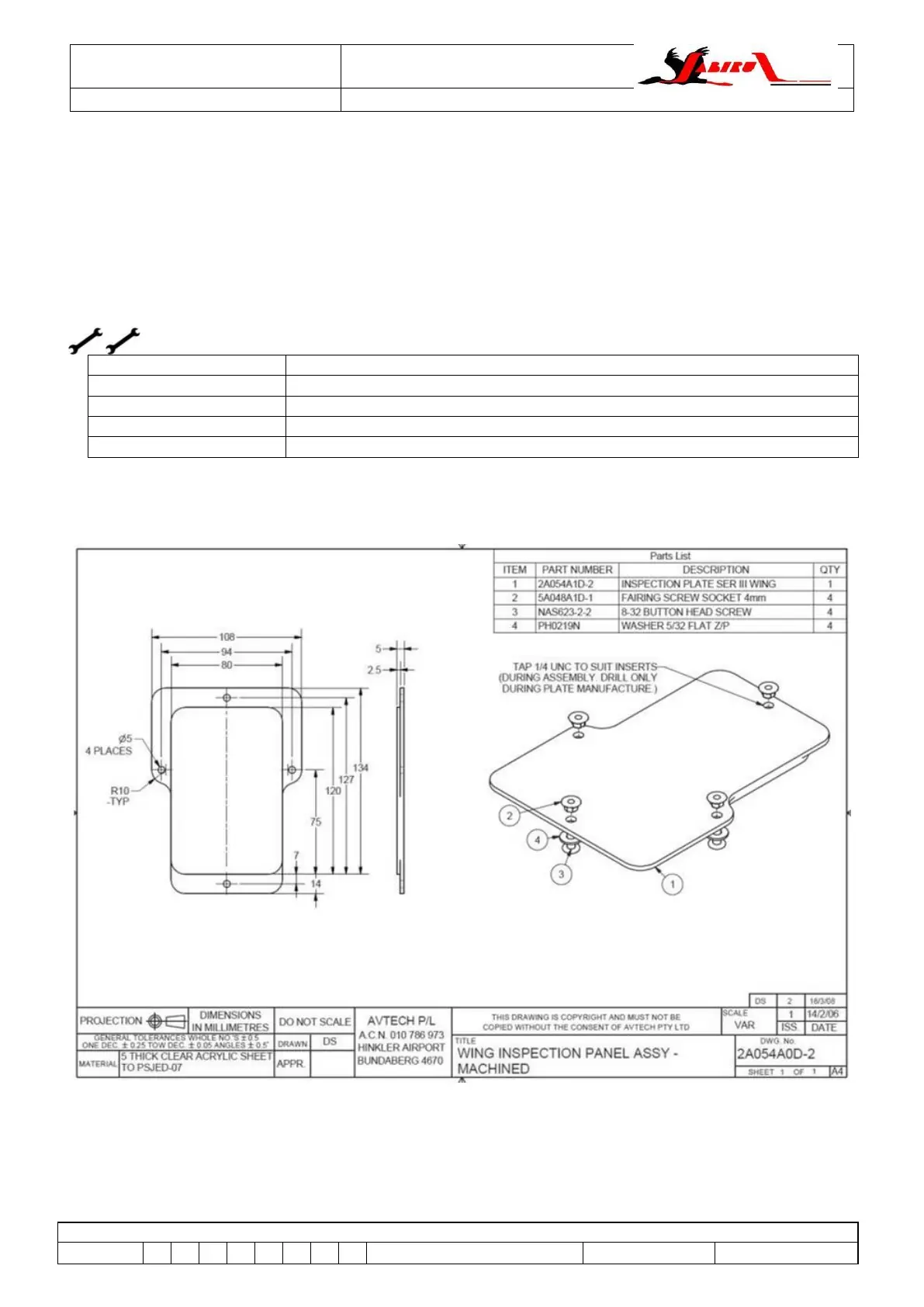

Figure 66 – Wing Inspection Panel (all J-Series)
