Aircraft Technical Manual
Jabiru Aircraft Pty Ltd
JTM001-5
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE
1
2
3
4
5
Dated: 29th October 2014
Issued By: AS
Page: 22 of 298
2.18.2 J120-C
Table 2-2 – J120-C Specifications
Model
J120-C
Other J120 Variants
Aircraft Maximum Weight
500kg
(1102lb)
500kg
(1102lb)
Fuel Capacity
65 litres
65 litres
Oil Capacity
2.3 litres
2.3 litres
Engine Model
Jabiru 2200B
Jabiru 2200A
Propeller Pitch
Jabiru 42” pitch (1067mm)
Sensenich 43” pitch (1092mm) or
Sensenich 46” pitch (1168mm)
Jabiru Scimitar 38” pitch (965mm)
Jabiru 42” pitch (1117mm)
Nose Wheel Size
260 x 4” rim
260 x 4” rim
Main Wheel Size
400 x 4” rim
400 x 4” rim
Tyres Standard
4” wide, 4 Ply
4” wide, 4 Ply
Tyre Pressures Standard - Mains
228 kPa (33 psi)
179 kPa (26 psi)
Tyre Pressures Standard - Nose
193 kPa (28 psi)
137 kPa (20 psi)

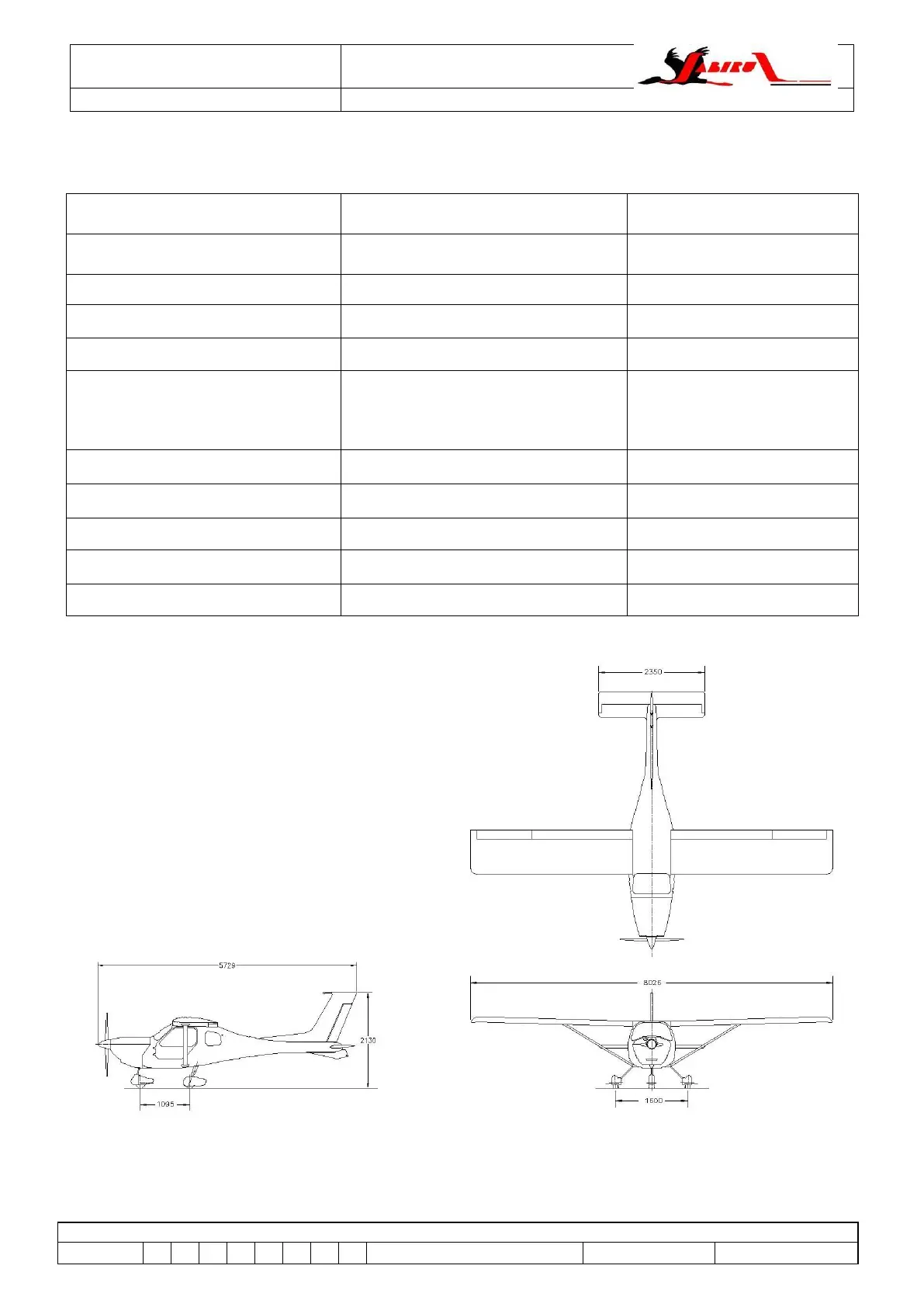

Figure 1 – J120-C General Arrangement
