- In some cases it may be necessary to disconnect the aileron cables to allow room for the tank to
pass.
- Remove the tank from the aircraft.
8.3.3 Fuel Tank Inspection
Required Tools:
N/A
Parts and Material:
N/A
Type of Maintenance:
Line Maintenance
Level of Certification:
L2 or LAME (A&P or LSA Repairman / Maintenance)
Return to Service:
L2 or LAME (A&P or LSA Repairman / Maintenance)
 Leaks can normally be found by visual inspection: AVGAS in particular will leave dye stains where
leaks have occurred. If leaks are found contact Jabiru Aircraft for a repair procedure.
 Visually inspect the tank and fittings for corrosion, damage and contamination.
8.3.4 Fuel Tank Installation
 For installation, reverse removal procedure given above.

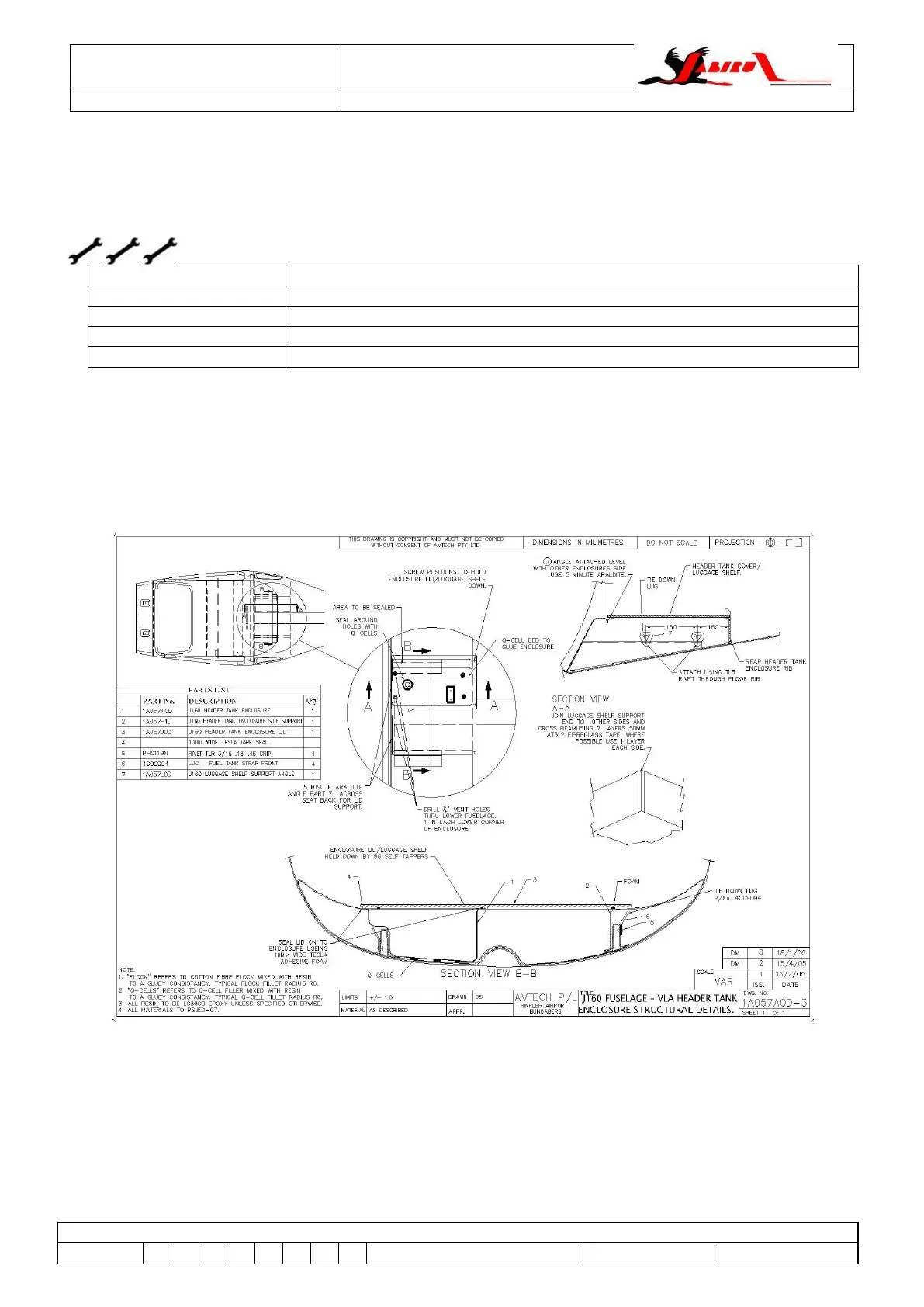

Figure 172 – Header Tank Installation – Type 1 (all J-Series, n/a J120)
