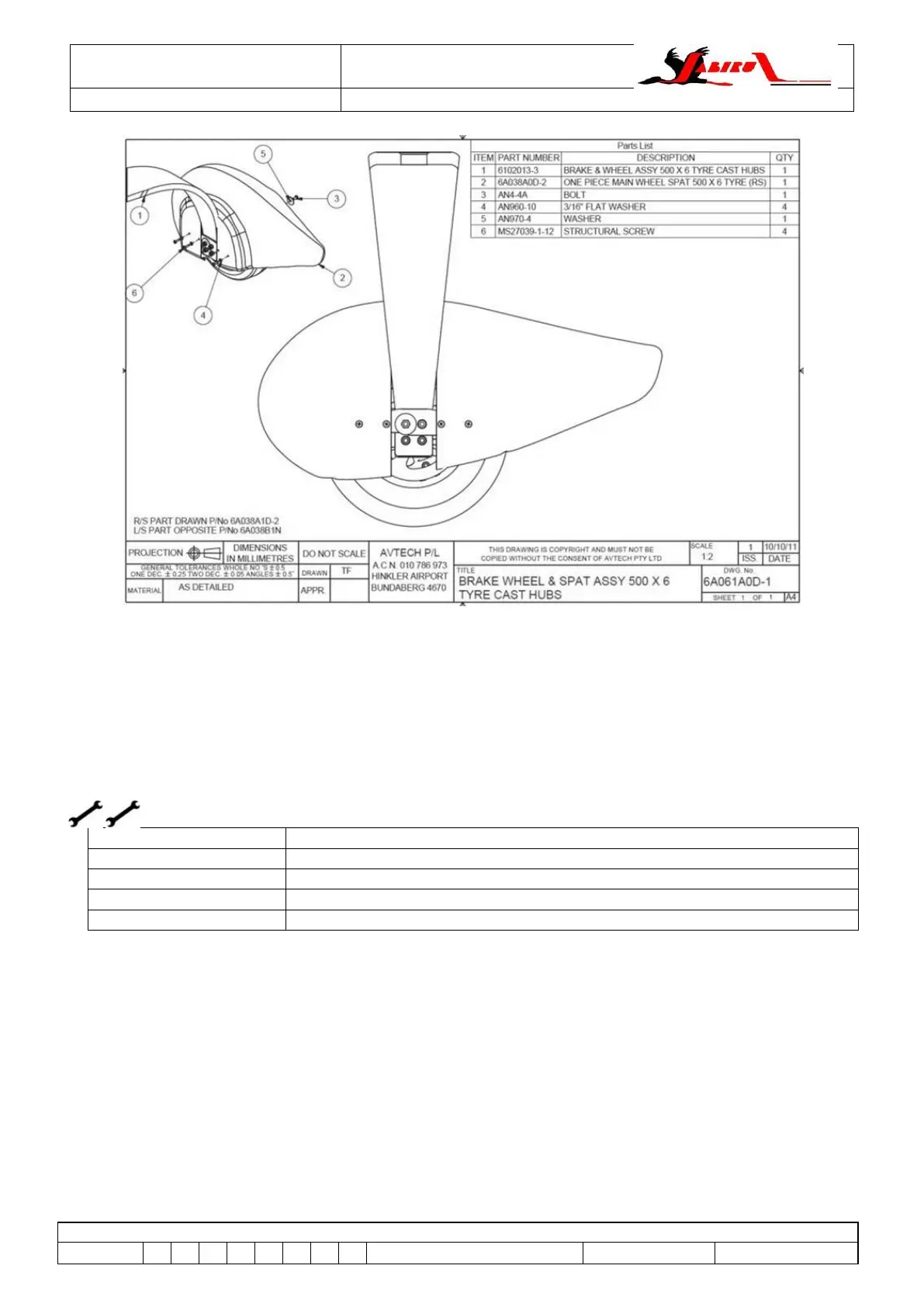

Figure 67 – Wheel Spat Installation (all J-Series)
6.29 Main Gear Top Fairing (Speed Fairing) (all J-Series)
6.29.1 Description
 Jabiru Aircraft are equipped with fairings between the main leg and the fuselage. These smooth the
airflow in this area and significantly improve the efficiency of the aircraft.
6.29.2 Removal And Installation
Required Tools:
Screwdrivers
Parts and Material:
N/A
Type of Maintenance:
Line Maintenance
Level of Certification:
L1, L2 or LAME (Owner, A&P or LSA Repairman / Maintenance)
Return to Service:
L1, L2 or LAME (Owner, A&P or LSA Repairman / Maintenance)
 The fairing at the top of the main undercarriage leg is removed by removing the securing screws.
 To install, reverse this procedure.
WARNING
During assembly ensure that the brake line is not rubbing against the fairing or mounting screws.
Rubbing can lead to failure of the brake line and wheel brake failure.
