Aircraft Technical Manual
Jabiru Aircraft Pty Ltd
JTM001-5
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE
1
2
3
4
5
Dated: 29th October 2014
Issued By: AS
Page: 281 of 298

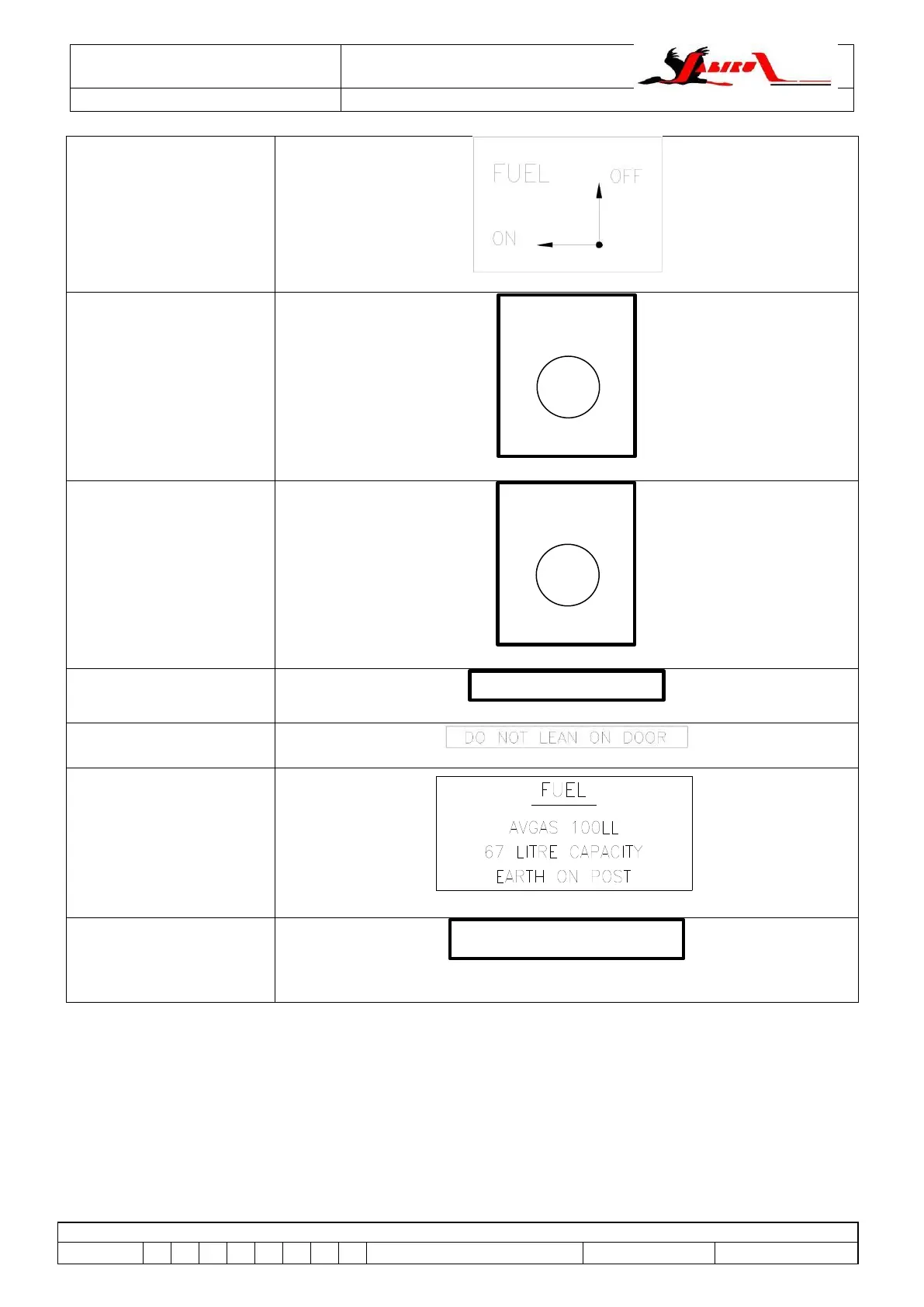

Fuel Tap Position
P/No 5023094
Where Equipped
Fitted to the left-hand of the console adjacent to the fuel valve
Choke Cable
P/No5051094
Where Equipped
Fitted at the base of the choke cable.
Carb Heat
P/No 5026194
Where Equipped
Fitted at the base of the CARBY Heat Cable.
Static Port
(P/No 5043094
Attach to LHS of Vertical Fin in line with Static Tube
Door Lean.
P/No. 5A013A0D
Fit to top of doors.
Fuel Grade
P/No 5091344
2 OFF
Attach to top skin of wing adjacent to Fuel Filler Cap.
Wing Bolt Tightening
P/No 5039094
Qty 8 Required
Attach to the fuselage and wings beside each wing, and lift strut
attachment fitting.
CHOKE
PULL ON
CARB HEAT
PULL ON
STATIC VENT KEEP CLEAR
DANGER DO NOT TIGHTEN
