Jabiru j430 - Figure 82 - Brake Master Cylinder & Lever Assy (Type 1)

To Next Page

To Previous Page

Aircraft Technical Manual

Jabiru Aircraft Pty Ltd

JTM001-5

J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants

This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.

ISSUE

Dated: 29th October 2014

Issued By: AS

Page: 133 of 298

6.41.4 Brake Master Cylinder Repair

 Repair is limited to installation of new parts, cleaning and adjustment. Use only automotive brake

fluid. DO NOT use aircraft grade hydraulic fluid or damage will result.

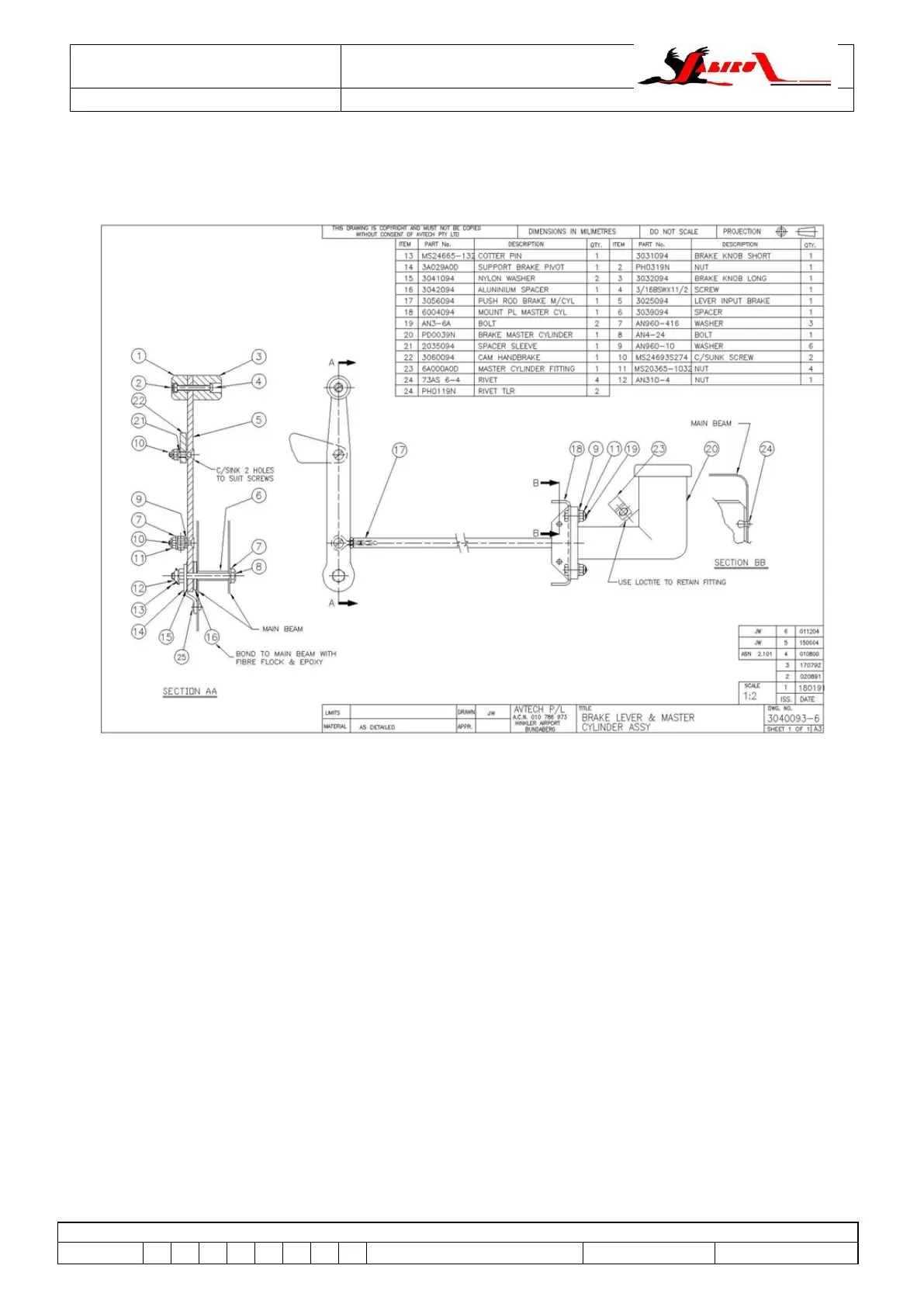

Figure 82 – Brake Master Cylinder & Lever Assy (Type 1)
