16 Placards
16.1 Model-Specific Decals (Models as Specified)

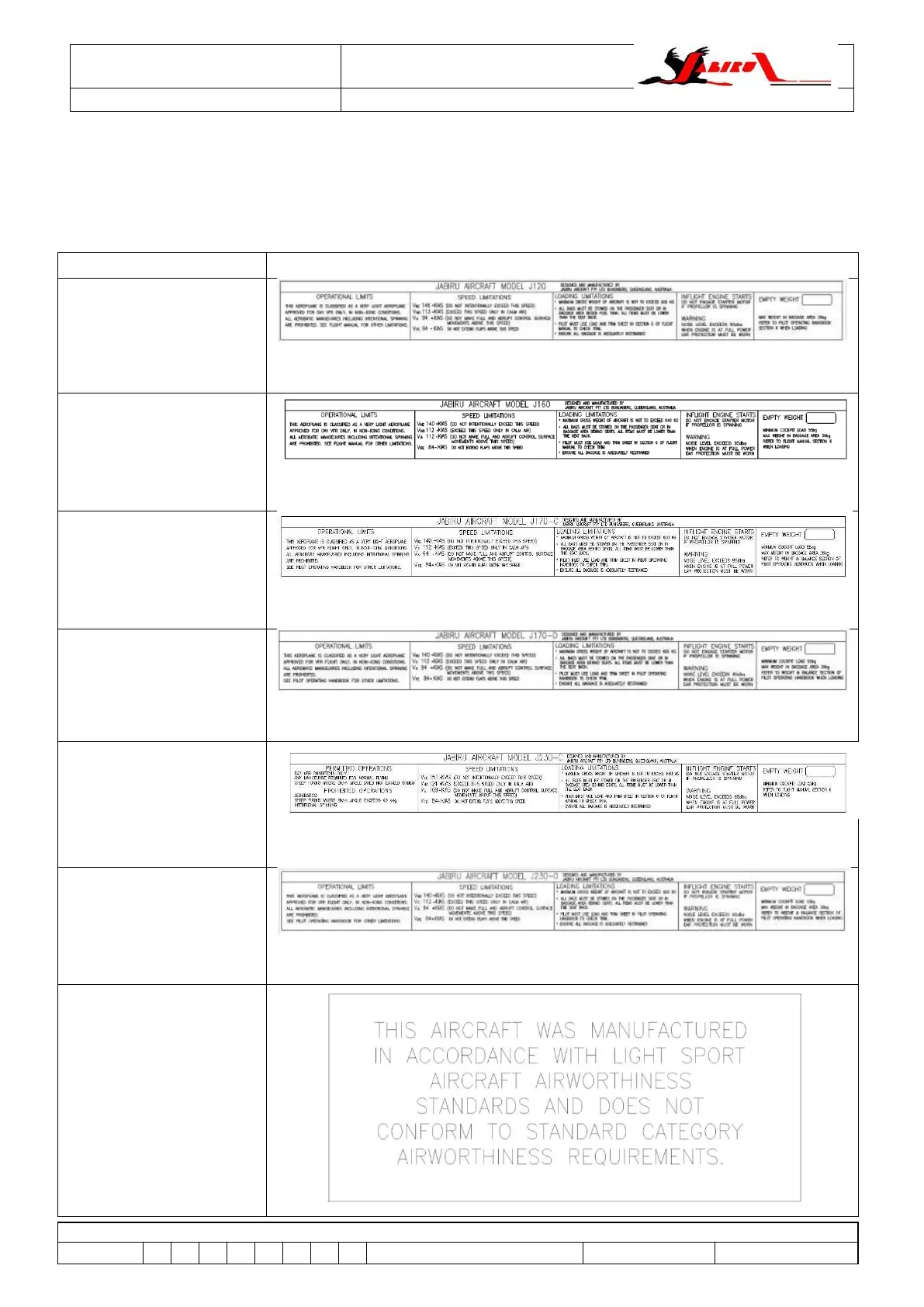

Table 16-1 – Model-Specific Decals
Decal Detail
Preview
Warning Placard
J120
P/No. 5A092A0D
Fitted on the rear Face of the Forward Wing Spar Carry-through Beam in
the Cabin Ceiling.
Warning Placard
J160 – use for both
J160-C and J160-D
P/No. 5A016A0D
Fitted on the rear Face of the Forward Wing Spar Carry-through Beam in
the Cabin Ceiling.
Warning Placard
J170-C
P/No. 5A069A0D
Fitted on the rear Face of the Forward Wing Spar Carry-through Beam in
the Cabin Ceiling
Warning Placard
J170-D
P/No. 5A069B0D
Fitted on the rear Face of the Forward Wing Spar Carry-through Beam in
the Cabin Ceiling
Warning Placard
J230-C
P/No. 5A051A0D
Fitted above windscreen in front of wing carry through beam across to the
left side.
Warning Placard
J230-D
P/No. 5A076A0D
Fitted above windscreen in front of wing carry through beam across to the
left side.
LSA Warning Decal
Use for J160-D, J170-C,
J170-D, J120-C, J230-C
and J230-D
P/No. 5A060A0D
