6.72.3 Rudder Centring System Inspection & Repair
Required Tools:
N/A
Parts and Material:
N/A
Type of Maintenance:
Line Maintenance
Level of Certification:
L1, L2 or LAME (Owner, A&P or LSA Repairman / Maintenance)
Return to Service:
L1, L2 or LAME (Owner, A&P or LSA Repairman / Maintenance)
 Ensure lock nuts are secure
 Visually inspect the system for damage, wear and corrosion.
6.72.4 Rudder Centring System Installation
 To install reverse the removal procedure given above.
WARNING
All spherical rod end bearings must be fitted with a large washer on the outside of the through-
bolt to prevent the bearing case and cable releasing in the event of a bearing failure.

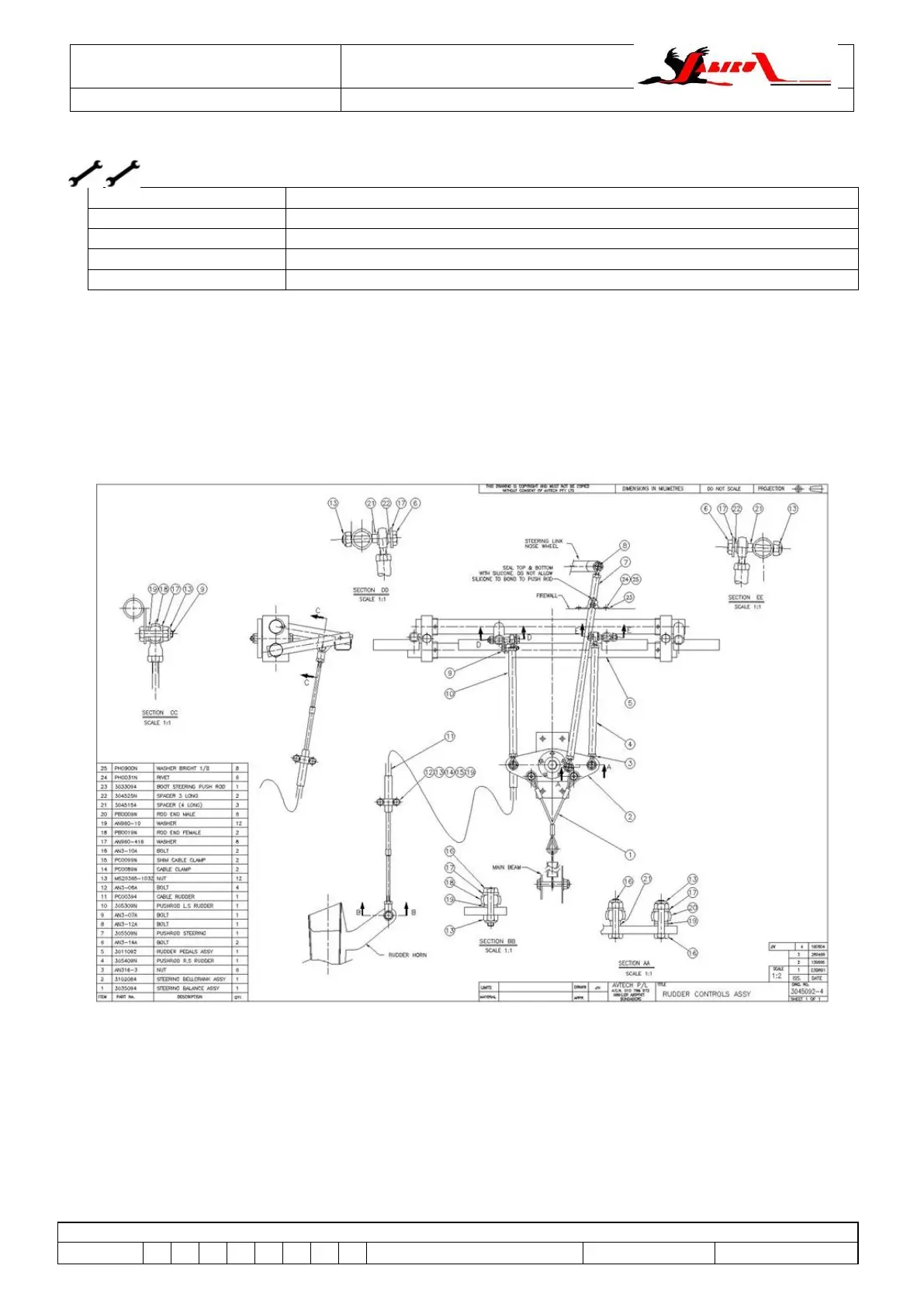

Figure 136 – Steering/Rudder Centring Assy – Type 1 (all J-Series)
