Jabiru j430 - Elevator Control System

Aircraft Technical Manual
Jabiru Aircraft Pty Ltd
JTM001-5
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE
1
2
3
4
5
Dated: 29th October 2014
Issued By: AS
Page: 171 of 298
6F Elevator Control System
6.63 Elevator Control System (all J-Series)
6.63.1 Description
 The elevator control system is comprised of a control column and one enclosed push-pull cable fitted
with rod ends at both ends.
 Due to space constraints not all different variations are shown herein. When ordering spare parts
provide as must detail as possible – part description, aircraft model, serial number etc to Jabiru to
ensure accurate part identification.
WARNING
All spherical rod end bearings must be fitted with a large washer on the outside of the through-
bolt to prevent the bearing case and cable releasing in the event of a bearing failure.

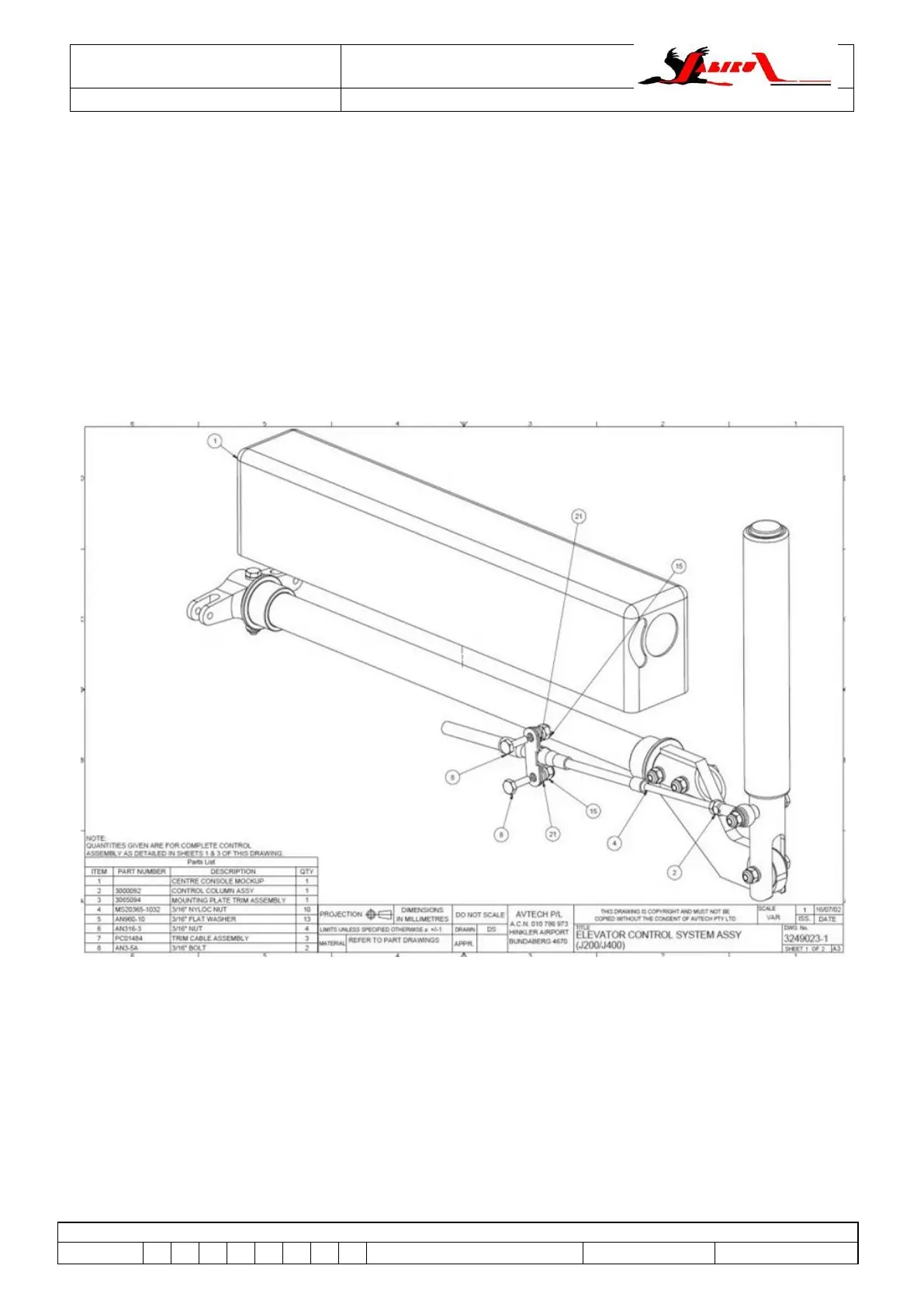

Figure 121 – Elevator Control System – Type 1, Sheet 1 (J200/J400, J230/J430, J250/J450)
