11.3 Instrument Panel Mount (all J-Series)
11.3.1 Description
 The instrument panel mount is a fibreglass moulding which is secured to the firewall. The instrument
panel fascia secures to this mount and it also supports the panel throttle assembly (where equipped).
11.3.2 Instrument Panel Removal & Installation
Required Tools:
Tools as required in Section 7.1.2 and Section 11.2.2
Parts and Material:
N/A
Type of Maintenance:
Line Maintenance
Level of Certification:
L2 or LAME (A&P or LSA Repairman / Maintenance)
Return to Service:
L2 or LAME (A&P or LSA Repairman / Maintenance)
 To remove the fibreglass panel mount from the firewall:
- Remove the fascia as noted above.
- Remove the top engine cowl to allow access to the forward side of the firewall.
- Where equipped, disconnect the panel mount throttle. If required the throttle assembly can
remain inside the panel mount when it is removed – full disassembly is not necessary.
- Remove the bolts holding the panel mount to the firewall.
- Remove the panel mount.
- Assembly is the reverse of the above procedure.

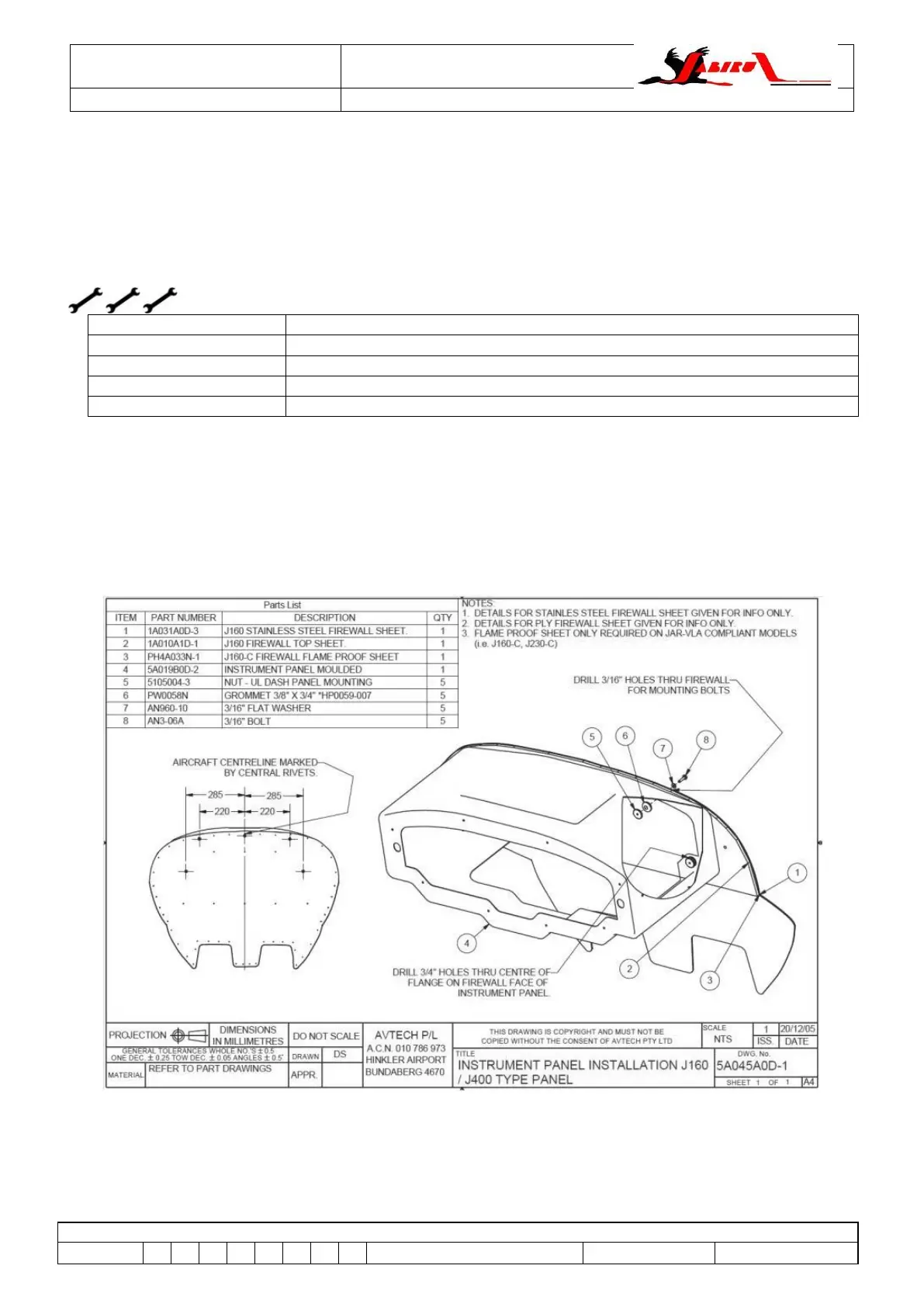

Figure 186 – Instrument Panel Mount Installation (all J-Series)
