Aircraft Technical Manual

Jabiru Aircraft Pty Ltd

JTM001-5

J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants

This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.

ISSUE

Dated: 29th October 2014

Issued By: AS

Page: 278 of 298

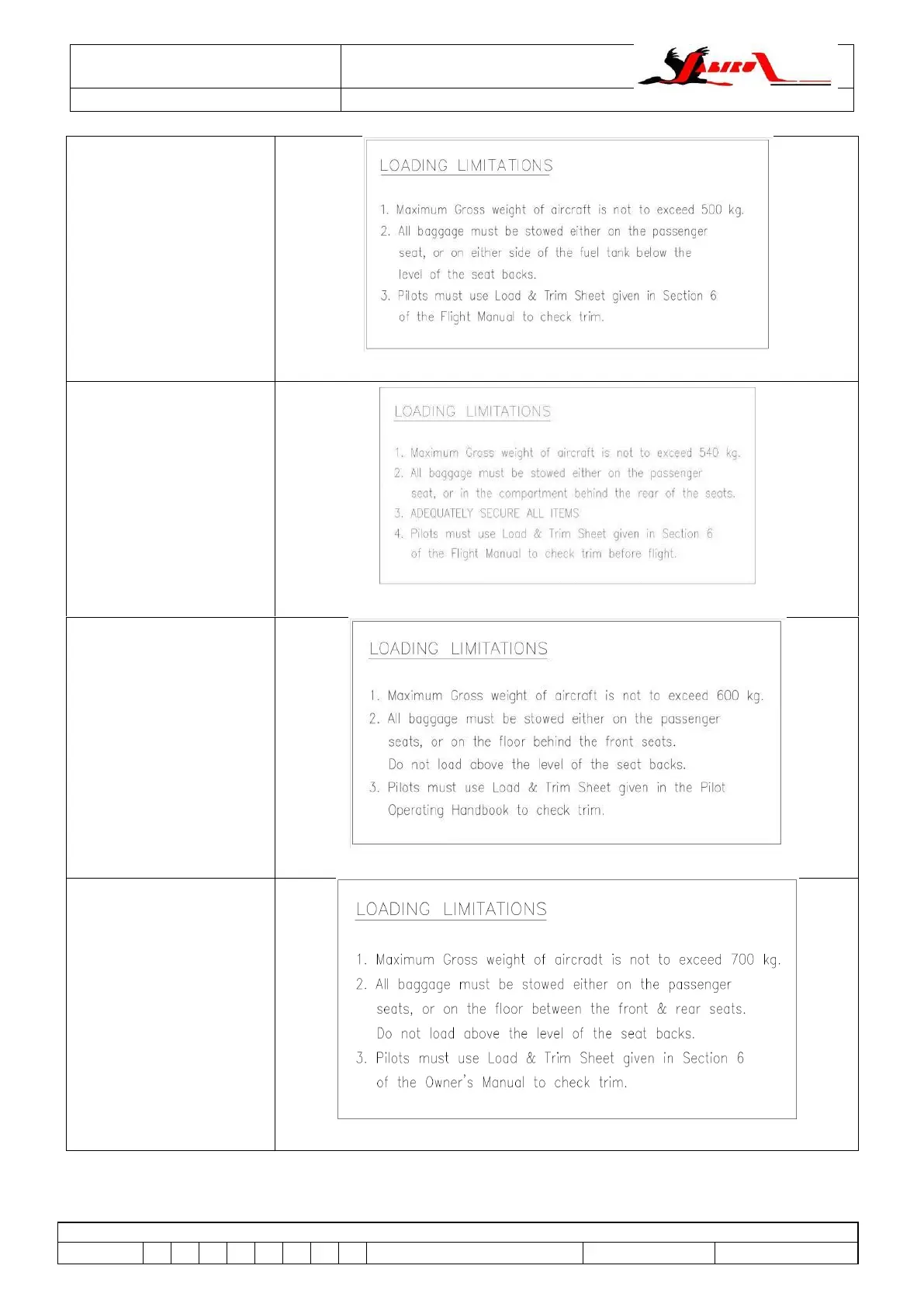

Loading Limitations

500kg

P/No 5118024

J120 Family

Fit to inside of fuselage on right side just below rear quarter window.

Loading Limitations

540kg

P/No 5098854

J160 Family

Fitted on inside of fuselage of RHS of cabin below rear quarter window.

Loading Limitations

600kg

P/No 5A073A0D

J170, J230 LSA variants.

Fitted on inside of fuselage of RHS of cabin below rear quarter window.

Loading Limitations

700kg

P/No 5098694

Some J200 family

variants.

Fitted on inside of fuselage of RHS of cabin below rear quarter window.
