Jabiru j430 - Trim Control Cables

Aircraft Technical Manual
Jabiru Aircraft Pty Ltd
JTM001-5
J120, J160, J170, J200/J400, J230/J430, J250/J450 Variants
This document is controlled while it remains on the Jabiru server. Once this no longer applies the document becomes uncontrolled.
ISSUE
1
2
3
4
5
Dated: 29th October 2014
Issued By: AS
Page: 182 of 298

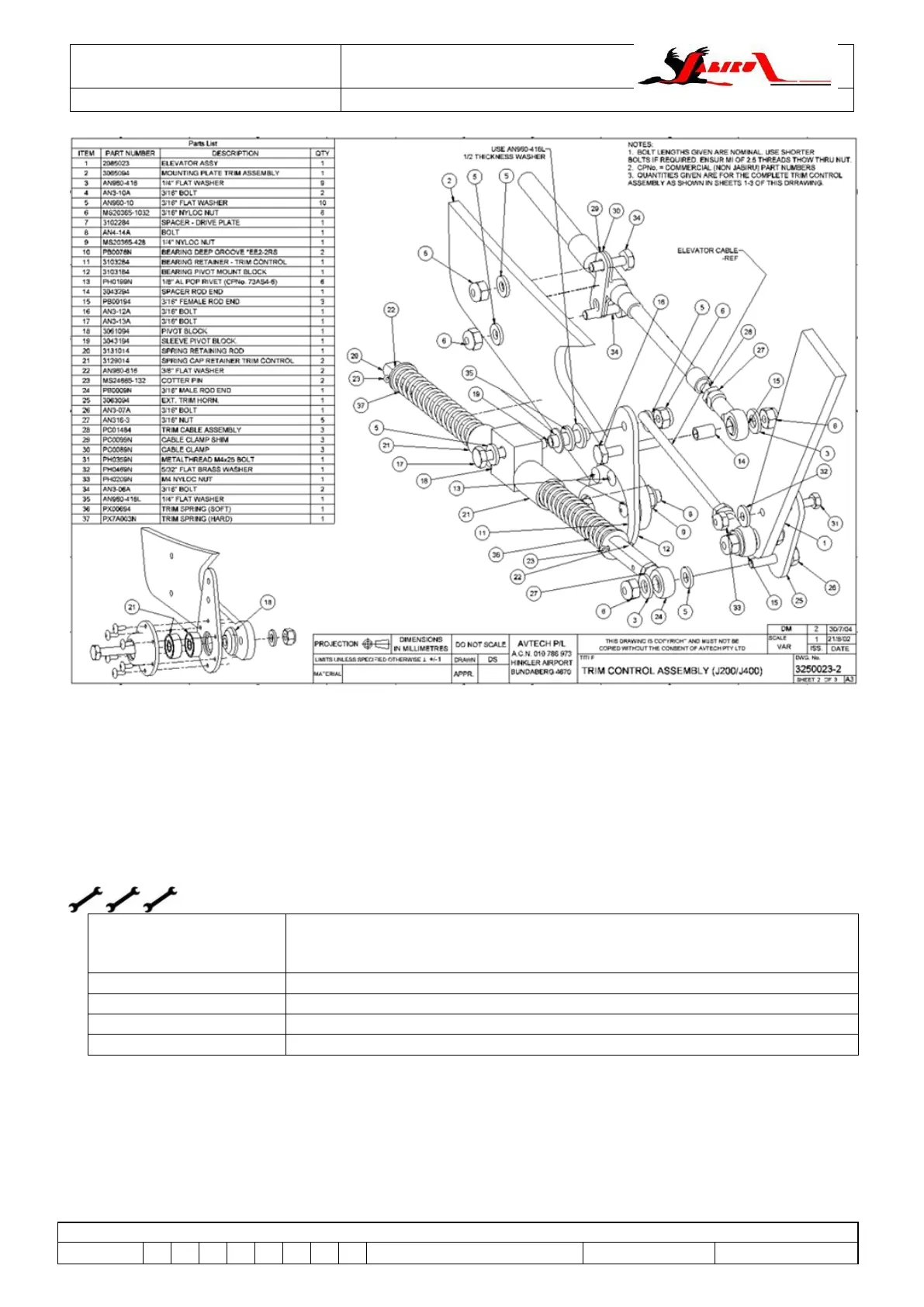

Figure 131 – Trim Controls – At Tail (all J-Series)
6.70 Trim Control Cables (all J-Series)
6.70.1 Description
 Control Cables are of the enclosed push-pull type, fitted with spherical bearings at both ends. To
operate, the outer cover of the cable must be clamped firmly at each end.
6.70.2 Control Cable Removal
Required Tools:
Spanners / Socket Wrench
Side cutters or similar (to remove ties)
String or light wire
Parts and Material:
Replacement Cables (if required)
Type of Maintenance:
Line Maintenance
Level of Certification:
L2 or LAME (A&P or LSA Repairman / Maintenance)
Return to Service:
L2 or LAME (A&P or LSA Repairman / Maintenance)
1. Unbolt the connections (rod end bearings) at either ends of the cable.
2. Unbolt the clamps at either end of the cable.
3. Where required, remove any ties etc used to restrain the cables in the aircraft.
4. Tie a string or light wire to one end of the cable.
5. Draw the cable out of the aircraft, leaving the string/wire in place to allow installation of a
replacement part.
