8.5.2 Fuel Valve Removal & Installation
Required Tools:
Fuel line clamps
Screwdrivers
Parts and Material:
N/A
Type of Maintenance:
Line Maintenance
Level of Certification:
L2 or LAME (A&P or LSA Repairman / Maintenance)
Return to Service:
L2 or LAME (A&P or LSA Repairman / Maintenance)
 Where equipped, turn OFF both taps between wing tanks and header tank. Cover both tank cap
vents. Alternately removable fuel line clamps may be used.
 Remove fuel shut-off valve cover (where equipped).
 Remove shut-off valve handle.
 Remove cover plate (where equipped).
 For some variants access to the valve requires the removal of the section of fuel line containing the
tap. To achieve this, loosen the hose clamps, disconnect the hose and draw it carefully out of the
centre console.
 Where equipped, disconnect the fuel line sheath from the shut-off valve.
 Disconnect shut-off valve from fuel line.
 Remove shut-off valve.
 Reverse the preceding steps for installation.
WARNING
Ensure wing tank cap vent covers and fuel line clamps are removed.

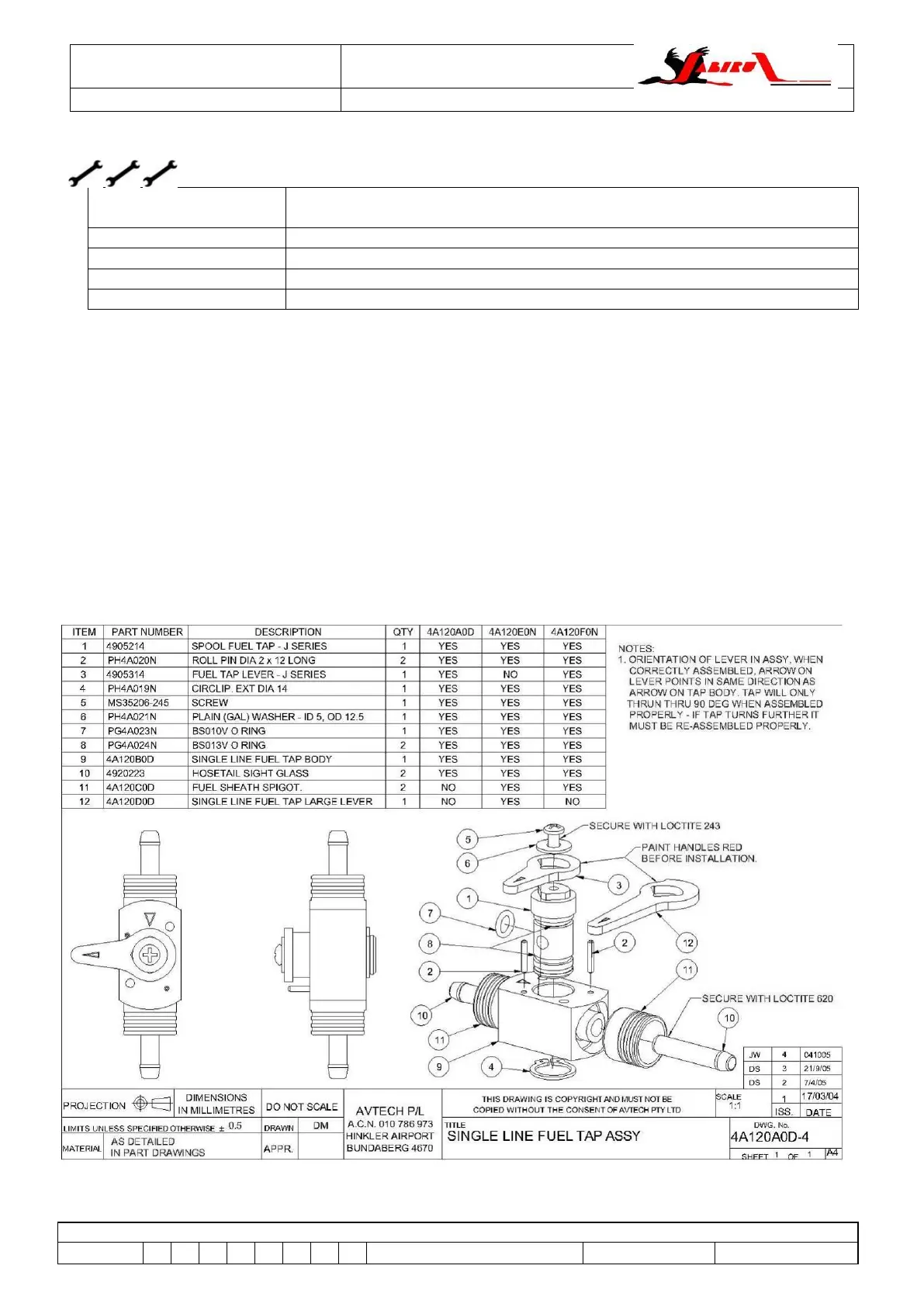

Figure 176 – Single Line Fuel Tap (all J-Series)
