Jacobsen Eclipse 322 Repair Manual

4-66 4222983 Second Edition
ELECTRICAL
4

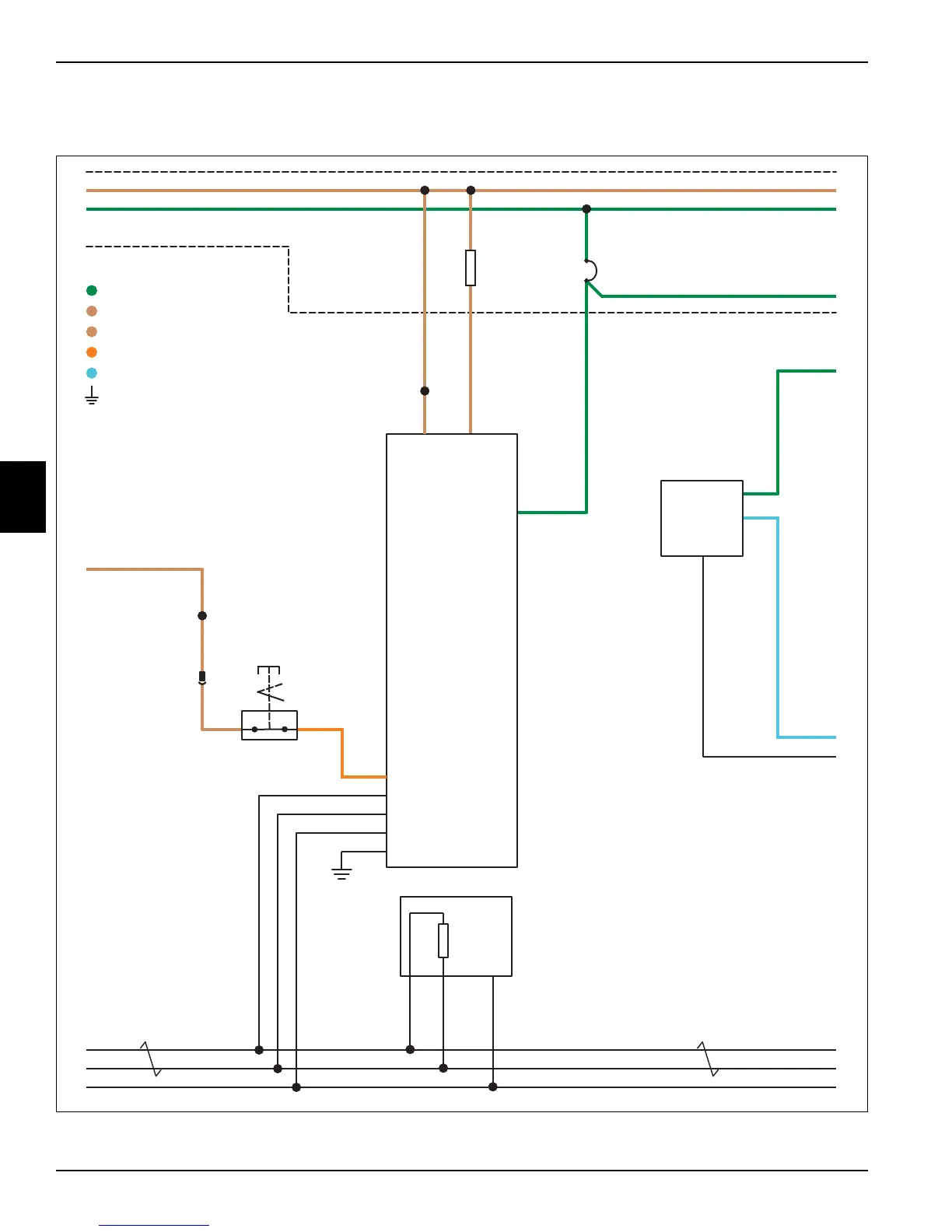

Steering Circuit Schematic
Continued
Figure 4-43
A1
Power
Distribution
Unit
(PDU)
124 Red
CAN Shield
CAN Low
CAN High
CAN Shield
CAN Low
CAN High
CAN Shield
CAN Low
CAN High
48V Switched Power
48V Switched Power
12V Switched Power 12V Switched Power
Splice G
LCD
Harness
A4
Main
Control
Unit
(MCU)
J2-11 CAN High
J2-12 CAN Low
J2-10 CAN Shield
1F Blk
J2-9 Ground
91A Yel
Shield
92A Grn
Splice E
9
Pnk
9A
Pnk
J1-5
5A
Red/
Blk
5A Red/Blk
48V Power Input J2-7
R17
CAN
Termination
Resistor
120
Ohms
J79-A
91
Yel
92
Grn
Shield
J79-B J79-C
R12
.02
Ohm
Resistor
J1-10
J2-8
12V
Power
Input
J2-6
12V
Power
Input
16
Red/
Grn
128
Red
J41-1
60
Drk
Grn
J91-3
J41-2
71
Drk
Grn
On
Off
S6
Seat
Switch
J4-10 Seat Switch
S11
Right
Steering
Proximity
Switch
85D
Grn/
Brn
85D Grn/Brn
88
Grn/
Wht
88 Grn/Wht
Output J105-C
48V Input J105-B
Ground
105-A
3D Red/Wht
3D
Red/
Wht
F4
12A
Circuit
Breaker
J104-B
Seat Switch
48V Switched Power Circuit
12V Switched Power Circuit
12V Power Supply
Ground Circuit
GC2
Proximity Switch
TN1684
