GENSET AND BATTERY PACK
4222983 Second Edition 3-13
3
Air Filter Assembly (Diesel)
Removal and Installation
See Figures 3-13 and 3-14.
CAUTION
NOTES
• The air filter on this engine is a dry type; never apply
oil to it.
• It is recommended to remove and clean the dust cap
daily (in dusty conditions).
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Raise the hood.

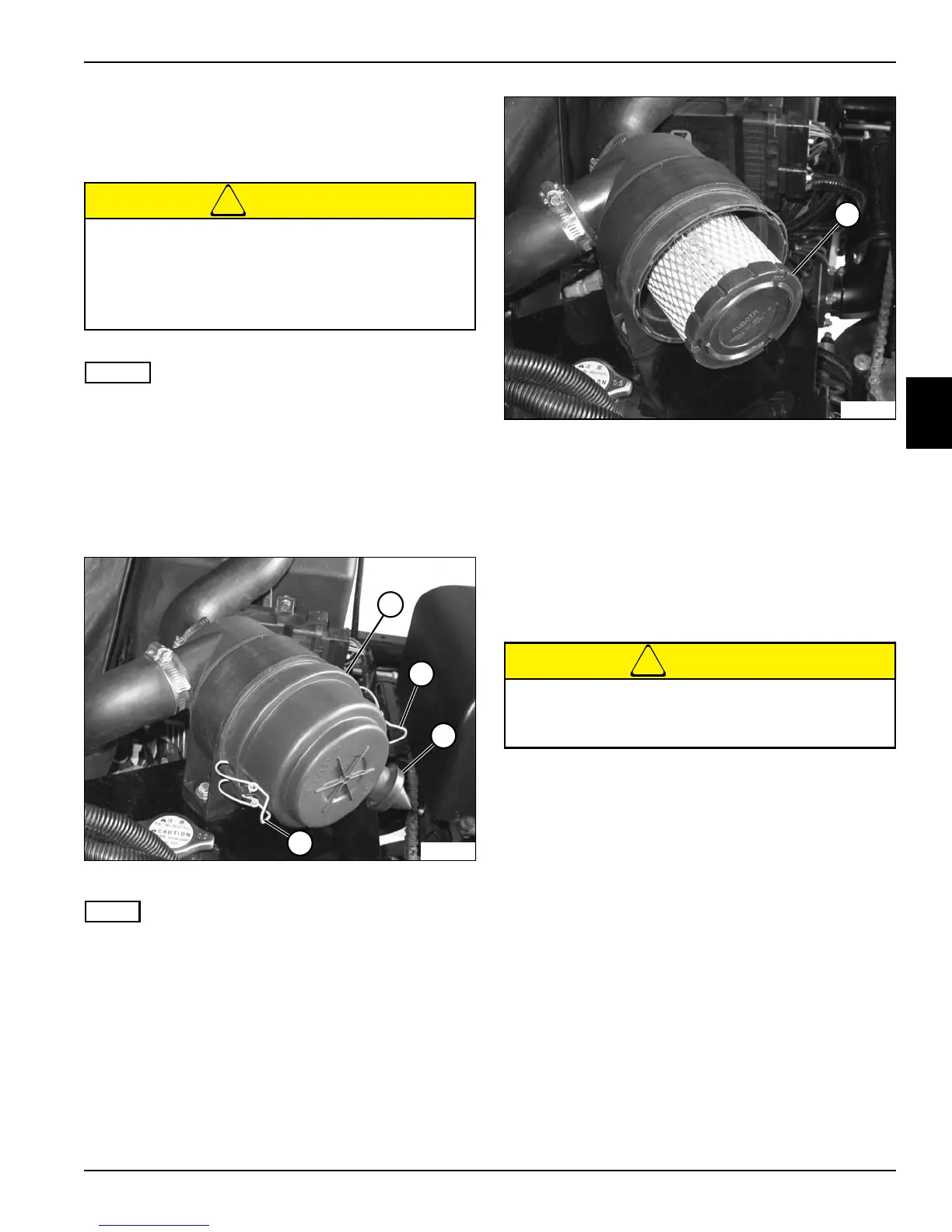

Figure 3-13
NOTE
For installation purposes, note orientation of air inlet (3)
before removing the air filter dust cap (1).
3. Release retaining clips (2) and remove the air filter
dust cap.
4. Using damp, lint-free cloths, thoroughly clean the
inside of the dust cap.
Figure 3-14
5. Slide air filter (4) out of the assembly.
Installation Note
Install air filter assembly in the reverse order of removal.
Muffler (Diesel)
Removal and Installation
See Figures 3-15 and 3-16.
CAUTION
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Allow the engine to cool completely.
3. Raise the hood.
• Do not open the air filter assembly for
inspection or cleaning. Unnecessary removal
of the air filter increases the risk of injecting
dust and other impurities into the engine.
• Do not remove air filter with engine running.
1
TN2445
2
3
2
Do not attempt to service the exhaust system
when the engine is hot. Serious personal injury
can occur.
TN2446
4
