• Splice C (See Figure 4-13.)
• Splice E (See Figure 4-10.)
• V3—Switched Power Contactor Diode (See
Figure 4-6.)
• V4—Start Relay Diode (See Figure 4-9.)
• V5—Glow Plug Relay Diode (See Figure 4-9.)
• V6—Brake Coil Diode (See Figure 4-11.)
• Y1—Fuel Shutoff Solenoid (Diesel Engine) (See
Figure 4-8.)
• Y2—Fuel Shutoff Solenoid (Gas Engine) (See
Figure 4-9.)
• Y3—Brake Coil (See Figure 4-11.)
Reel Motor Connector Pin Locations
See Figure 4-5.
NOTE
The right, left, and center reel motor connectors are
configured the same. Figure 4-5 depicts the female
connector end view for the following connectors:
• Right Reel Motor Connector J67 pins 1 through 8
• Center Reel Motor Connector J68 pins 1 through 8
• Left Reel Motor Connector J69 pins 1 through 8

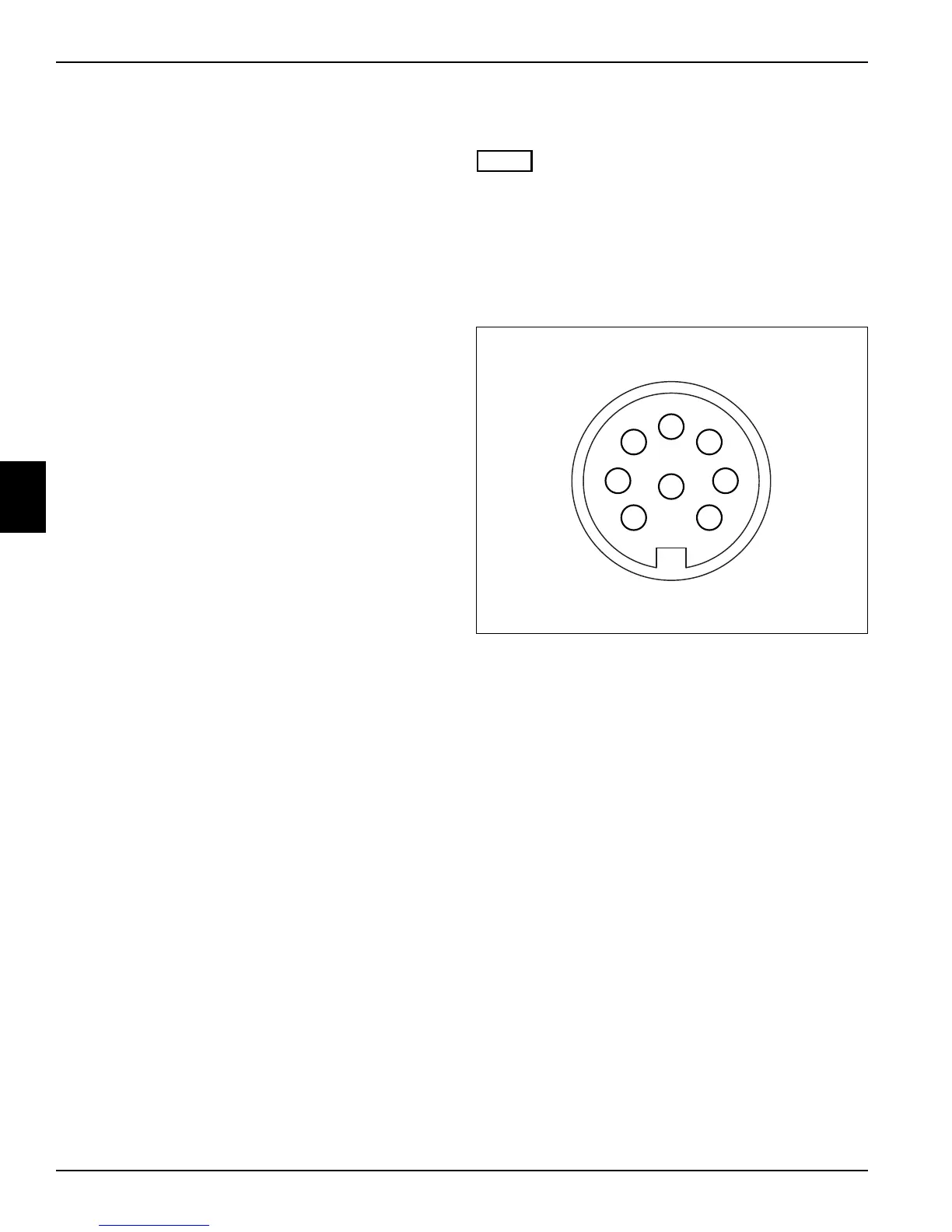

Figure 4-5: Reel Motor Connector Pin Locations
TN2841
1
4
2
5
3
76
8
