GENSET AND BATTERY PACK
4222983 Second Edition 3-15
3
4. Disconnect wire connector (7).
5. Remove nut (8), lock washer (9), and wire connector
(10).
6. Loosen screws (12 and 15), push the alternator (11)
toward the engine, and disengage the fan belt (18)
from the alternator.
7. Support the alternator (11) with a suitable lifting
device.
8. Remove two screws (5).
9. Remove screw (15), lock washer (16), flat washer
(17), and bracket (6).
10. Remove screw (12), lock washer (13), and flat
washer (14).
11. Remove alternator.
Installation Note
Install alternator in the reverse order of removal.
Radiator (Diesel)
Removal
See Figures 3-19 through 3-23.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Allow the engine to cool completely.
3. Raise the hood.
4. Remove cowlings. (See “Cowlings” on page 7-18.)
5. Remove starter battery. (See “Starter Battery” on
page 3-39.)
WARNING
6. Drain cooling system, 3 qt (2.8 L). Open petcock
located on bottom of radiator, remove radiator cap,
and drain coolant into a clean container.
NOTE
Label all hoses before removing to ensure correct
installation.

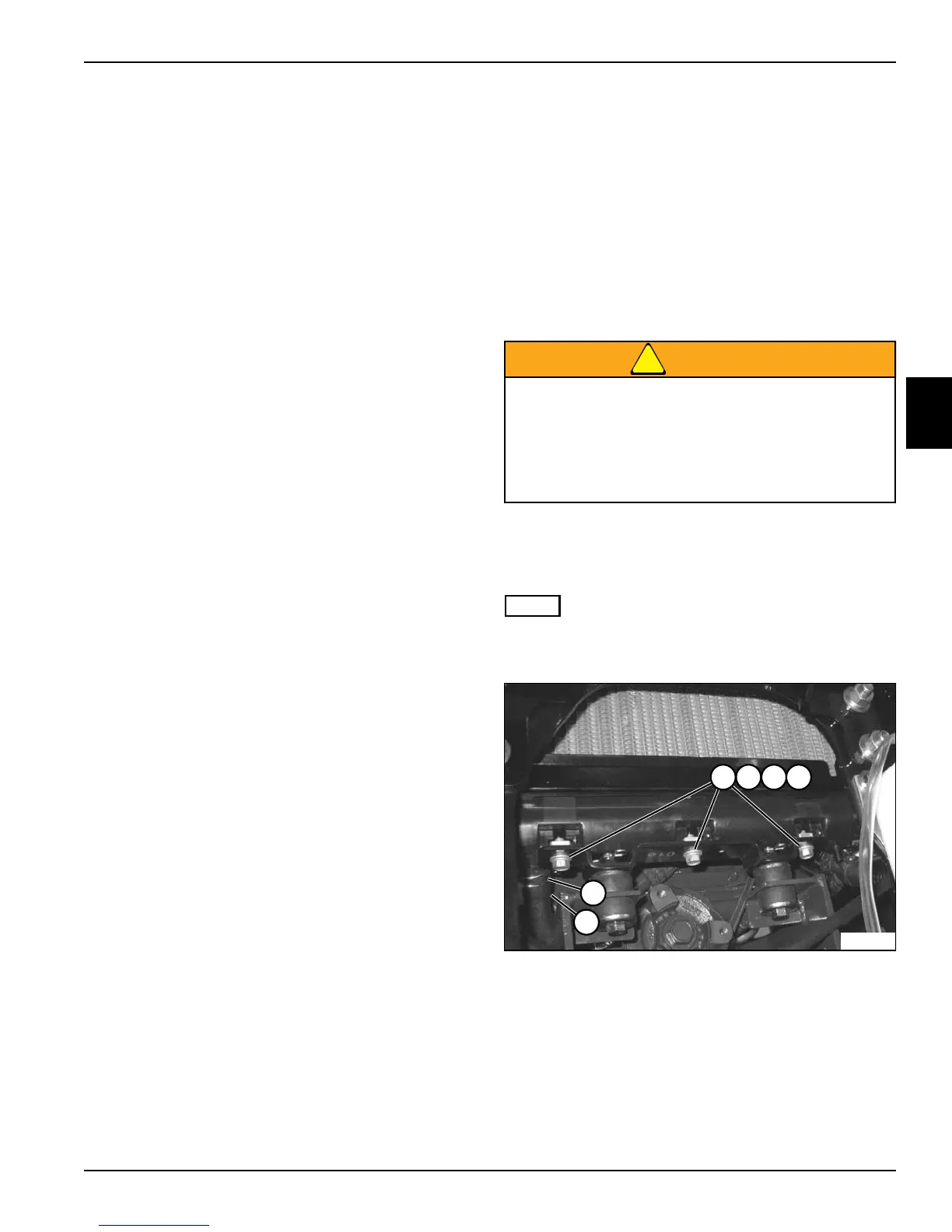

Figure 3-19
7. Loosen hose clamp (5) and remove lower radiator
hose (6) from radiator.
8. Remove screws (1), lock washers (2), flat washers
(3), and nuts (4).
Never remove the radiator cap when the coolant
is hot. The engine must be shut down and cooled
before the radiator cap is removed. Very hot
coolant will be sprayed from the radiator if the
cap is loosened before the engine has cooled.
Serious personal injury can occur.
TN2698
1 2 3 4
5
6
