Jacobsen Eclipse 322 Repair Manual

5-18 4222983 Second Edition
CHASSIS
5
Floorboard
Removal and Installation
See Figures 5-24 through 5-26.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Remove front fenders. (See “Front Fenders” on
page 5-13.)
3. Remove front cover. (See “Front Cover” on
page 7-16.)
4. Remove rear cover. (See “Rear Cover” on
page 7-16.)
5. Remove traction pedal position sensor. (See
“Traction Pedal Position Sensor” on page 4-159.)
6. Remove brake pedal assembly. (See “Brake Pedal
Assembly” on page 5-14.)
7. Remove axle shield and front splash shield. (See
“Axle Shield and Front Splash Shield” on page 5-17.)

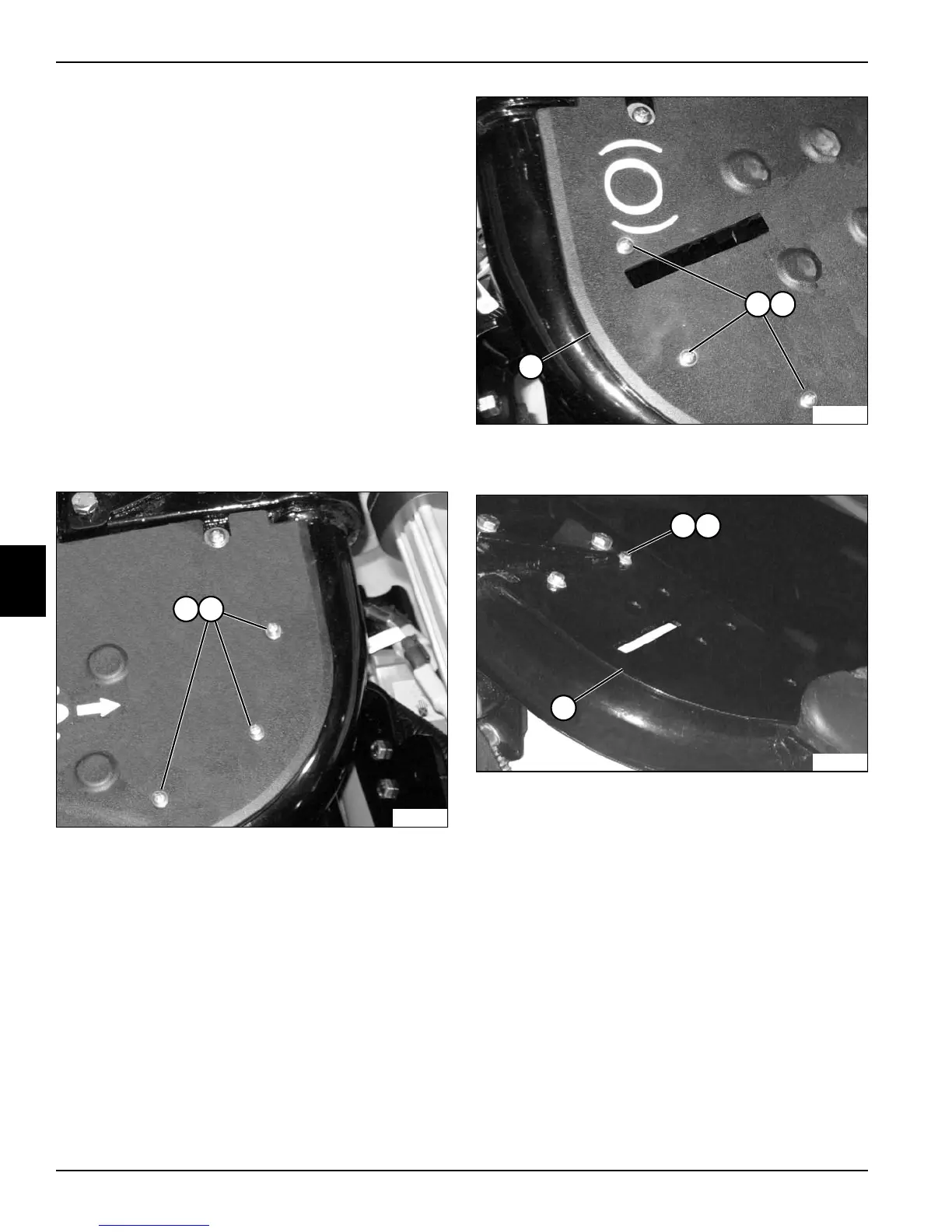

Figure 5-24
8. Remove screws (1) and washers (2).
Figure 5-25
9. Remove screws (3), washers (4), and floor mat (5).
Figure 5-26
10. Remove four screws (6) and lock washers (7).
11. Remove floorboard (8).
Installation Note
Install floorboard by reversing the order of removal.
TN2677
1 2
TN2670
3 4
5
TN2413
6 7
8
