Jacobsen Eclipse 322

GENSET AND BATTERY PACK
4222983 Second Edition 3-5
3
Component Location
Model 62805 (Diesel)
See Figures 3-1 and 3-2.

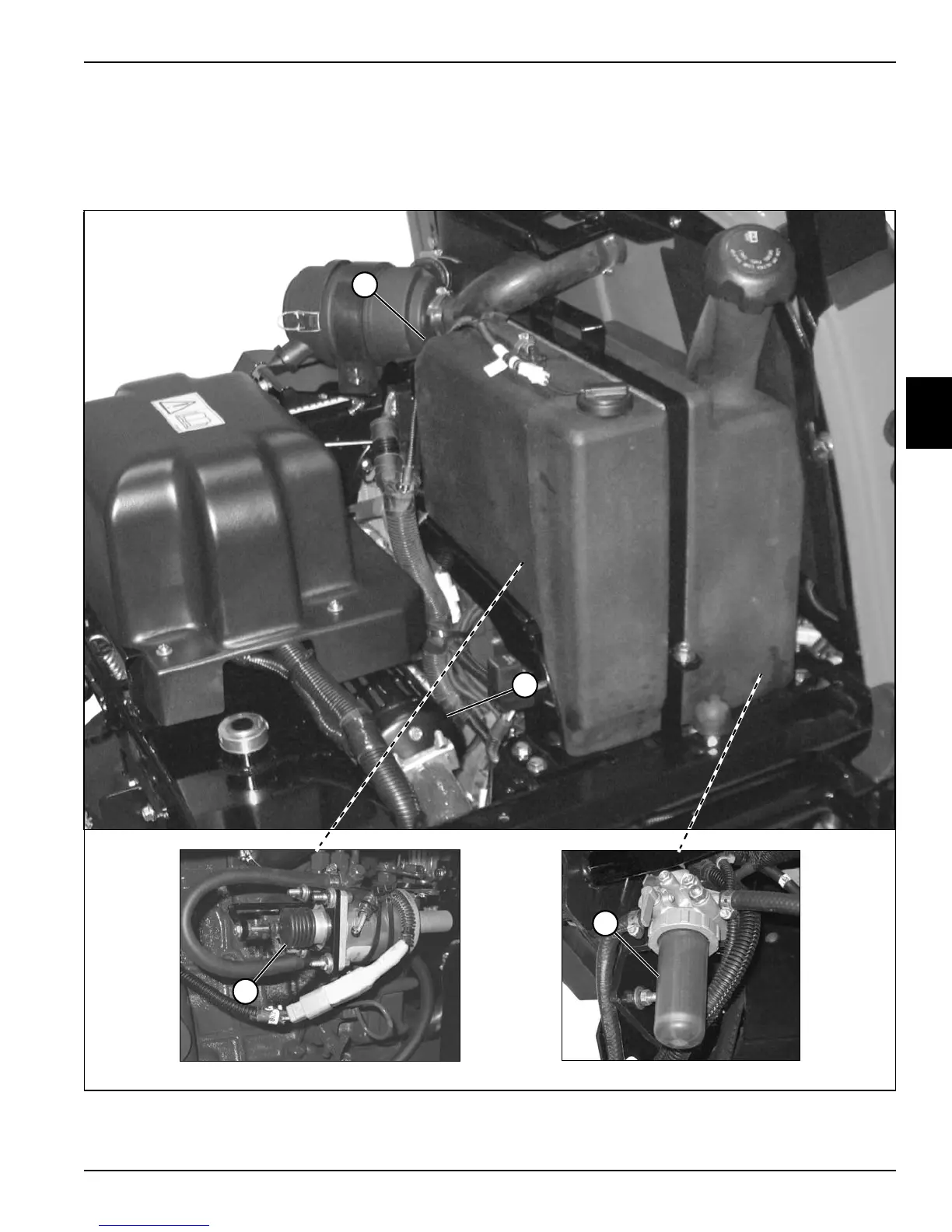

Figure 3-1: Component Location—Right Side
1 Fuel Tank 2 Muffler 3 Throttle Actuator 4 Fuel Filter
4
2
TN2436,TN2750,TN2443
1
3
