4-160 4222983 Second Edition
ELECTRICAL
4
Rectifier Repair Kit (Gas and Diesel)
Removal and Installation

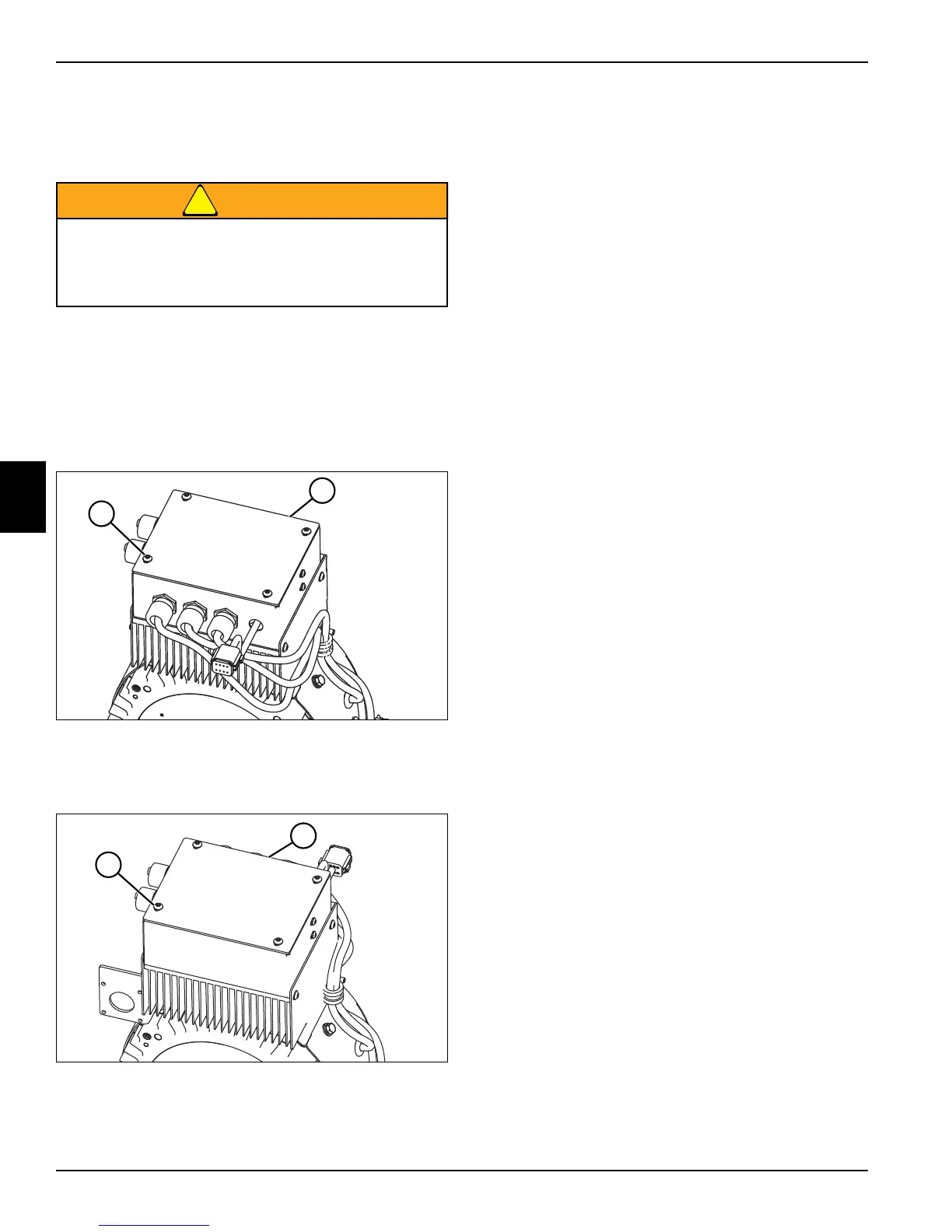

See Figures 4-152 and 4-153.
WARNING
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. For Eclipse 322 Model 62803 (Gas), proceed to
step 6.
3. Remove fuel tank. (See “Fuel Tank (Diesel)” on
page 3-19.)
Figure 4-152
4. Remove four screws (1) and cover (2).
5. Proceed to step 7.
Figure 4-153
6. Remove four screws (3) and cover (4).
7. Replace rectifier repair kit components as needed.
(See “Disassembly and Assembly” on page 4-161.)
Installation Note
If replacing rectifiers, note markings on top of rectifiers
and install in same orientation.
Be sure that the key switch is off, all electrical
accessories are turned off, and the 12-volt and
48-volt power connectors are disconnected
before starting work on machine.
TN2721
2
1
TN2733
4
3
