Jacobsen Eclipse 322

ELECTRICAL
4222983 Second Edition 4-161
4
Disassembly and Assembly

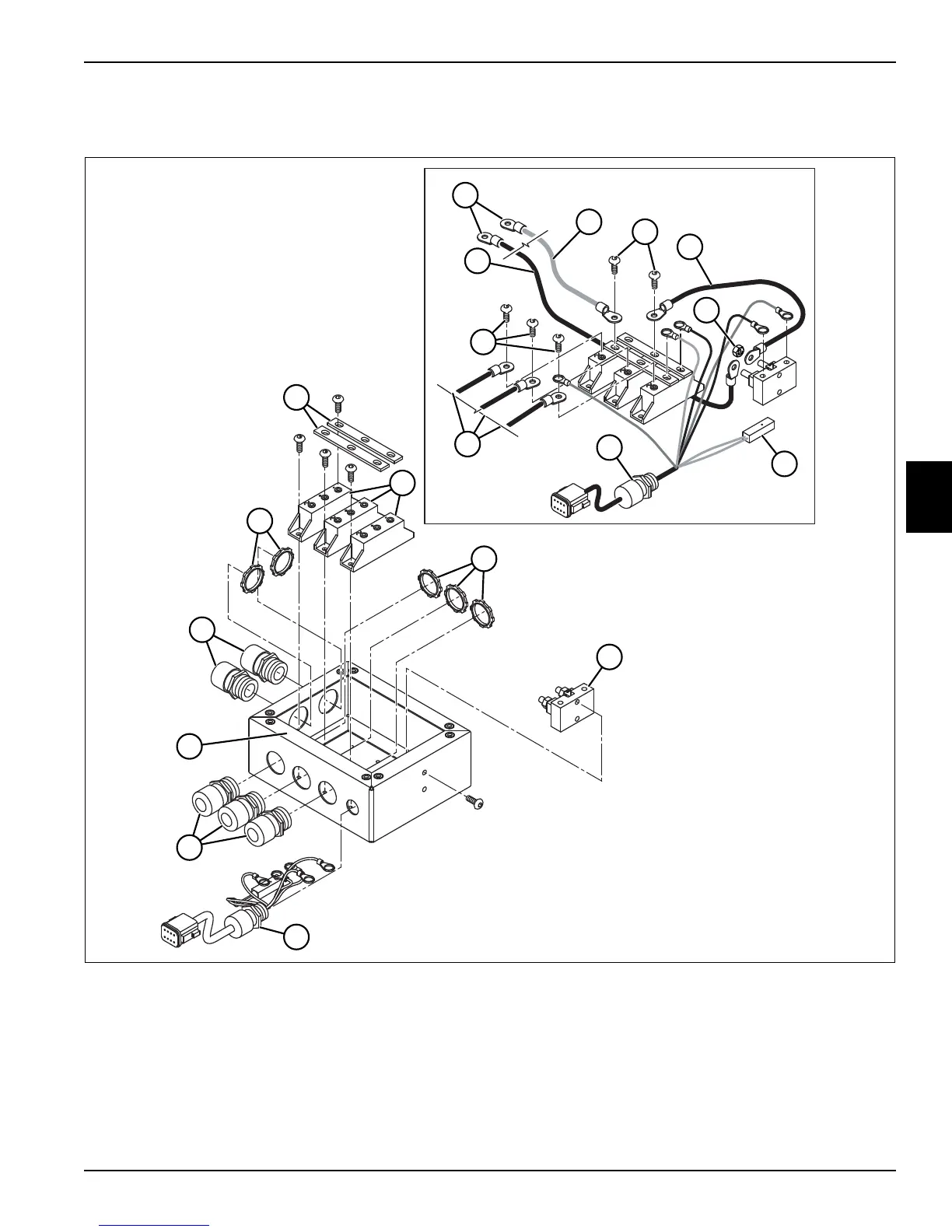

See Figure 4-154.
Figure 4-154
1 To PDU 6 Rectifier Temperature Sensor 10 Black Cable 14 150A Shunt
2 Red Cable 7 Rectifier Harness 11 Bus Bar 15 3/8” Cable Grip
3 Screw (2) 8 Generator Output 12 Rectifier Diode 16 Housing
4 Rectifier Shunt Cable 9 Screw (3) 13 Conduit Nut 17 1/2” Cable Grip
5 Nut (2)
TN2722
2
10
1
4
6
7
8
11
12
13
13
17
14
15
7
16
9
3
5
