GENSET AND BATTERY PACK
4222983 Second Edition 3-31
3
Fuel Filter (Gas)
Removal and Installation
See Figure 3-54.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Allow the engine to cool completely.
3. Raise the hood.

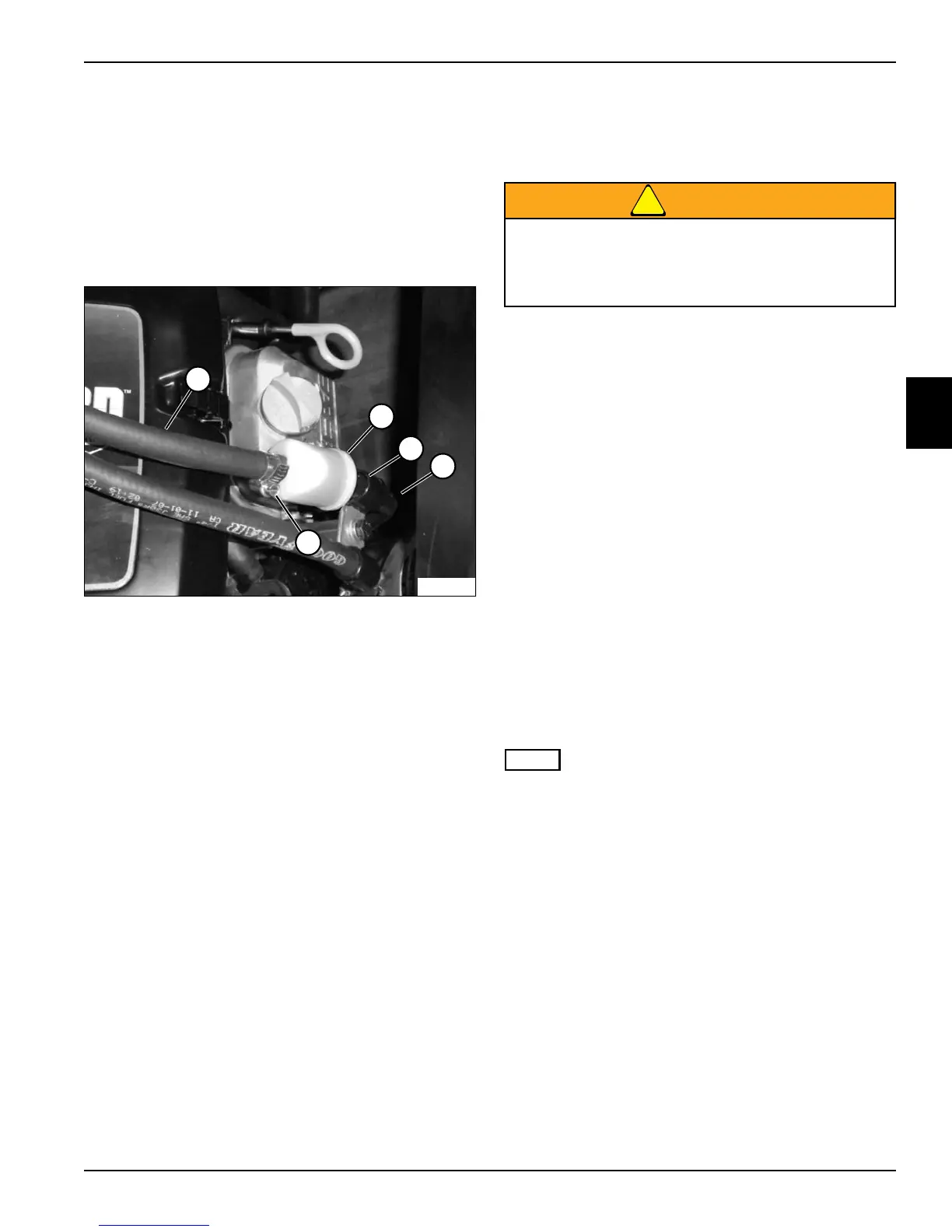

Figure 3-54
4. Loosen hose clamps (3 and 5).
5. Tag and disconnect fuel tank-to-fuel filter hose (1)
from the fuel filter (2). Cap fitting and plug hose to
prevent leakage and contamination.
6. Tag and disconnect fuel filter-to-fuel pump hose (4)
from the fuel filter (5). Cap fitting and plug hose to
prevent leakage and contamination.
Installation Notes
• Install fuel filter by reversing the order of removal.
• Make sure the flow arrow on the side of the fuel filter
is aligned with the fuel tank-to-fuel pump flow
direction.
Genset (Gas)
Removal and Installation
See Figures 3-55 through 3-64.
WARNING
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Allow the engine to cool completely before
attempting to service the engine.
3. Swing center cutting unit from beneath the machine.
4. Raise the hood.
5. Remove cowlings.
6. Remove starter battery. (See “Starter Battery” on
page 3-39.)
7. Remove starter battery tray. (See “Starter Battery
Tray” on page 3-40.)
8. Remove muffler and exhaust assembly. (See “Muffler
(Gas)” on page 3-28.)
9. Remove throttle actuator. (See “Throttle Actuator
(Gas)” on page 3-29.)
10. Remove GCU. (See “GCU” on page 4-144.)
11. Remove fuel tank. (See “Fuel Tank (Gas)” on
page 3-29.)
12. Disconnect choke cable from engine.
NOTE
Label all wires before disconnecting to ensure correct
installation.
13. Tag and disconnect the wiring harness at the voltage
regulator, ignition modules, fuel shutoff solenoid,
starter motor, and starter solenoid.
TN2796
5
1
2
3
4
Be sure that the key switch is off, all electrical
accessories are turned off, and the 12-volt and
48-volt power connectors are disconnected
before starting work on vehicle.
To Next Page
