3-20 4222983 Second Edition
GENSET AND BATTERY PACK
3

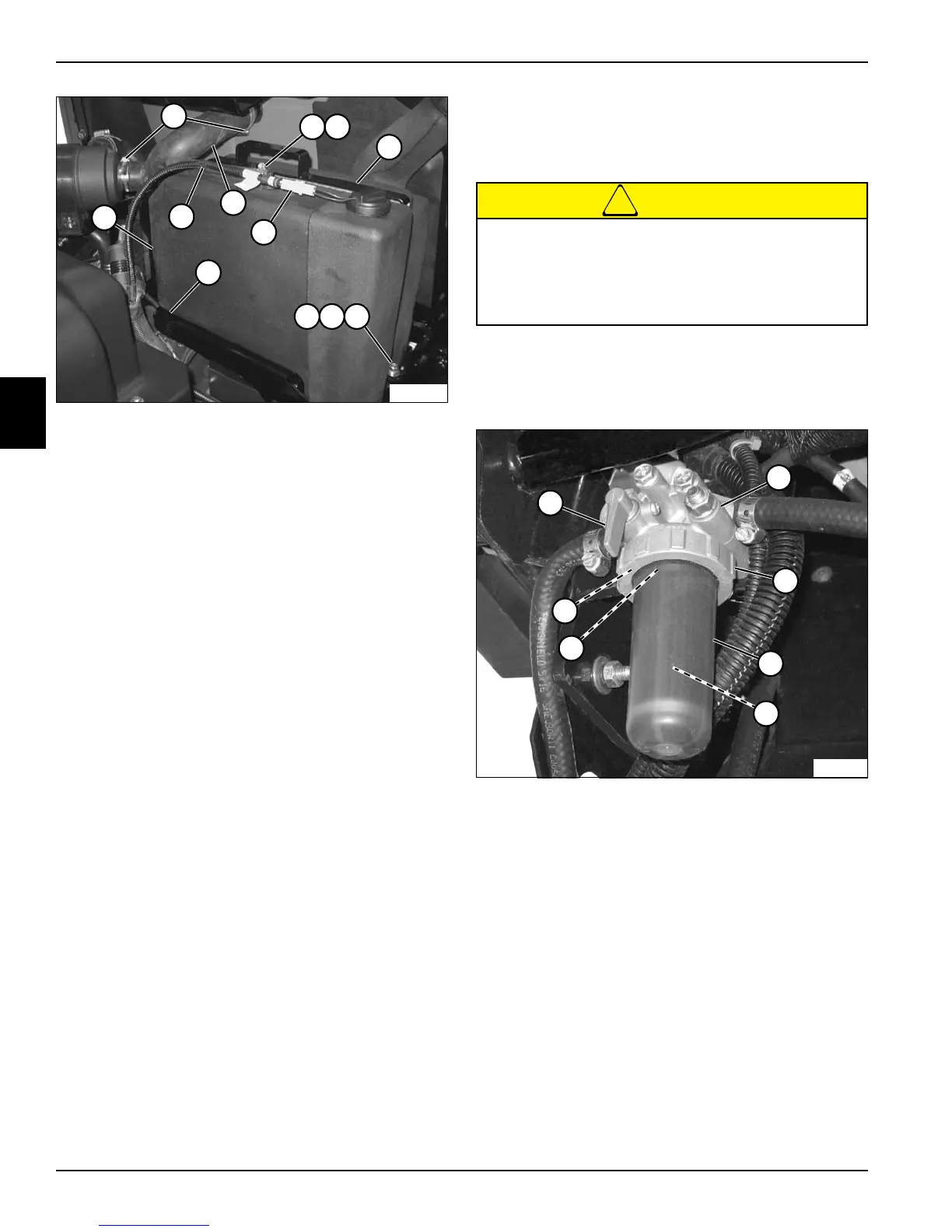

Figure 3-29
13. Loosen hose clamps (6) and remove air intake hose
(15).
14. Cut cable tie (16).
15. Tag and disconnect wire connector (14).
16. Loosen hose clamp (7).
17. Tag and disconnect fuel hose (8). Cap fitting and plug
fuel hose to prevent leakage and contamination.
18. Remove screw (10), lock washer (11), and flat
washer (12).
19. Lift and disengage strap (9) from fuel tank bracket
(13) and secure out of the way.
20. Remove fuel tank (17) from machine.
21. Tag and disconnect fuel hose (4) from bottom of fuel
tank.
Installation Notes
• Install fuel tank by reversing the order of removal.
• Use only clean diesel fuel of the correct type (#2
diesel) from a clean, sealed container.
• If fuel was contaminated, install a new fuel filter at
this time. (See “Fuel Filter (Diesel)” on page 3-20.)
• Purge the fuel system. (See “Purging the Fuel
System (Diesel)” on page 3-10.)
Fuel Filter (Diesel)
Removal and Installation
See Figure 3-30.
CAUTION
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Allow the engine to cool completely before servicing.
Figure 3-30
3. Turn the fuel shutoff lever (1) to the horizontal (OFF)
position.
4. Thoroughly clean cup (4) and area surrounding the
fuel filter.
5. Turn cup retaining nut (3) counterclockwise to
remove it.
6. Remove cup (4) and filter element (5). Drain excess
fuel into an appropriate container.
7. Remove O-rings (6 and 7).
12
7
9
TN2702
14
15
11
8
10
16
6
13
17
Diesel fuel is highly flammable. Handle with care.
Use an approved container with a spout that will
fit inside the fuel filler neck. Avoid using
unapproved containers to transport fuel. Keep all
fuel containers clean and closed when not in use.
1
4
3
TN2443
5
6
2
7
