Jacobsen Eclipse 322 Repair Manual

GENSET AND BATTERY PACK
4222983 Second Edition 3-29
3
7. Separate the muffler (6) from the exhaust pipe (2).
8. Inspect the exhaust system for cracks, holes, and
distortion. Replace exhaust gaskets and exhaust
clamps.
Installation Notes
• Install muffler in the reverse order of removal.
• Install new gaskets during installation.
Throttle Actuator (Gas)
Removal and Installation

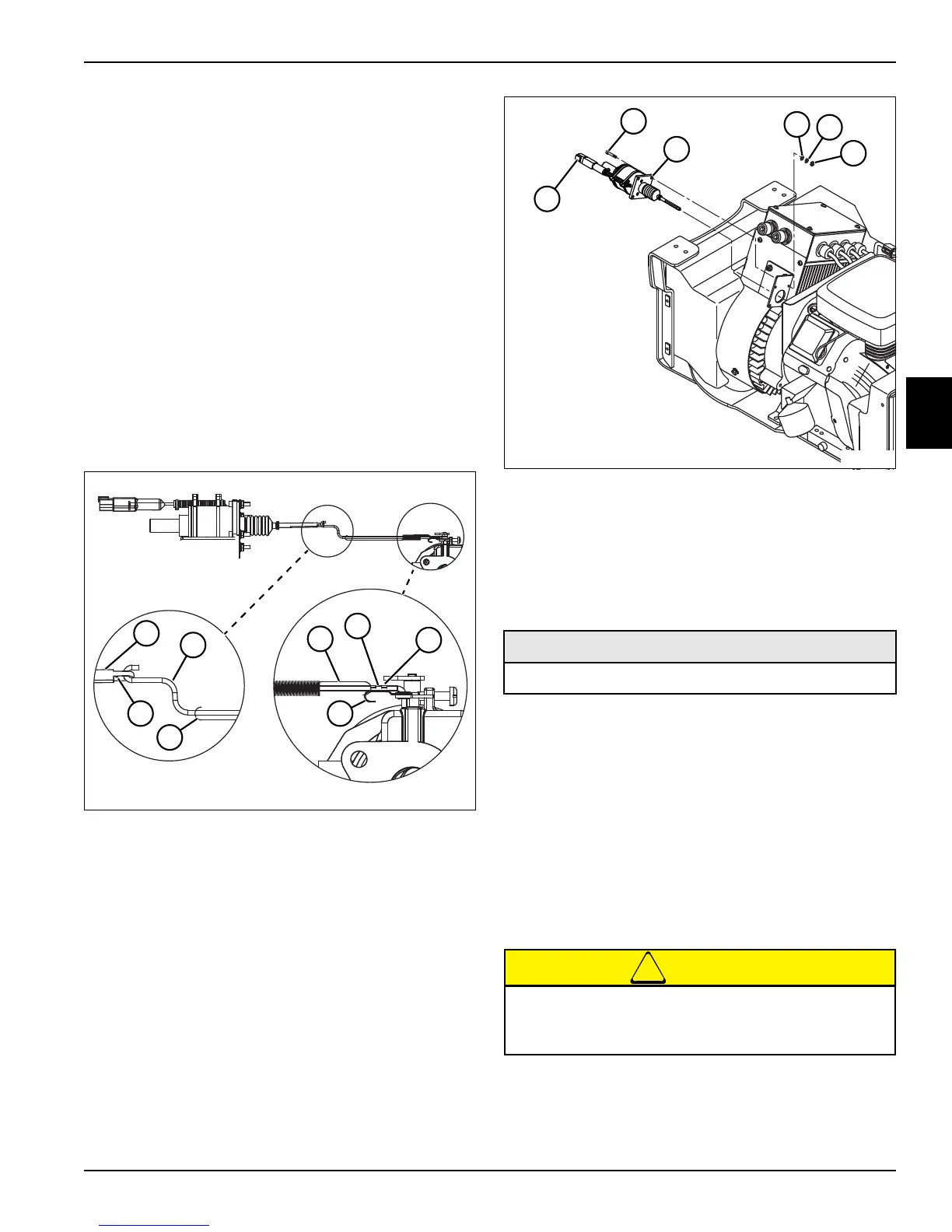

See Figures 3-49 and 3-50.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Allow the engine to cool completely.
3. Raise the hood.
Figure 3-49
4. Rotate clip (5) on throttle plate and disengage engine
throttle linkage (2).
5. Disengage engine throttle linkage (2) from throttle
link (1).
6. Disengage spring (3) from hook (6) on throttle plate.
7. Remove spring (3) from small hole (4) in throttle link
(1).
8. Remove engine throttle linkage (2).
Figure 3-50
9. Tag and disconnect throttle actuator connector (12).
10. Remove four nuts (11), lock washers (10), flat
washers (9), and screws (7).
11. Remove throttle actuator (8).
Installation Notes
•
• Install throttle actuator by reversing the order of
removal.
• Apply Loctite
®
242 (Blue) to four screws (7) prior to
installation.
• Adjust throttle actuator linkage. (See “Throttle
Actuator Adjustment (Gas)” on page 3-11.)
Fuel Tank (Gas)
Removal and Installation
See Figures 3-51 through 3-53.

CAUTION
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Allow the engine to cool completely.
T
N2753
TN2753
3
4
3
2
5
6
2
1
Required Materials
Loctite
®
242 (Blue)
Diesel fuel is highly flammable. Do not drain fuel
indoors. Heaters can ignite fuel vapors. Use
extreme caution when draining fuel.
TN2706
7
8
9
10
11
12
