Jacobsen Eclipse 322 Repair Manual

ELECTRICAL
4222983 Second Edition 4-147
4
NOTE
For Eclipse 322 Model 62801 (Electric), support the
battery tray using a suitable lifting device.
5. Support the resistor bank assembly (6) using a
suitable lifting device.
6. Remove nuts (1), lock washers (2), flat washers (3),
screws (4), and resistor bank assembly (6).

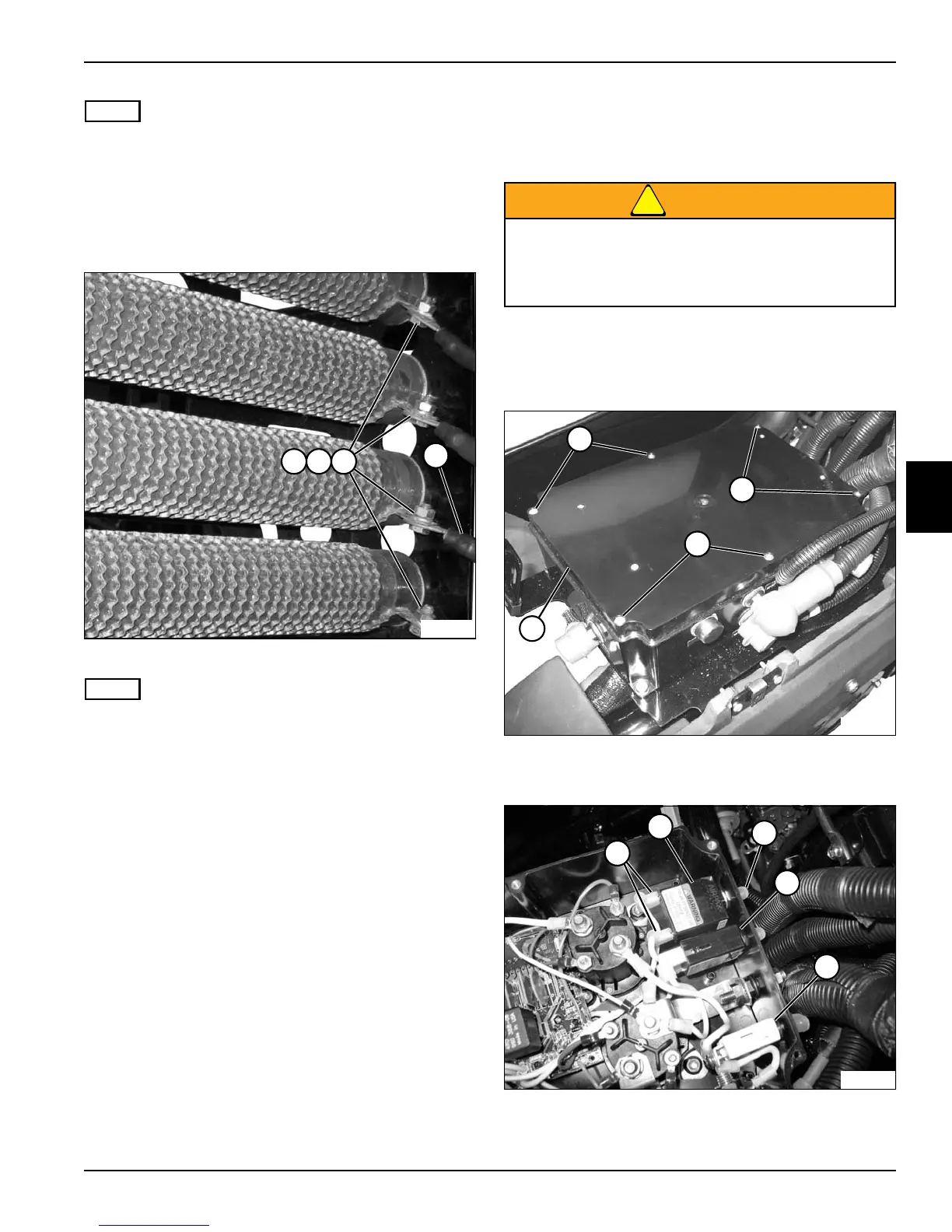

Figure 4-118
NOTE
Label all wires before disconnecting to ensure correct
installation.
7. Remove nuts (8), lock washers (9), and wire
connectors (10) on each side of the resistor bank
assembly, and remove resistor bank jumper harness
(11).
Installation Notes
• Install resistor bank assembly by reversing the order
of removal.
• Apply dielectric grease (Jacobsen PN 365422) to any
connectors removed.
Circuit Breakers
Removal and Installation
See Figures 4-119 and 4-120.

WARNING
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Remove MCU. (See “MCU” on page 4-138.)
Figure 4-119
3. Remove screws (1) and PDU cover (2).
Figure 4-120
TN2720
9 108
11
Be sure that the key switch is off, all electrical
accessories are turned off, and the 12-volt and
48-volt power connectors are disconnected
before starting work on machine.
TN2665
1
1
1
2
TN2674
4
5
3
6
7
