Jacobsen Eclipse 322 Repair Manual

7-16 4222983 Second Edition
ACCESSORIES AND MISCELLANEOUS REPAIR
7
Front Cover
Removal and Installation
See Figure 7-27.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)

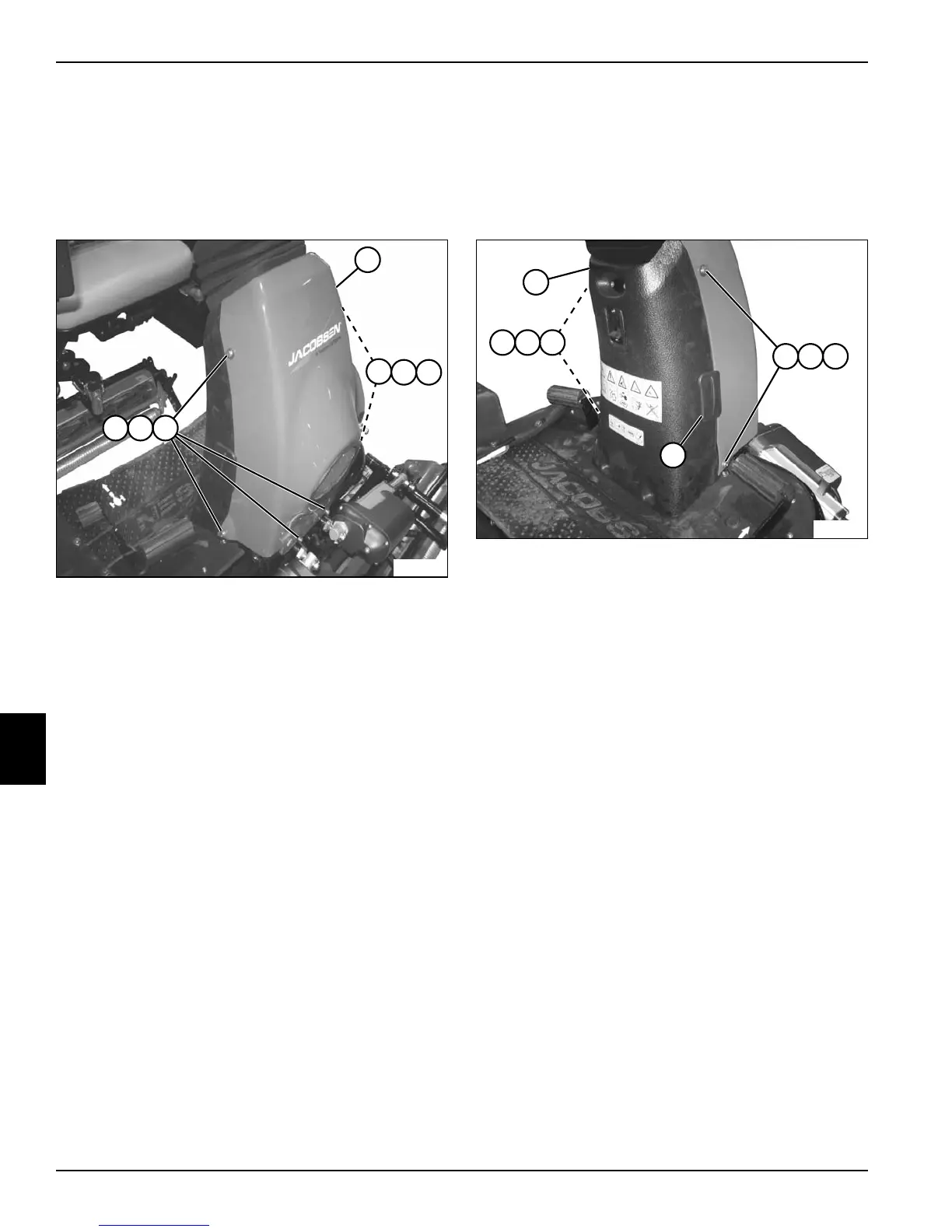

Figure 7-27
2. Remove screws (2), spacers (3), and washers (4).
3. Remove front cover (1).
Installation Note
Install front cover by reversing the order of removal.
Rear Cover
Removal and Installation
See Figure 7-28.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
Figure 7-28
2. Remove screws (2), spacers (3), and washers (4).
3. Remove rear cover (1).
4. Disengage LED access cover (5) from rear cover.
Installation Note
Install rear cover by reversing the order of removal.
TN2359
1
32 4
2
3 4
TN2386
432
432
1
5
