Jacobsen Eclipse 322 Repair Manual

6-18 4222983 Second Edition
CUTTING UNITS
6
Grass Catcher Yoke Adjustment
See Figure 6-7.

CAUTION
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)

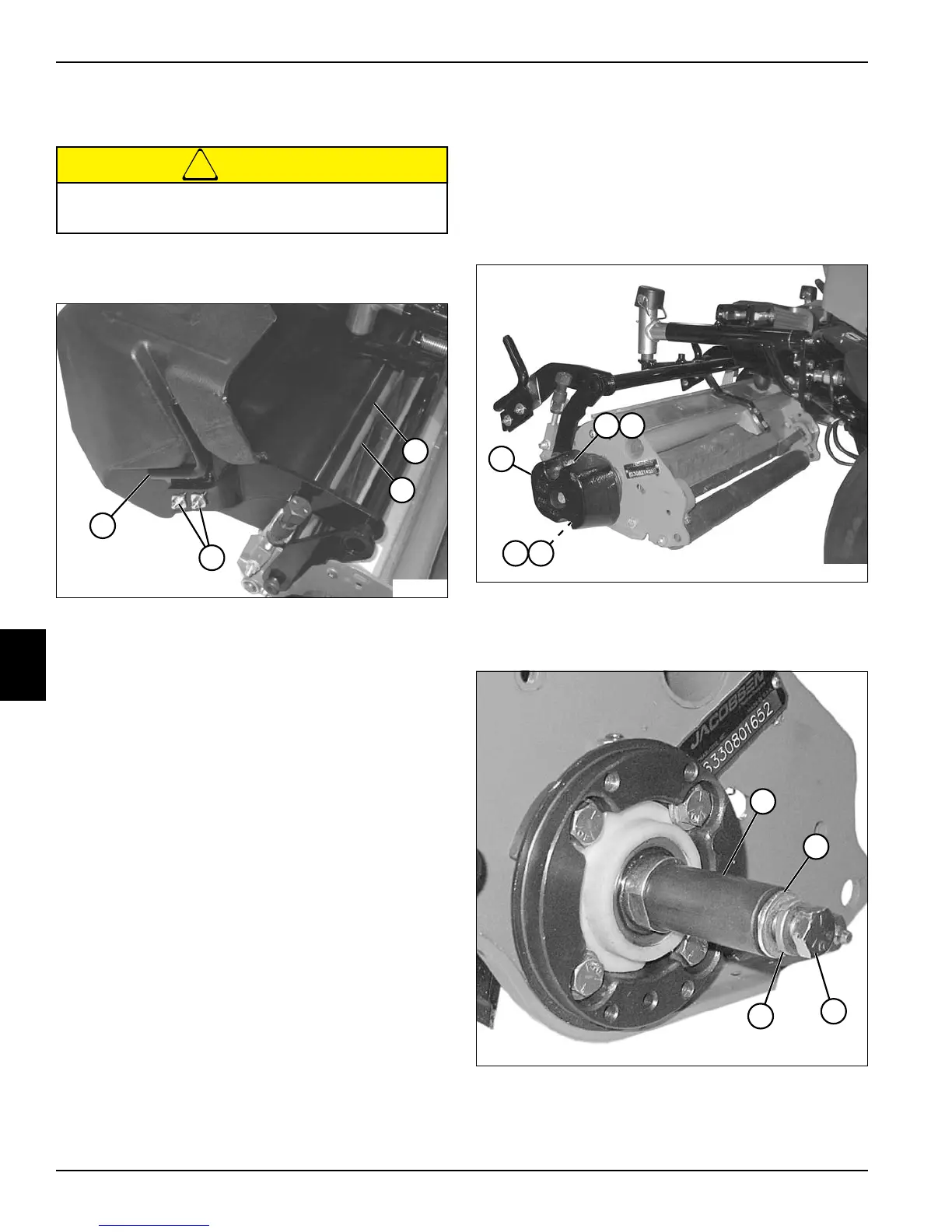

Figure 6-7
2. Loosen nuts (2) on both sides of cutting unit.
3. Adjust grass catcher yoke (1) as required so lip of
grass catcher (4) is resting evenly on reel crossbar
(3).
4. Tighten nuts (2) on both sides of cutting unit.
Reel Bearing Pre-Load Adjustment
See Figures 6-8 through 6-12.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Back bedknife away from reel. (See
“Bedknife-to-Reel Clearance Adjustment” on
page 6-16.)
Figure 6-8
3. Remove screws (2), lock washers (3), and
counterweight (1).
Figure 6-9
4. Remove screw (6), lock washer (7), washer (5), and
spacer (4).
To prevent personal injury and damage to the
cutting edges, handle the reel with extreme care.
TN2767
3
2
4
1
TN2650
1
2 3
2 3
TN2653
4
6
5
7
