ACCESSORIES AND MISCELLANEOUS REPAIR
4222983 Second Edition 7-7
7
Armrest Assembly
Removal and Installation

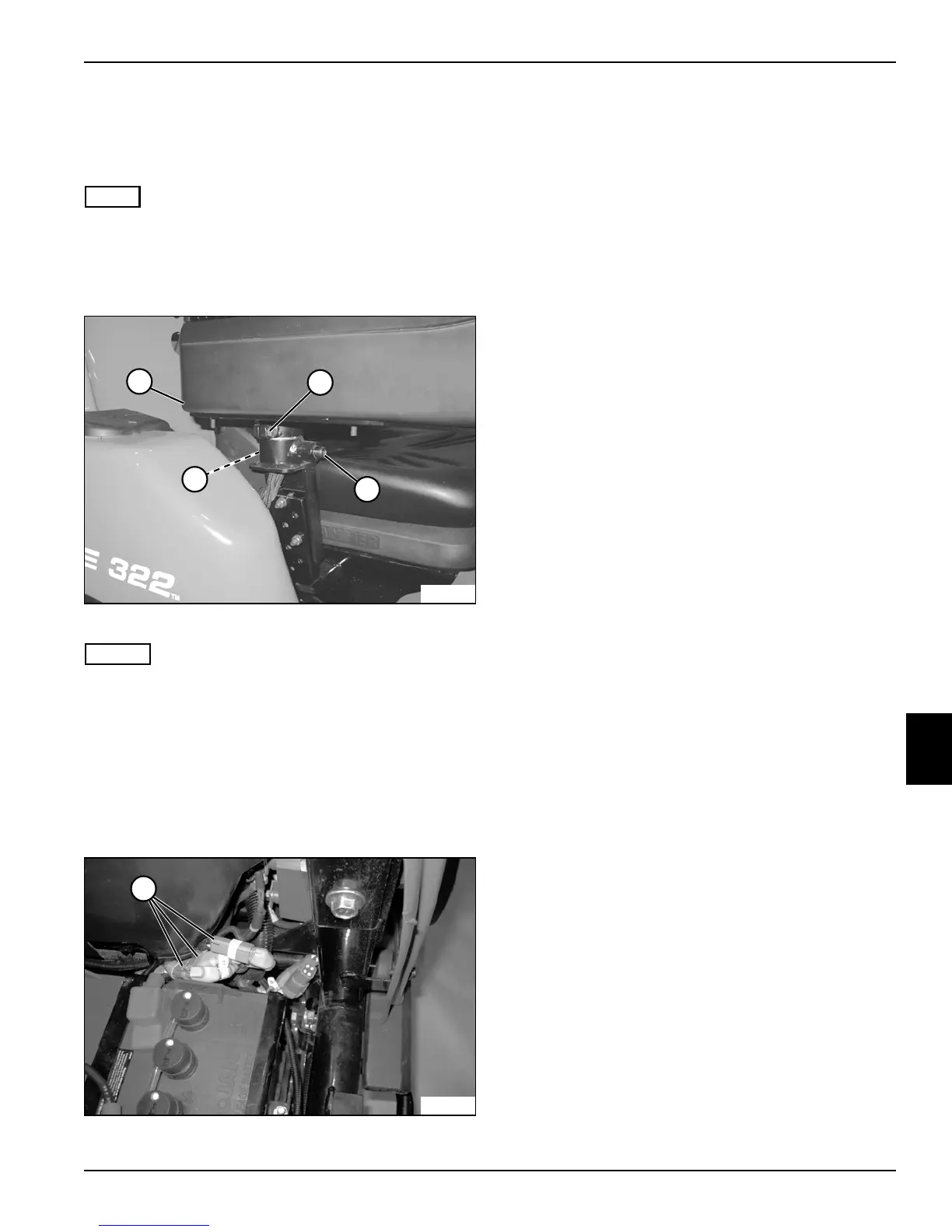

See Figures 7-9 and 7-10.
NOTE
Armrest and instrument panel is removed as one
assembly.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
Figure 7-9
NOTES
• Label all wires before disconnecting to ensure correct
installation.
• If moving the armrest assembly aside, use caution to
prevent stretching or pinching the wires.
2. Loosen the lock collar screw (2) and set screw (3)
from the armrest assembly (1).
3. Remove cable ties securing wire connectors and wire
harness.
Figure 7-10
4. Disconnect wiring harness connectors (5).
5. Remove the armrest assembly, carefully guiding the
wire harness through the lock collar bracket.
Installation Notes
• Apply dielectric grease (Jacobsen PN 365422) to any
connectors removed.
• Use new cable ties to secure wire connectors and
wire harness.
• Lubricate grease fitting (4).
• Install armrest assembly by reversing the order of
removal.
3
1
TN2354
2
4
TN2355
5
