Jacobsen Eclipse 322 Repair Manual

5-6 4222983 Second Edition
CHASSIS
5
Repair
Reel Lift Actuators
Removal and Installation
See Figure 5-5.
NOTES
• The right reel lift actuator is shown; the left and
center reel lift actuators are similar.
• If working on the center cutting unit, swing the cutting
unit out from the machine and lock into position.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
NOTE
For removal purposes, do not place the reel lift actuator
in the fully down position.

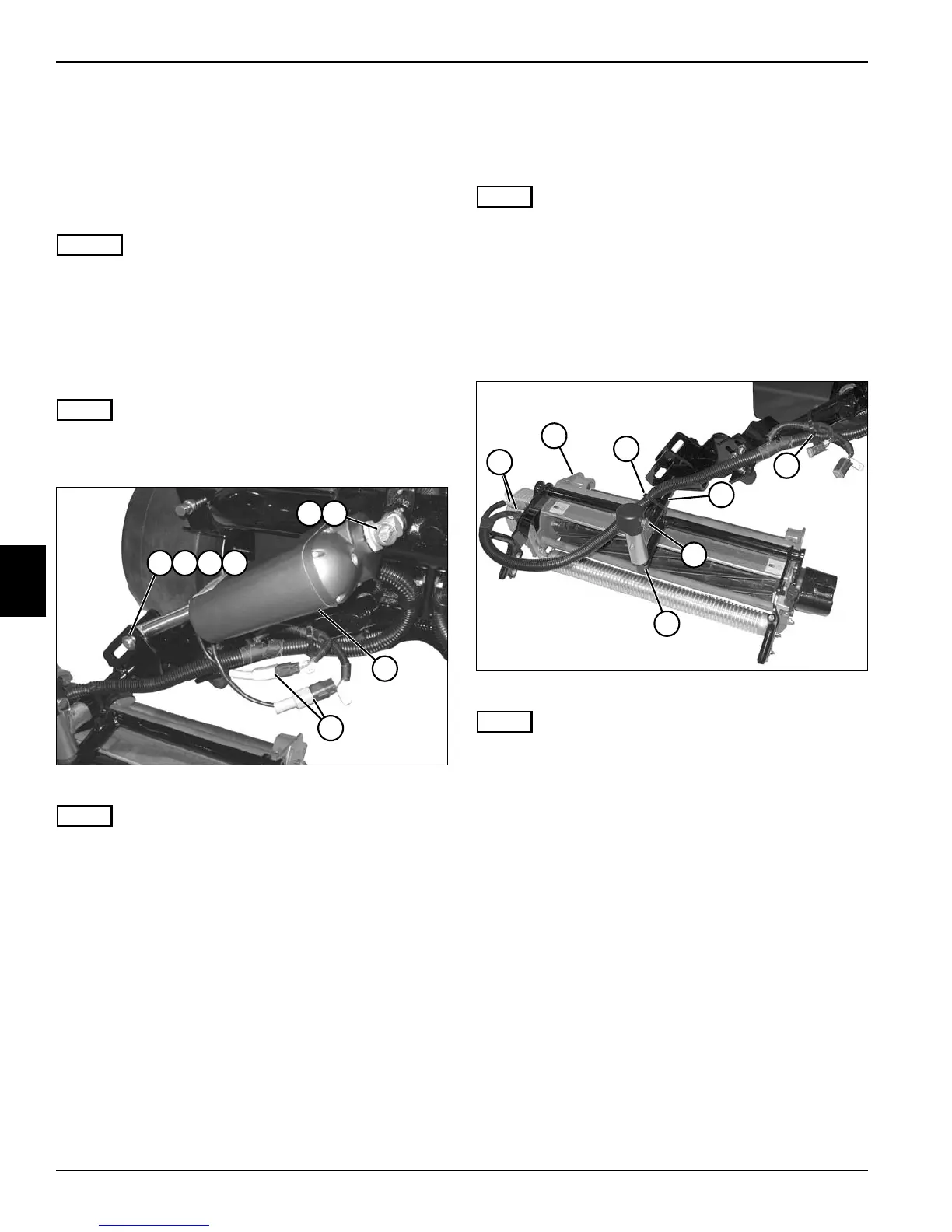

Figure 5-5
NOTE
Label all wires before disconnecting to ensure correct
installation.
2. Disconnect reel lift actuator wire connectors (8).
3. Remove cotter pin (1), clevis pin (2), two flat washers
(3), and two spacers (4) from the reel lift actuator (7).
4. Remove cotter pin (5) and flat washer (6).
5. Remove the reel lift actuator.
Installation Notes
• Install reel lift actuator by reversing the order of
removal.
• Apply dielectric grease (Jacobsen part number
365422) to connections.
Right and Left Lift Arms
Removal and Installation
See Figures 5-6 and 5-7.
NOTE
The right lift arm is shown; the left lift arm is similar.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Remove reel lift actuator. (See “Reel Lift Actuators”
on page 5-6.)
3. Remove reel leveling rod. (See “Reel Leveling Rod”
on page 6-23.)
Figure 5-6
NOTE
Label all wires before disconnecting to ensure correct
installation.
4. Cut cable ties (3).
5. Disconnect the reel drive motor wire connectors (1).
6. Remove the lock pin (5) from the yoke shaft (6).
7. Pull the lift arm (4) up and remove the reel assembly
(2).
TN2395
5 6
1 32 4
8
7
TN2398
1
4
5
2
6
3
3
