Jacobsen Eclipse 322 Repair Manual

ACCESSORIES AND MISCELLANEOUS REPAIR
4222983 Second Edition 7-5
7
Dome Light
Removal and Installation
See Figure 7-4.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)

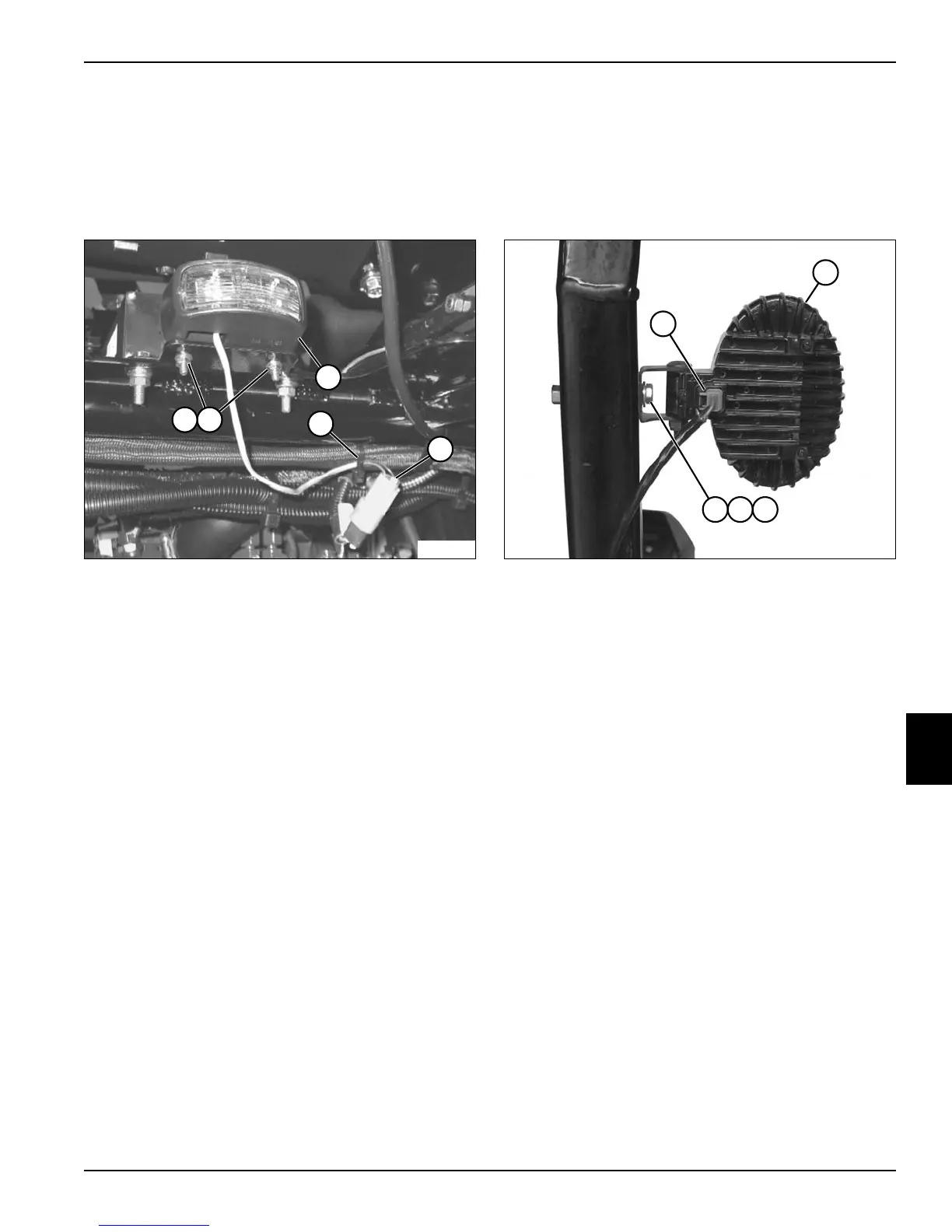

Figure 7-4
2. Cut cable tie (4).
3. Tag and disconnect dome light wire connector (5).
4. Remove two nuts (1) and lock washers (2).
5. Remove dome light (3).
Installation Notes
• Install dome light by reversing the order of removal.
• Use new cable tie to secure wire harness and wire
connector.
OPS Light
Removal and Installation
See Figure 7-5.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
Figure 7-5
2. Tag and disconnect OPS wire connector (1).
3. Remove nut (3), screw (4), and flat washer (5) from
OPS (2).
4. Remove OPS light (2).
Installation Note
Install OPS light by reversing the order of removal.
TN2657
5
21
4
3
2
TN2431
3 4
1
5
