ACCESSORIES AND MISCELLANEOUS REPAIR
4222983 Second Edition 7-11
7

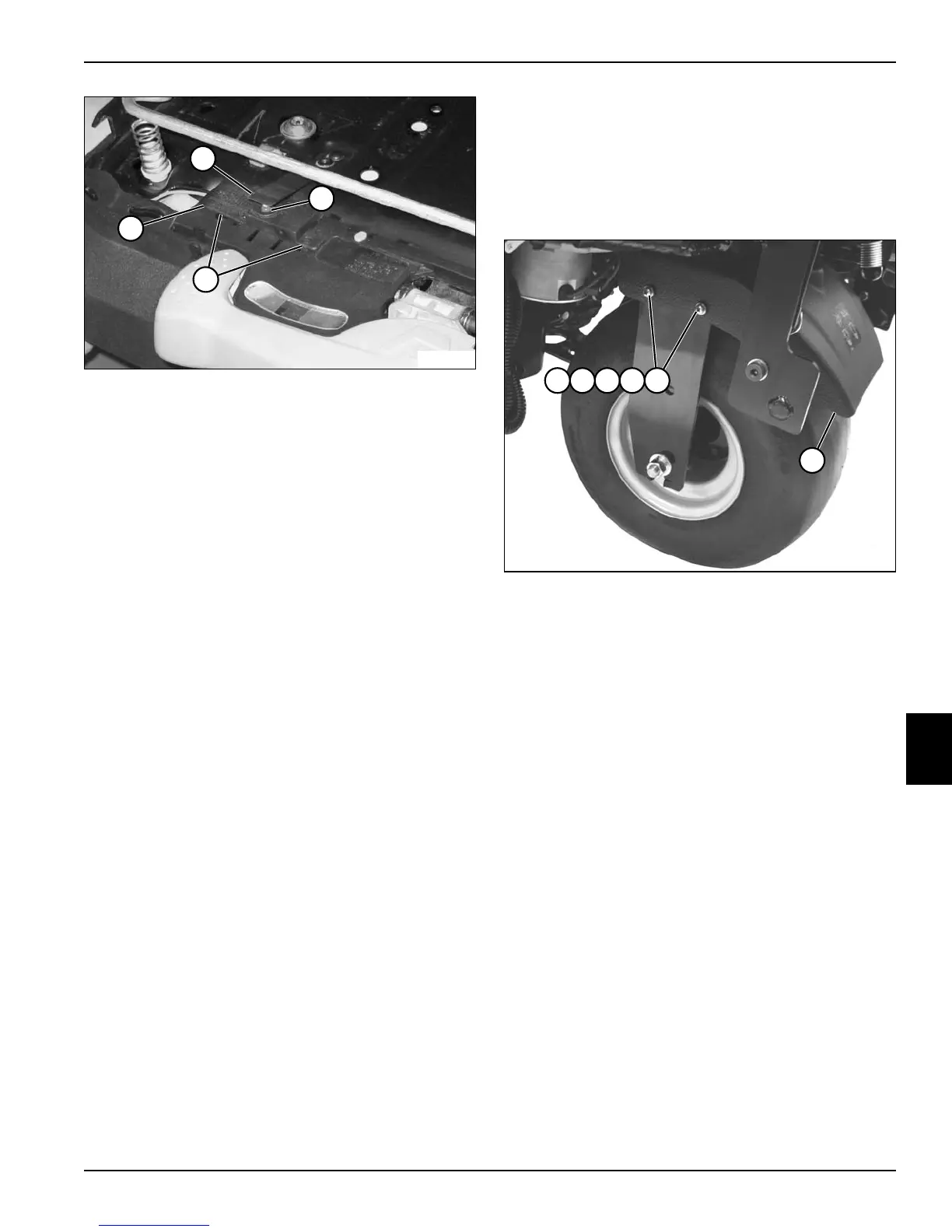

Figure 7-18
8. Disengage switch cover tabs (8) and remove cover
(9).
9. Raise end of switch actuator (6) and remove seat
switch (7).
Installation Notes
• Install seat switch by reversing the order of removal.
• Use new cable ties to secure wire harness and wire
connector.
Rear Fender
Removal and Installation
See Figure 7-19.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
Figure 7-19
2. Remove two screws (1), flanges (2), rubber washers
(3), flat washers (4), and nuts (5) on both sides of
rear fender (6).
3. Remove rear fender (6).
Installation Note
Install rear fender by reversing the order of removal.
TN1989
8
6
7
9
TN2658
53 4
6
21
