3-22 4222983 Second Edition
GENSET AND BATTERY PACK
3
Fuel Shutoff Solenoid (Diesel)
Removal and Installation
See Figures 3-32 and 3-33.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Allow the engine to cool completely.
3. Raise the hood.

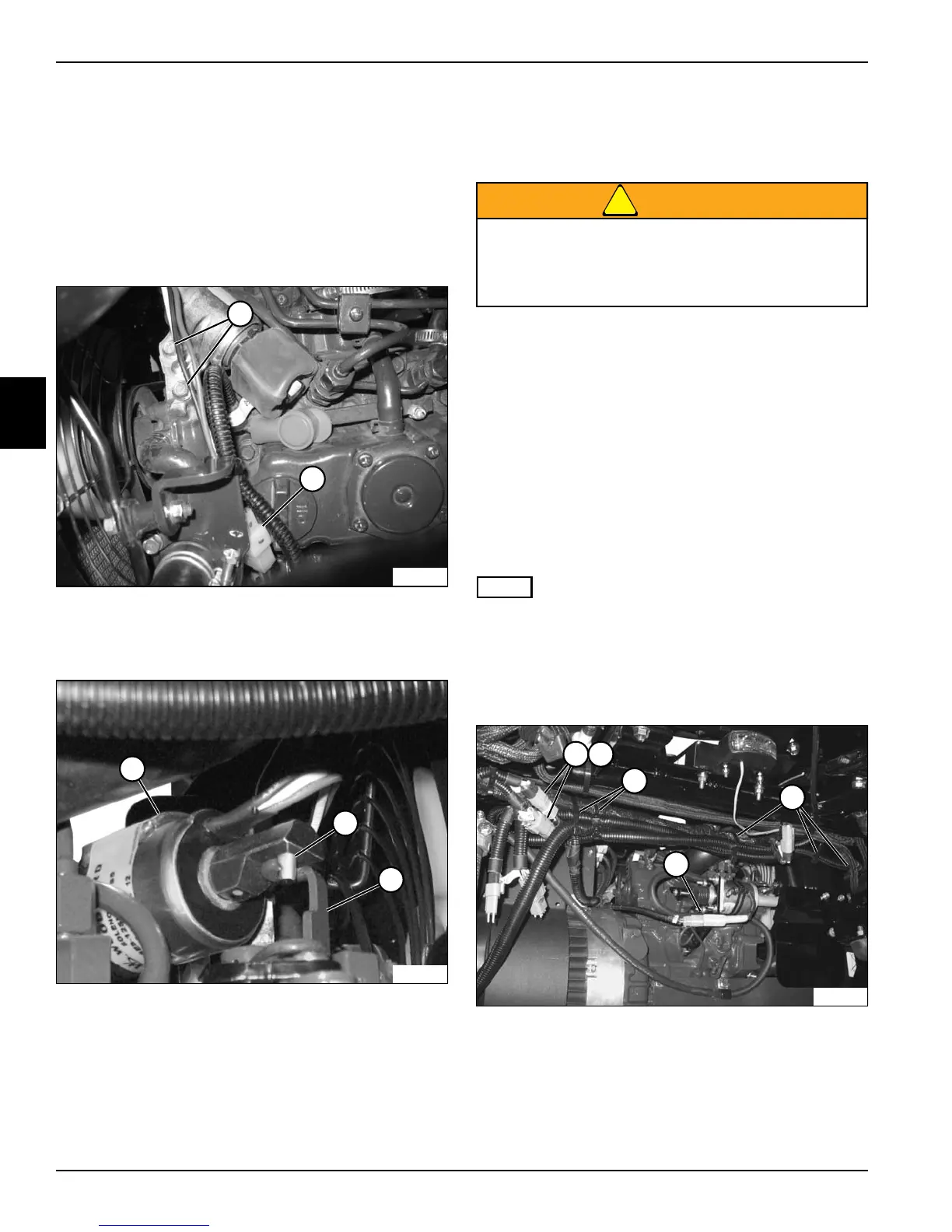

Figure 3-32
4. Tag and disconnect wire connector (2).
5. Remove screws (1).
Figure 3-33
6. Disengage fuel shutoff solenoid pin (4) from throttle
lever (5) and remove fuel shutoff solenoid (3).
Installation Note
Install fuel shutoff solenoid by reversing the order of
removal.
Genset (Diesel)
Removal and Installation
See Figures 3-34 through 3-44.
WARNING
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Allow the engine to cool completely before
attempting to service the engine.
3. Swing center cutting unit from beneath the machine.
4. Raise the hood.
5. Remove cowlings. (See “Cowlings” on page 7-18.)
6. Remove starter battery. (See “Starter Battery” on
page 3-39.)
7. Remove starter battery tray. (See “Starter Battery
Tray” on page 3-40.)
NOTE
Label all wires before disconnecting to ensure correct
installation.
8. Tag and disconnect the wiring harness at the engine
temperature switch, alternator, fuel shutoff solenoid,
starter, engine oil pressure switch, and glow plug.
Figure 3-34
9. Tag and disconnect genset-to-main harness
connectors (1 and 2).
10. Tag and disconnect throttle actuator connector (4).
11. Cut cable ties (3).
TN2447
1
2
TN2448
3
5
4
Be sure that the key switch is off, all electrical
accessories are turned off, and the 12-volt and
48-volt power connectors are disconnected
before starting work on vehicle.
TN2711
1 2
3
3
4
