Jacobsen Eclipse 322 Repair Manual

7-10 4222983 Second Edition
ACCESSORIES AND MISCELLANEOUS REPAIR
7

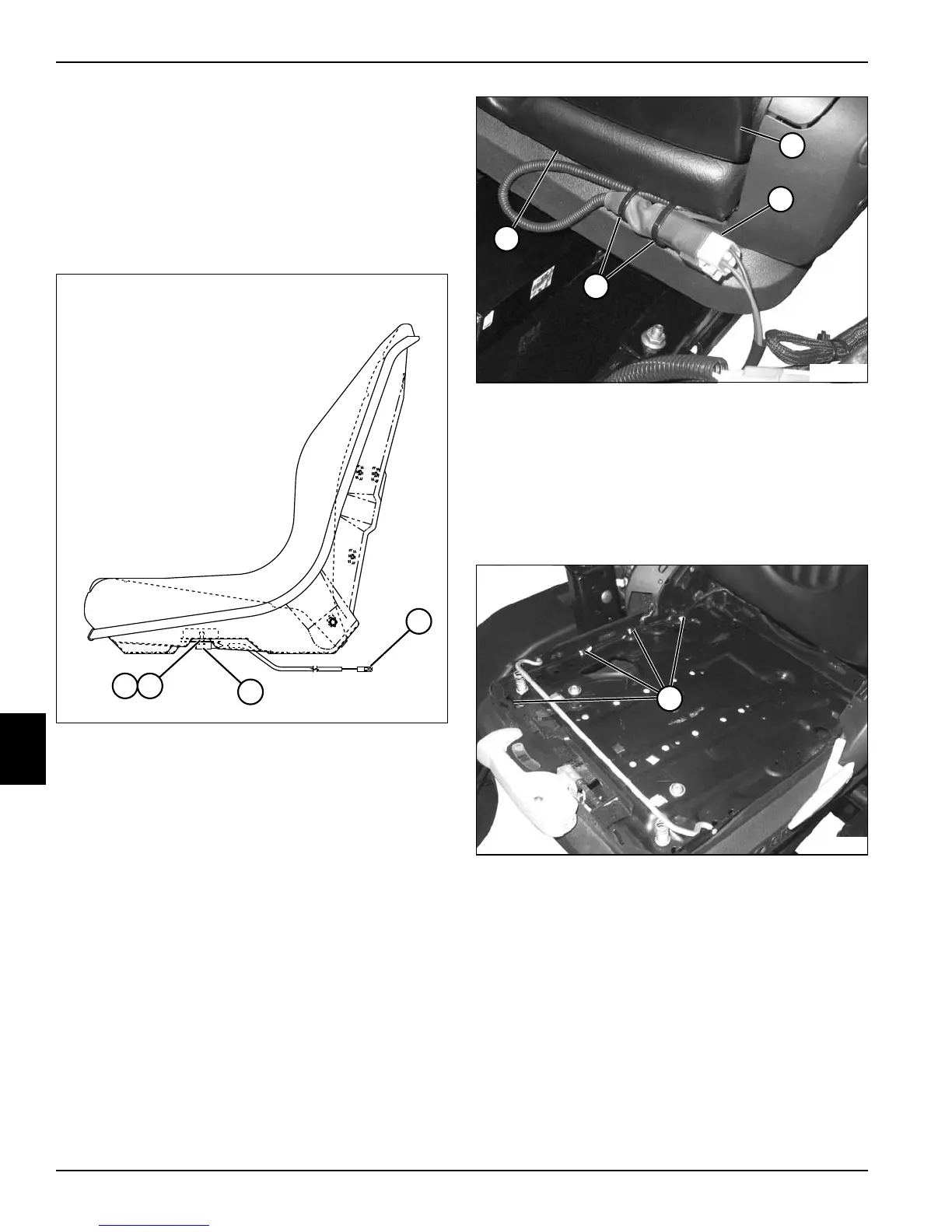

Seat Switch
Removal and Installation
Standard Seat
See Figure 7-15.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
Figure 7-15
2. Tag and disconnect the seat switch wire harness
connector (4).
3. Cut two cable ties holding wire harness to frame.
4. Remove two screws (1), two lock washers (2), and
seat switch (3).
Installation Notes
• Install seat switch by reversing the order of removal.
• Use new cable ties to secure wire harness and wire
har ness connector.
Optional Seat
See Figures 7-16 through 7-18.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
Figure 7-16
2. Tag and disconnect the seat switch wire harness
connector (2).
3. Cut cable ties (3).
4. Tilt the seat back rest (1) forward.
5. Raise rear of seat (4) and slide seat forward.
6. Remove seat (4).
Figure 7-17
7. Cut cable ties (5).
TN2425
3
4
1 2
TN2402
2
4
1
3
TN2405
5
