Jacobsen Eclipse 322 Repair Manual

6-20 4222983 Second Edition
CUTTING UNITS
6
Right and Left Reel Stop Bracket
Adjustment

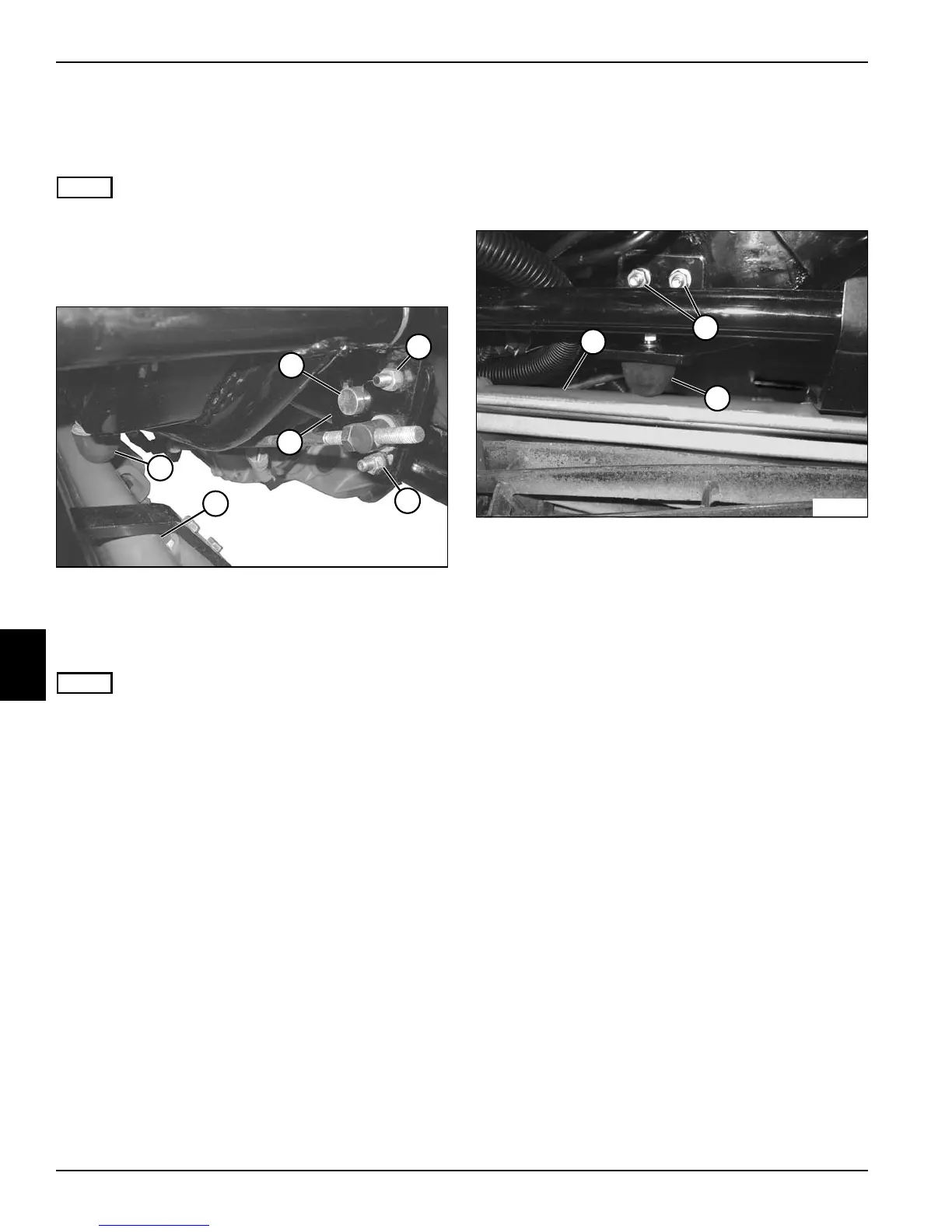

See Figure 6-13.
NOTE
The left reel stop bracket is shown; the right reel stop
bracket is similar.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
Figure 6-13
2. Loosen nuts (2) and lower the reel stop bracket (3).
3. Engage the mow switch and raise cutting unit (4) to
the fully up position.
NOTE
The cutting unit should stop against bumper (5).
4. Position reel stop bracket (3) against the up stop
shaft (1) and tighten nuts (2).
Right and Left Reel Bumper
Adjustment
See Figure 6-14.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
Figure 6-14
2. Loosen nuts (2) and raise reel bumper (3). Tighten
nuts (2) to hold reel bumper in the up position.
3. Engage the mow switch and raise cutting unit (1) to
the fully up position.
4. Loosen nuts (2).
5. Position reel bumper (3) against cutting unit (1) and
tighten nuts (2).
TN2421
2
2
3
1
5
4
TN2423
1
3
2
