3-6 4222983 Second Edition
GENSET AND BATTERY PACK
3

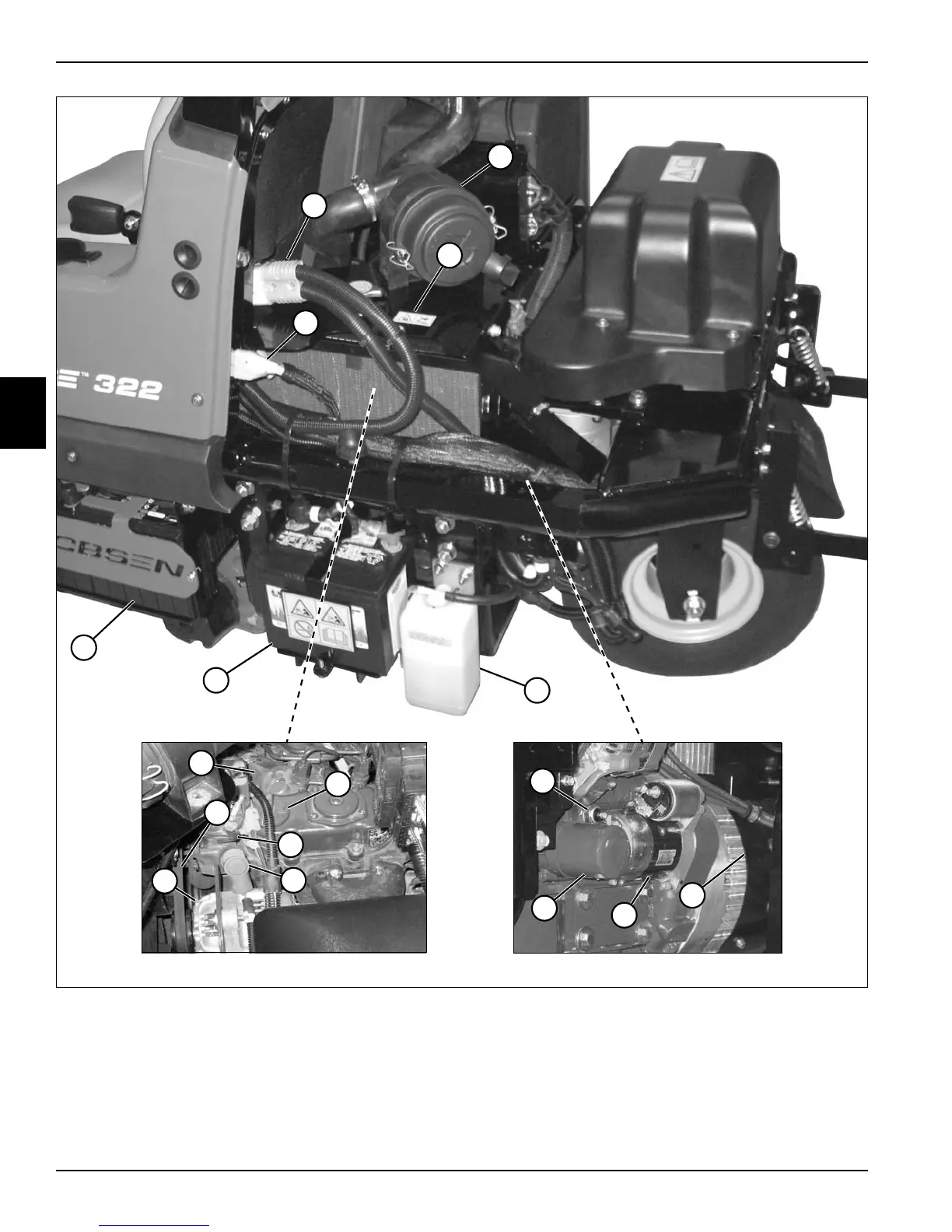

Figure 3-2: Component Location—Left Side
1 48-Volt Connector 7 Radiator Overflow Bottle 13 Fan Belt
2 Air Cleaner Assembly 8 Fuel Shutoff Solenoid 14 Oil Pressure Switch
3 Radiator 9 Oil Fill Cap 15 Genset
4 12-Volt Connector 10 Thermostat 16 Starter Motor
5 Buffer Battery Pack 11 Engine Temperature Switch 17 Oil Filter
6 Starter Battery 12 Alternator
TN2751,TN2441,TN2442
2
7
5
6
17
14
16
15
1
4
3
8
10
9
11
12
13
