Jacobsen Eclipse 322 Repair Manual

5-14 4222983 Second Edition
CHASSIS
5
Traction Pedal
Removal and Installation

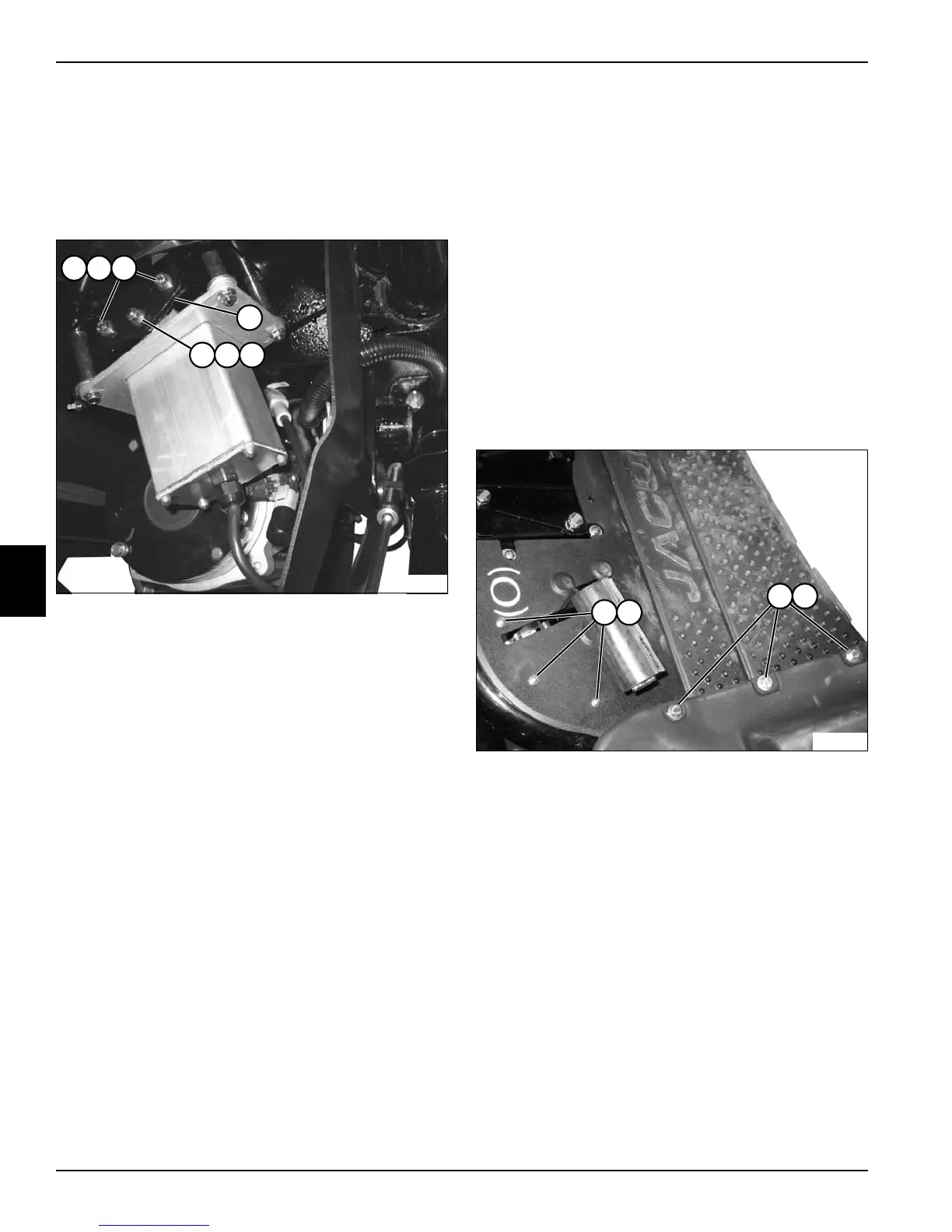

See Figure 5-19.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
Figure 5-19
2. Remove screws (1), lock washers (2), and flat
washers (3).
3. Remove nut (5), lock washer (6), and flat washer (7).
4. Remove traction pedal (4).
Installation Note
Install traction pedal by reversing the order of removal.
Brake Pedal Assembly
Removal and Installation
See Figures 5-20 and 5-21.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Remove brake pedal switch. (See “Brake Pedal
Switch” on page 4-156.)
3. Remove brake pedal position sensor. (See “Brake
Pedal Position Sensor” on page 4-156.)
4. Remove front cover. (See “Front Cover” on
page 7-16.)
5. Remove rear cover. (See “Rear Cover” on
page 7-16.)
6. Remove left fender. (See “Front Fenders” on
page 5-13.)
Figure 5-20
7. Remove screws (1) and washers (2).
8. Remove screws (3) and washers (4).
TN2407
1
5 6 7
2
4
3
TN2682
1 2
43
