CHASSIS
4222983 Second Edition 5-15
5

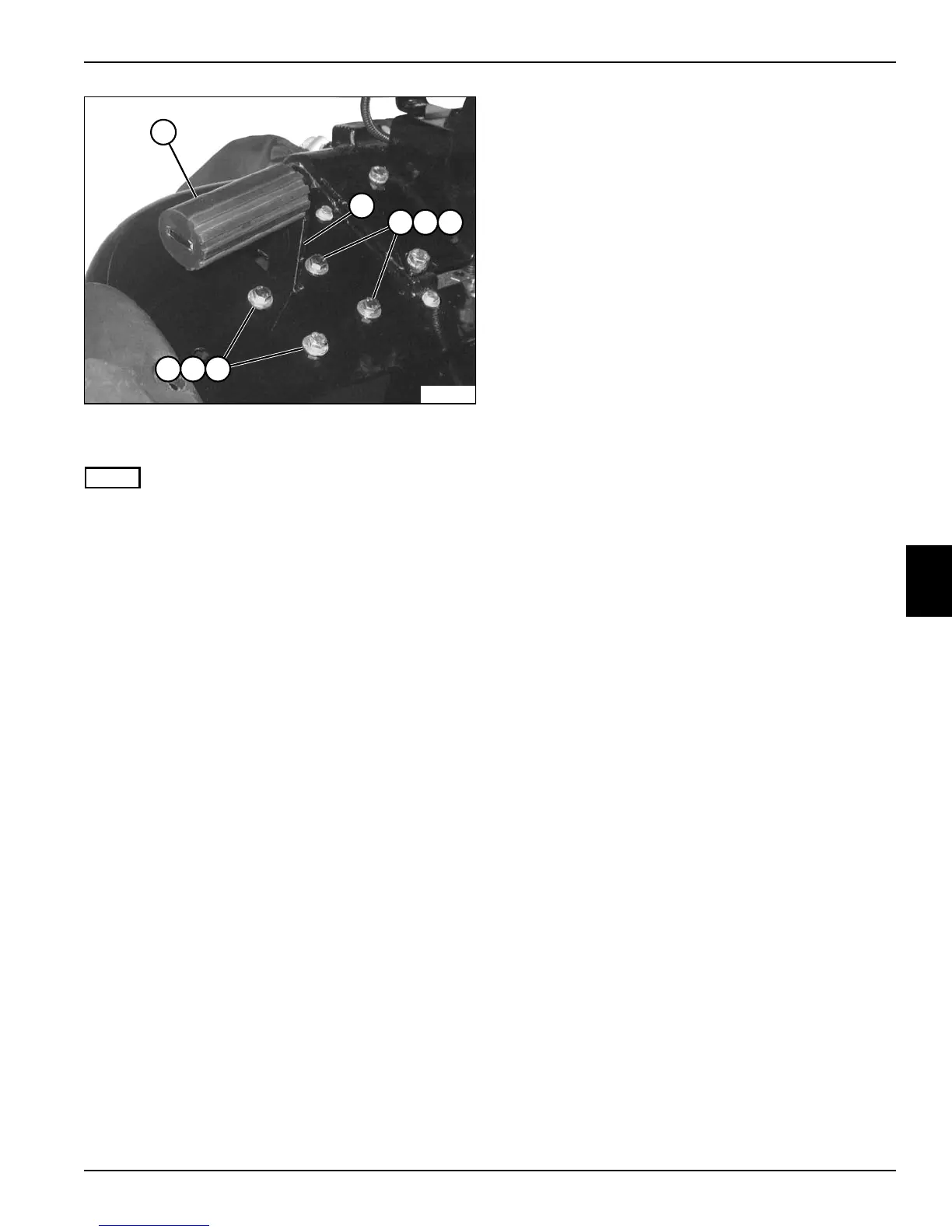

Figure 5-21
9. Remove pedal grip (5).
NOTE
Move floor mat aside to access screws (7).
10. Support brake pedal assembly (6) and remove
screws (7), lock washers (8), and flat washers (9).
11. Rotate and lower the brake pedal assembly to
remove the brake pedal assembly from the machine.
Installation Note
Install brake pedal assembly by reversing the order of
removal.
TN2414
5
6
7 8 9
7 8 9
To Next Page
