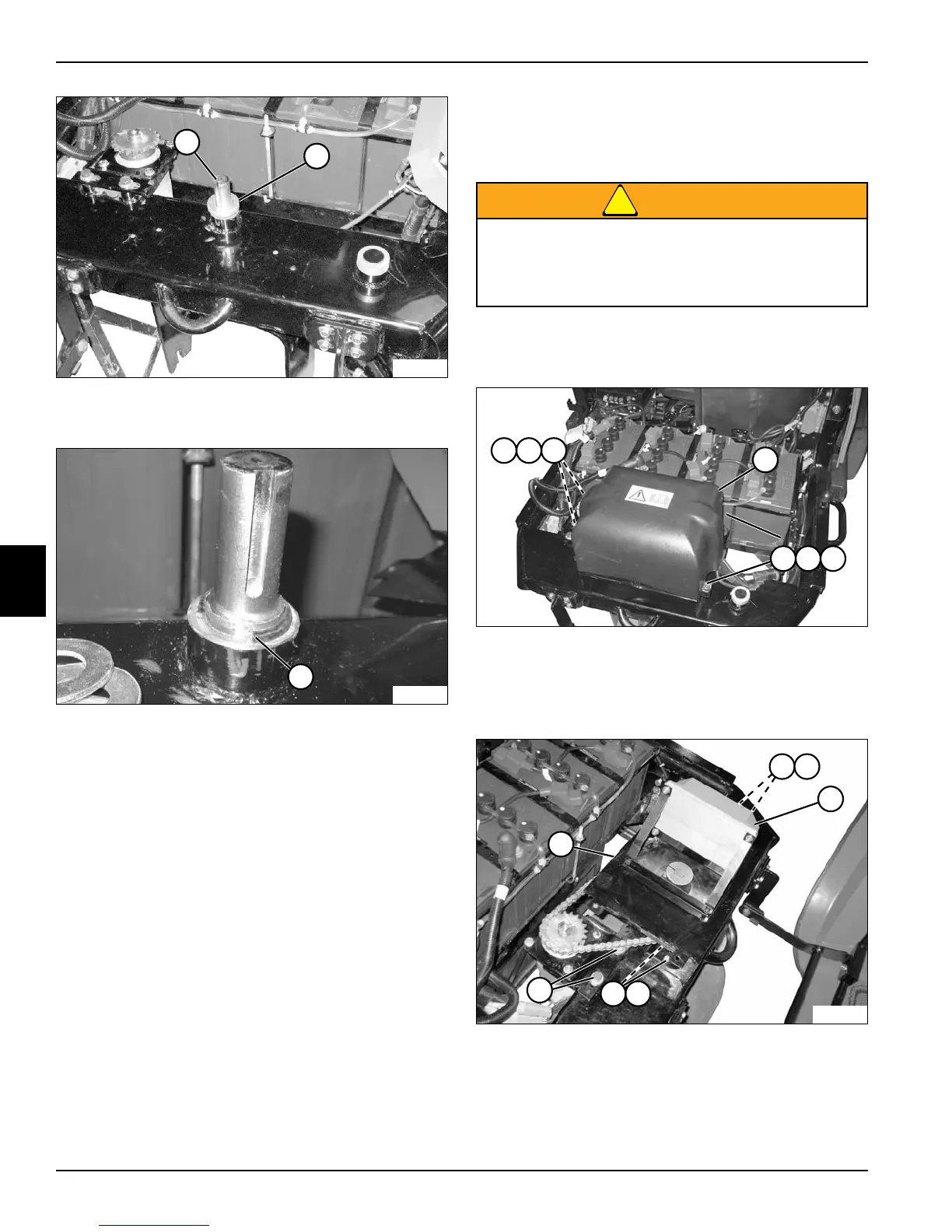

6. Remove thrust washers (3) from steering yoke (2).
Figure 5-14
7. Support steering yoke and remove retaining ring (4).
8. Lower the steering yoke from the frame.
Installation Notes
• Install steering yoke by reversing the order of
removal.
• Adjust the steering chain tension. (See “Steering
Chain Tension Adjustment” on page 5-5.)
Steering Chain and Gears
Removal and Installation
See Figures 5-15 through 5-17.
WARNING
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
Figure 5-15
2. Remove four screws (1), flat washers (2), and nuts
(3).
3. Remove SCU cover (4).
Figure 5-16
4. Remove four screws (5) and washers (6) and move
bracket (9) holding the SCU (7).
TN2387
3
2
4
TN2385
Be sure that the key switch is off, all electrical
accessories are turned off, and the 12-volt and
48-volt power connectors are disconnected
before starting work on machine.
TN2371
1 2 3
321
4
TN2369
6
5 6
5
9
7
8
