Jacobsen Eclipse 322

ELECTRICAL
4222983 Second Edition 4-133
4

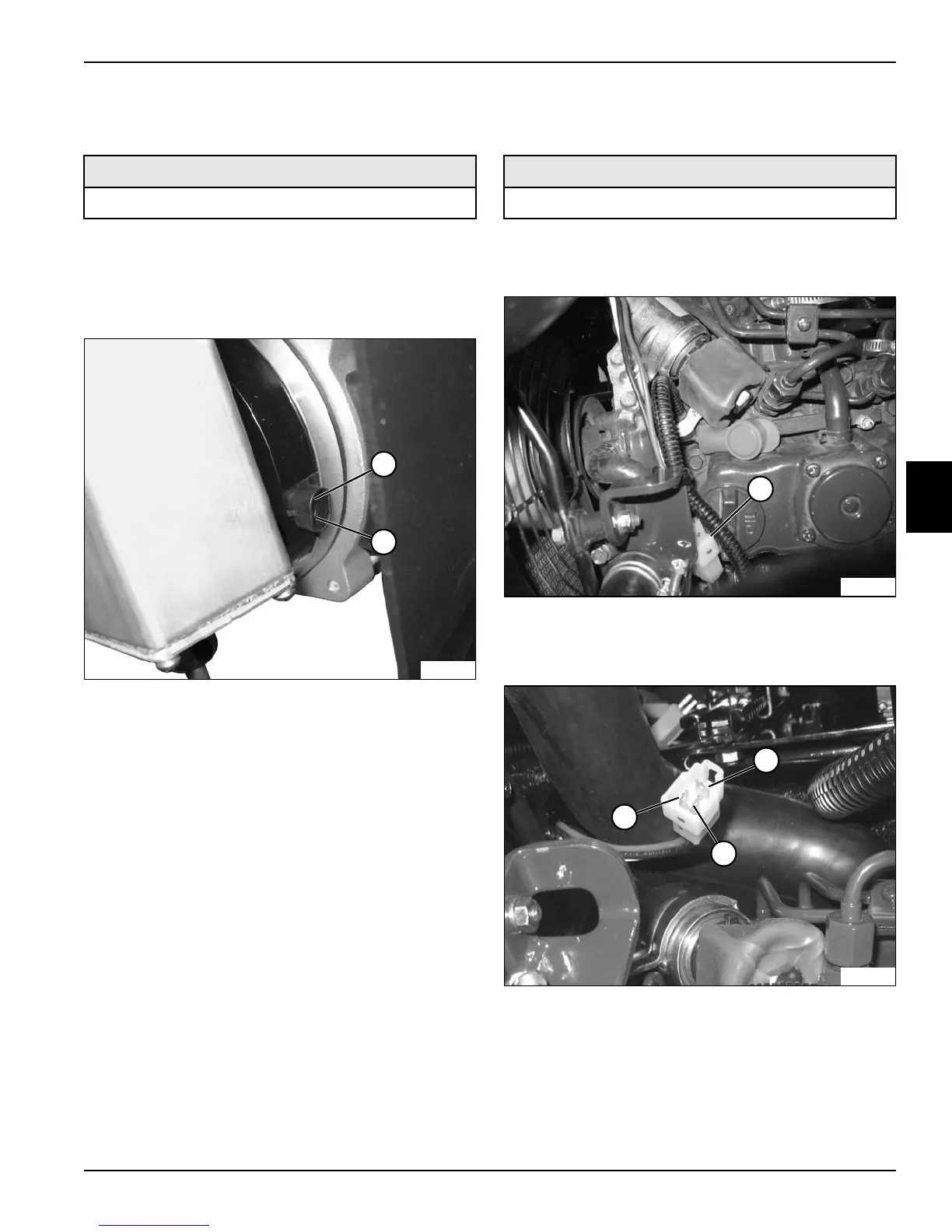

Brake Coil Test
See Figures 4-89.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Remove front splash shield. (See “Axle Shield and
Front Splash Shield” on page 5-17.)
Figure 4-89
3. Set the meter to read ohms.
4. Touch meter leads to each other and confirm a
resistance value of 0.0 ohms.
5. Measure the resistance between terminals (1 and 2).
Is the resistance value approximately 25.5 ohms
at 68° F?
YES Brake coil is good.
NO Brake coil is faulty; replace brake coil.
Fuel Shutoff Solenoid Test (Diesel)
See Figures 4-90 and 4-91.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
Figure 4-90
2. Tag and disconnect the fuel shutoff solenoid wire
connector (1).
Figure 4-91
3. Set the meter to read ohms.
4. Touch meter leads to each other and confirm a
resistance value of 0.0 ohms.
Required Tools or Equipment
Digital Multimeter or Ohmmeter
1
TN2740
2
Required Tools or Equipment
Digital Multimeter or Ohmmeter
TN2447
1
2
TN2741
3
4
