Jacobsen Eclipse 322 Repair Manual

6-30 4222983 Second Edition
CUTTING UNITS
6
Figure 6-35

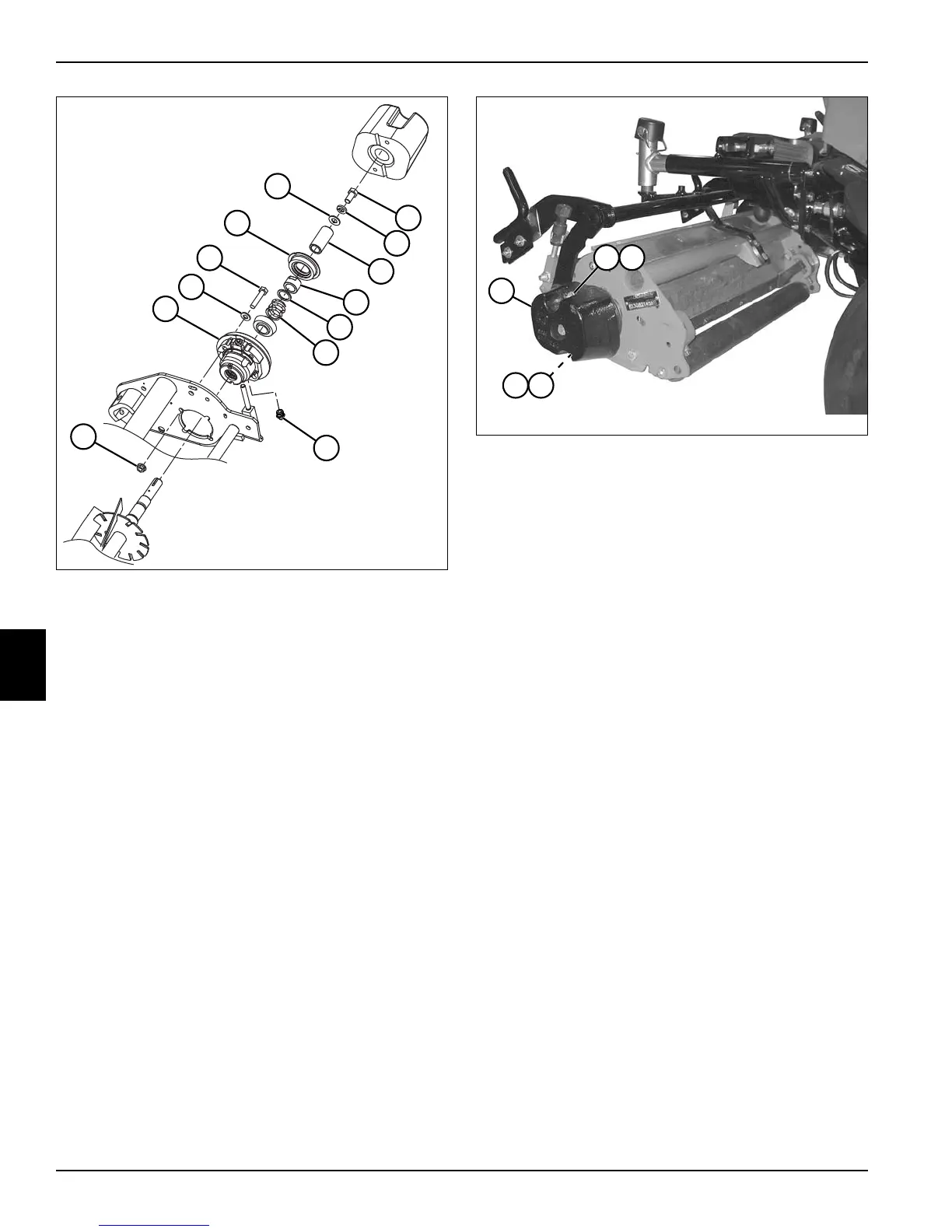

1. Install reel bearing housing assembly (9) using
bearing assembly tool (Jacobsen PN JAC5084).
2. Install spring (6), washer (5), and nut (4).
3. Install seal (12) using screws (11), washers (10) and
nuts (8).
4. Install grease fitting (7).
5. Adjust reel bearing pre-load. (See “Reel Bearing
Pre-Load Adjustment” on page 6-18.)
6. Install spacer (3), washer (13), lock washer (2) and
screw (1).
7. Adjust bedknife-to-reel clearance. (See
“Bedknife-to-Reel Clearance Adjustment” on
page 6-16.)
Figure 6-36
8. Install counterweight (14), screws (15), and washers
(16).
9. Install grass shield. (See “Grass Shield” on
page 6-25.)
10. Install cutting unit front roller. (See “Front Roller” on
page 6-31.)
11. Install cutting unit to mower. (See “Center Cutting
Unit” on page 6-24 or “Right and Left Cutting Units”
on page 6-25.)
Reel Assembly
Removal and Installation
See Figures 6-37.
1. Park the mower safely. (See “Park Mower Safely” on
page 1-6.)
2. Remove cutting unit from mower. (See “Center
Cutting Unit” on page 6-24 or “Right and Left Cutting
Units” on page 6-25.)
3. Remove bedknife backing assembly. (See “Bedknife
Backing Assembly” on page 6-26.)
4. Remove front roller. (See “Front Roller” on
page 6-31.)
5. Remove grass shield. (See “Grass Shield” on
page 6-25.)
6. Remove drive side reel bearing housing assembly.
(See “Reel Bearing Housing Assembly” on
page 6-27.)
7. Remove non-drive side reel bearing housing
assembly. (See “Removal—Non-Drive Side” on
page 6-28.)
TN1699
4
5
6
8
9
10
11
12
3
1
2
13
7
TN2650
14
15 16
15 16
